Autel MaxiFlash Pro J2534 ECU Programming Tool Works with Autel Maxisys 908/908P.
Features and Functions of Autel MaxiFlash Pro J2534 ECU Programming Device
1. Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards
2. Performs the standard PassThru J2534 functionality
3. Compatible with Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM diagnostic tools
4. Fast performance ensures quickly reprogramming even the newest vehicle controllers
5. Wireless with advanced networking functions
6. Built-in wireless and data storage
7. Rugged design capable of withstanding harsh environments
8. Upgraded via internet
Attention please!
1. MaxiFlash Pro is better to be worked with Autel Maxisys 908/ 908P.Only his way can it support more cars.
2. If you use it alone, it can only support Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM diagnostics (Need to Get the Software by Yourself)
Autel MaxiFlash Pro J2534 ECU Programming Device Specification:
Input Voltage Range: 6VDC to 26VDC
Supply Current: 350mA @ 6VDC 200mA @ 12VDC 110mA @ 24VDC
Operating Temperature: 0°C to +60°C (ambient)
Storage Temperature: -65°C to +100°C (ambient)
Dimensions: Length: 183.8 mm (7.23") Width: 135.5mm (5.33") Height: 41 mm (1.6")

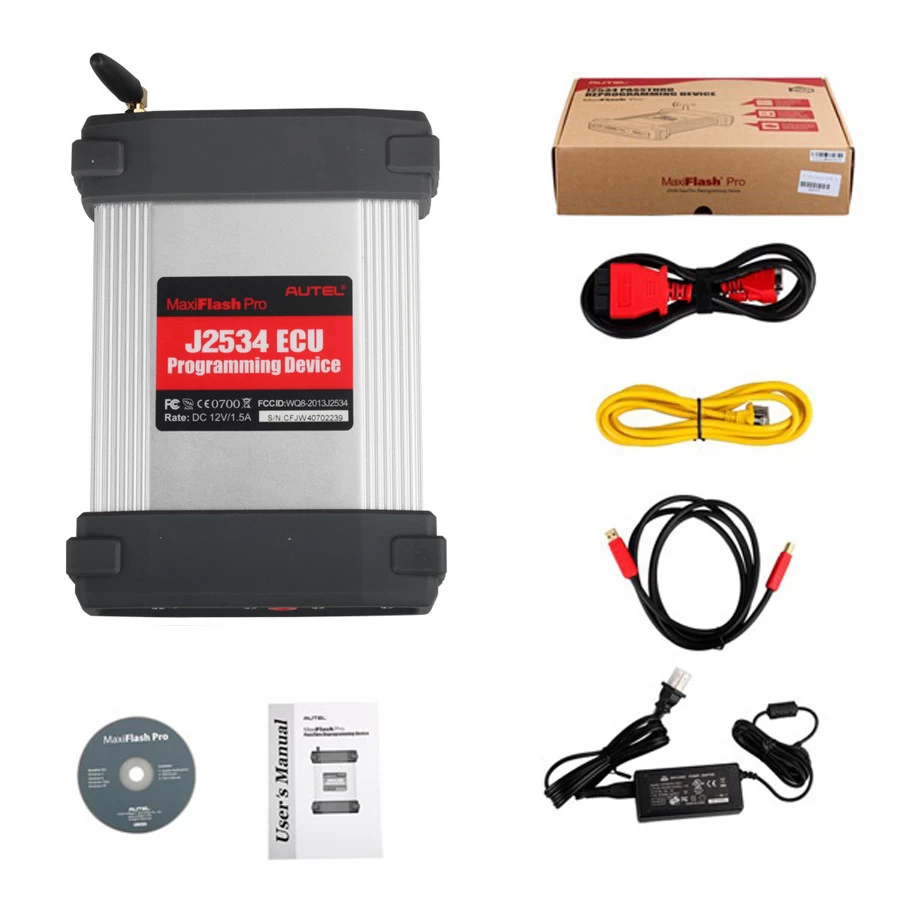

Package included the following items.
|
Item Name
|
Quantity
|
|
J2534 ECU Programming Device
|
1pc
|
|
MVCI to OBDII Cable
|
1pc
|
|
Wi-Fi Antenna
|
1pc
|
|
USB Cable
|
1pc
|
|
OBDII 16PIN Cable
|
1pc
|
|
Ethernet Serial Cable
|
1pc
|
|
AC/DC External Power Adapter
|
1pc
|
|
User's Manual
|
1pc
|
|
CD
|
1pc
|
