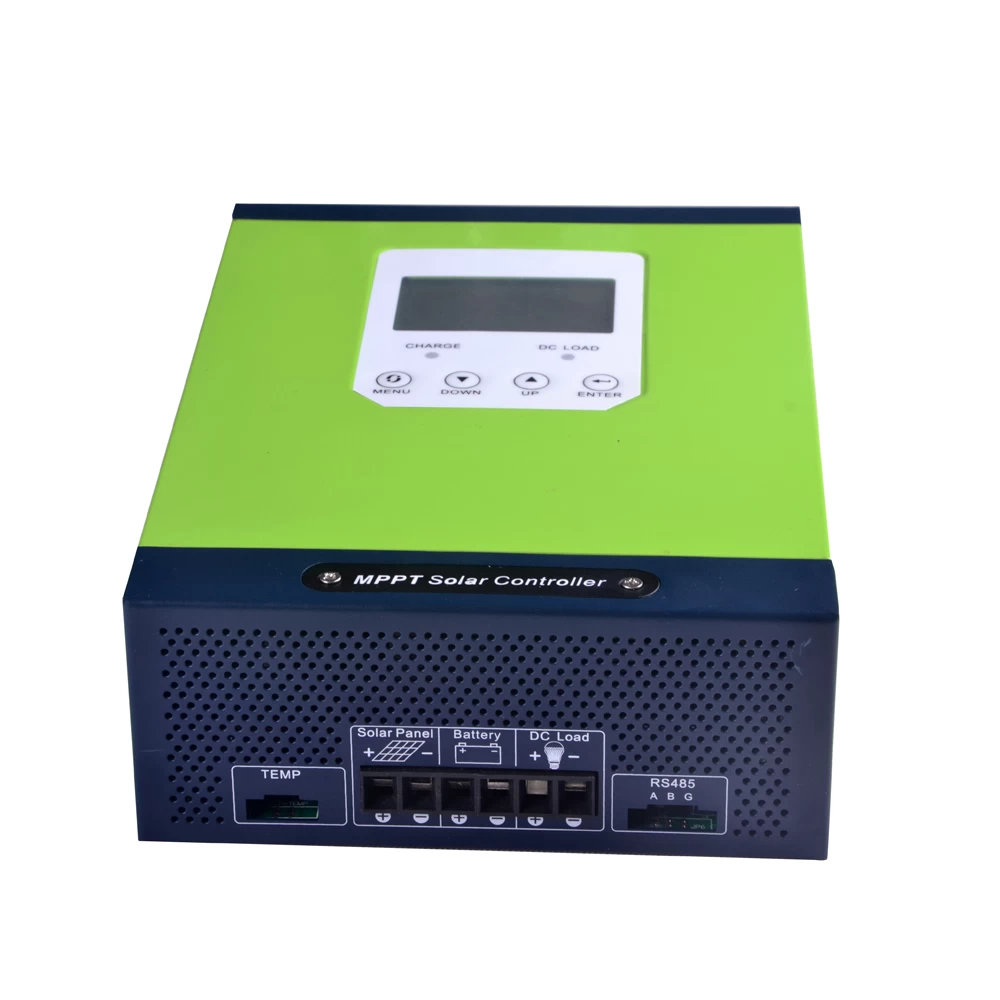

Cooperator: Guangzhou Sunnysky Solar Equipment Co., Ltd. Sunnysky solar MPPT controller is its own research and development, their own production of a new generation of intelligent MPPT solar controller, can automatically identify 12V24V36V48V voltage.
Features:
1、Display real-time power generation and current;
2、Display the daily power generation curve and current curve;

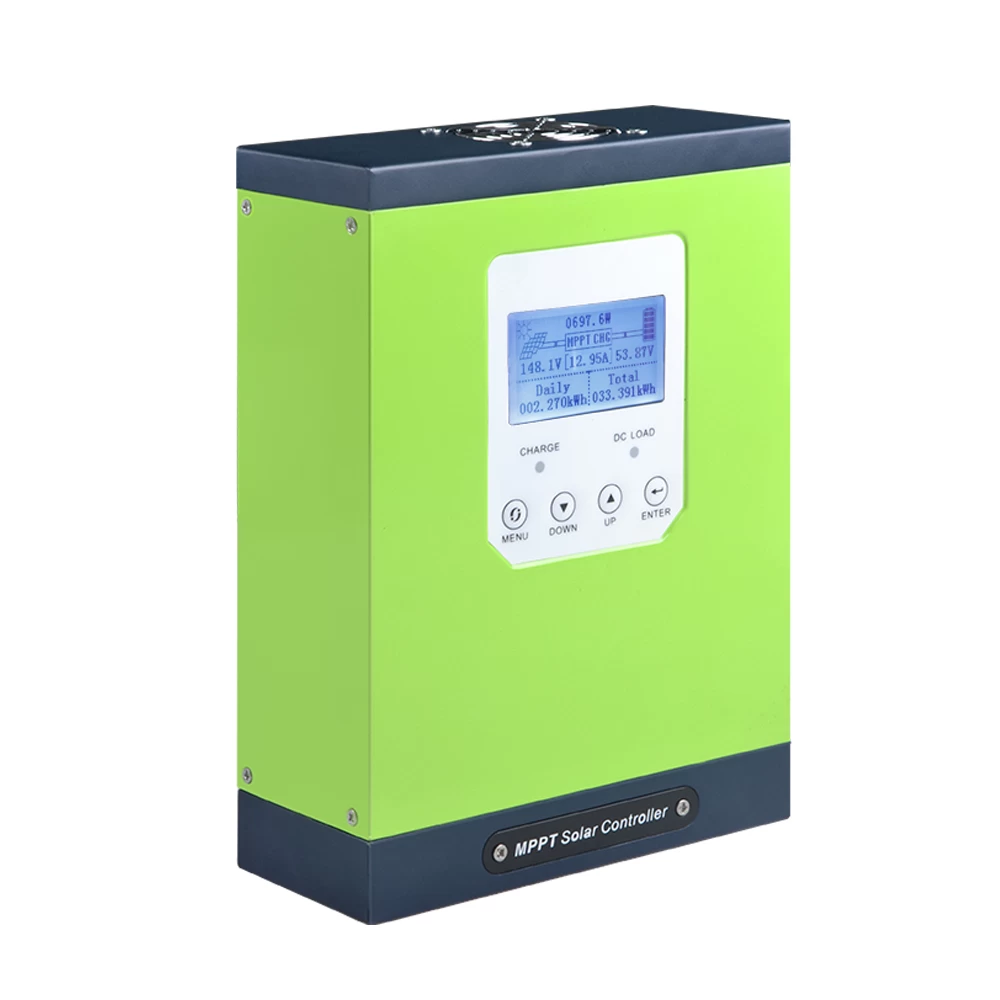

3、Chinese and English, multi-function LCD screen and operation menu;
4、Display fault records, to facilitate customer troubleshooting in a timely manner;
5、Support lead-acid batteries, colloidal batteries and lithium batteries;
6、Intelligent maximum power point tracking technology increases efficiency 25%~30%;
7、Battery temperature sensor (BTS) automatically provides temperature compensation;
8、Perfect protection function;
9、Tracking accuracy of more than 99%;
10、Ultra-fast tracking speed, tracking 1 times per second.
|
Model
|
TYC-20IR
|
TYC-30IR
|
TYC-40IR
|
TYC-50IR
|
TYC-60IR
|
|
Rated voltage
|
12/24/48V Auto
|
|
Rated current
|
20A
|
30A
|
40A
|
50A
|
60A
|
|
Maximum protection current
|
22A
|
32A
|
42A
|
52A
|
62A
|
|
Battery voltage identification range
|
12V(DC9-DC15V)； 24V(DC18-DC30V)； 48V(DC36-DC60V）
|
|
MPPT Operating voltage range
|
12V (DC18V~DC150V)；24V(DC34V~DC150V); 48V(DC65V-150V)
|
|
Maximum PV input power
|
12V280W
|
420W
|
570W
|
700W
|
900W
|
|
24V550W
|
840W
|
1130W
|
1400W
|
1700W
|
|
48V1100W
|
1650W
|
2270W
|
2800W
|
3400W
|
|
PV input low voltage protection point
|
12V:DC16V; 24V:DC30V; 48V:DC60V
|
|
PV input low pressure recovery point
|
12V:DC18V; 24V:DC34V; 48V:DC65V
|
|
Limit input voltage
|
DC160V
|
|
PV input overvoltage protection point
|
DC150V
|
|
PV input overvoltage recovery point
|
DC145V
|
|
Static power consumption
|
≤2 W
|
|
Machine efficiency
|
≥9 6 . 5 %≤9 9 %
|
|
PV module utilization
|
≤9 9 %
|
|
Float voltage (can be customized)
|
12V：13.75V； 24V：27.5V； 48V：55V
|
|
Average charge voltage(can be customized)
|
12V：14.2V； 24V：28.4V； 48V：56.8V
|
|
Recommended PV module voltage
|
12V:(18V-60V); 24V:(36V-72V); 48V:(72V-144V)
|
|
Temperature compensation
|
-3mV℃/2V
|
|
Temperature protection
|
90℃
|
|
Temperature rise protection
|
8 5 ° C or more to reduce power output
|
|
Protective function
|
PV array short circuit, overvoltage, overcurrent reverse polarity
protection, battery overcharge, reverse protection
|
|
Working temperature
|
-35℃ to +55℃
|
|
Humidity
|
0~90%RH (Not condensation)
|
|
Altitude
|
0~3000m
|
|
Security Level
|
CE、PSE、FCC、EMC
|
|
Mechanical protection class
|
IP21
|
|
Colour
|
Apple green (customizable)
|
|
Product Size
|
218*154*65MM
|
250*180*75MM
|
|
Weight
|
2KG
|
3KG
|
|
