Auto 18650 26650 32650 21700 Cell Cases Sealing Machine for
Cylindrical Battery Casings Crimping

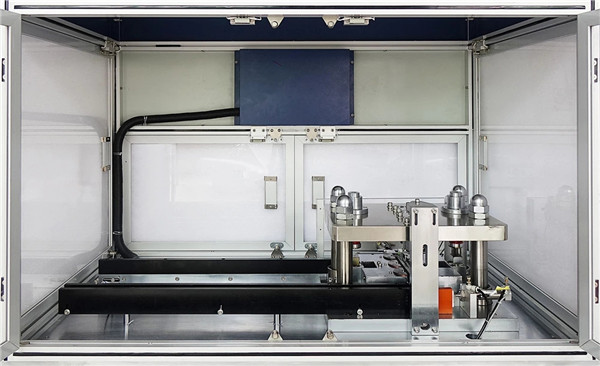

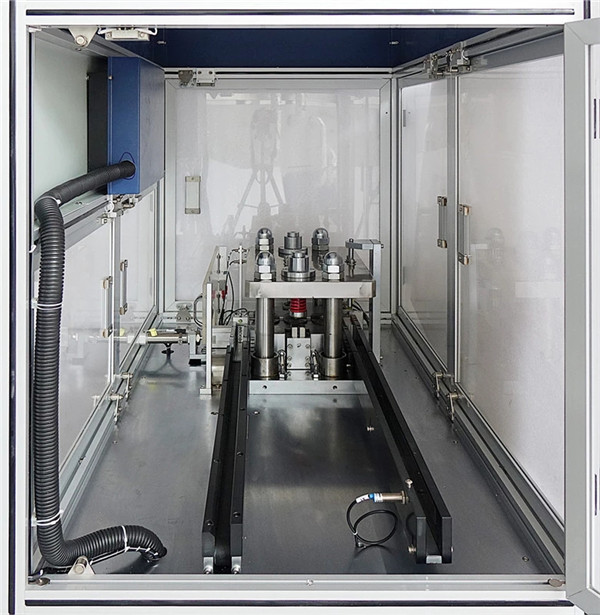

It is an auto crimper designed for sealing the cylindrical battery cases. It provides a continues workflow for case batch loading - crimping - case unloading without dedicated labor.
Advanced Features:
· Efficient batch loading/unloading mechanism with case feeding conveyor
· Dedicated Four-step crimping process (1st & 2nd trials for pre-deformation, 3rd trial for complete sealing and 4th trial for case consolidation) ensures the most stable & consistent sealing quality
· Crimping speed and pressure is adjustable
· User-friendly human-machine interface with PLC touch screen control

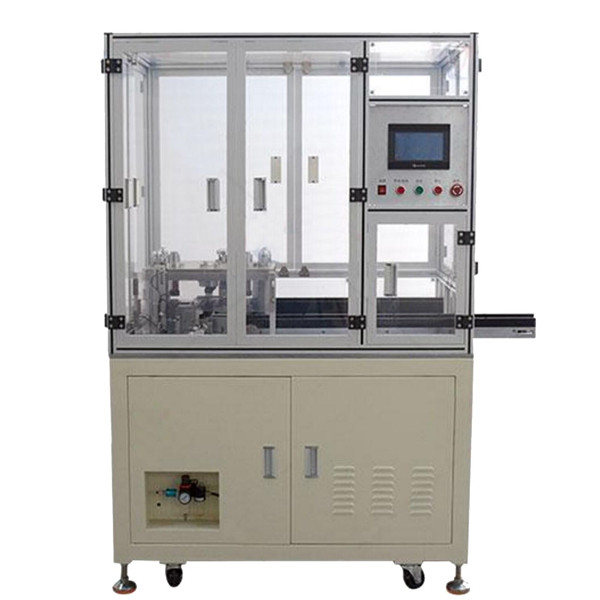

· Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment
Specifications：
|
Working Voltage
|
110/220V AC, 50/60Hz, three Phase
|
|
Max. Power Consumption
|
4KW
|
|
Driving Force
|
Penumatic, 0.5 - 0.8 MPa compression gas is required
|
|
Compatibility
|
Standard crimping capability for 18650 case
Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.
|
|
Control
|
User-friendly HMI with PLC touch screen control ensures easy program setup
|
|
Crimping Force
|
Upto 6kgf/cm²
|
|
Productivity
|
· 30 pieces per minute
· Material feeding conveyor is able to load upto 22 pcs per batch
|
|
Warranty
|
· One year limited with lifetime support
· Parts rusted without regular cleaning and maintenance are not covered
|
|
Product Dimensions
|
W1200mm*D690mm*H1765mm
|
|
Net Weight
|
800 lbs
|
