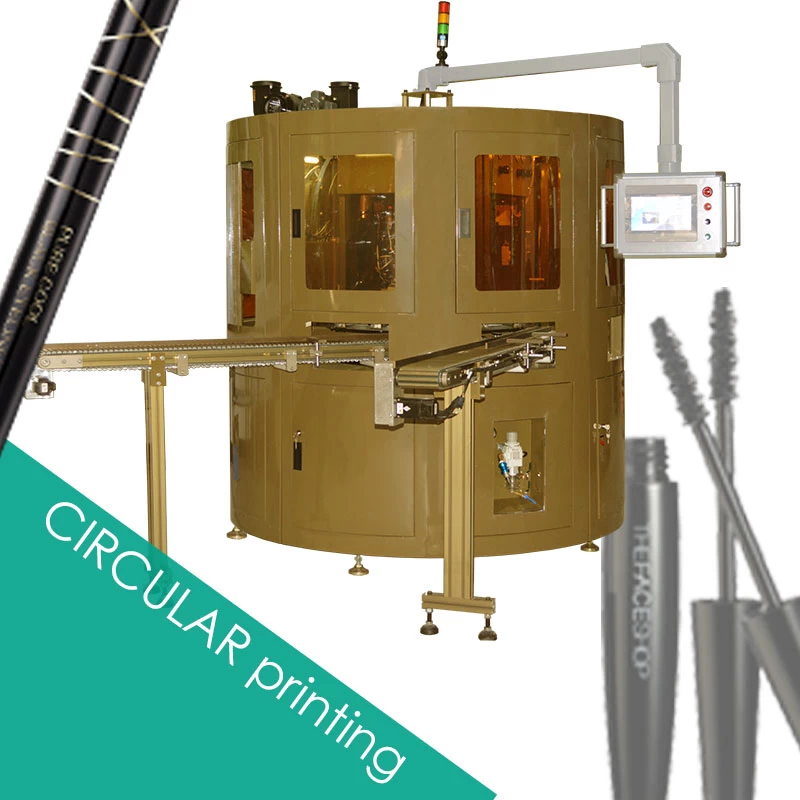

AUTO CIRCULAR SCREEN PRINTING & HOT-STAMPING ALL-IN-ONE MACHINE
◆ Adopts high precision guiderail and servo system, increasing the printing precision and stability. Advanced module PLC and touch screen control, easy and convenient adjustment, high level automaticity , easy and fast configuration setting, readily realize man-machine interaction.
◆ This machine combines mechanical and pneumatic driving, adopts photoelectric sensor to control spacing; operates stably and reliably, assures high printing precision and quality.
◆ It has automatic detection for low air pressure alarm and overload capacity, so as to assure machine running continuity and stability.
Technical Data
Model: SF-ARP28
Product Size:φ（8-30）x（40x130)mm
Max. Speed:45pcs/min
Air Pressure: 5-7bar
Power:AC380V 50/60Hz 12Kw
Dimensions:1700x1700x2100mm

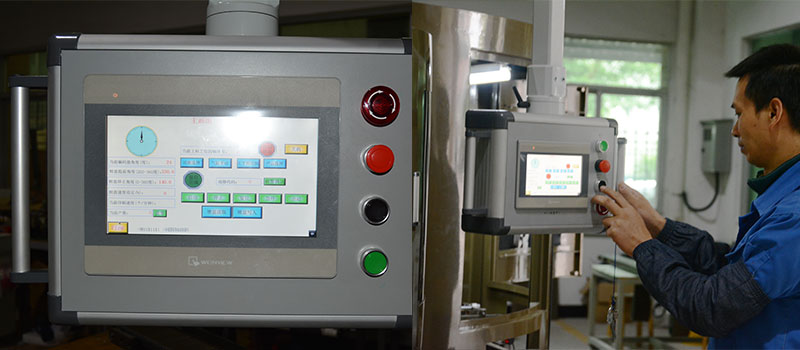

PLC convenient to set up
For different products, just need to input the corresponding parameters. It can greatly reduces the workload of the debugger.

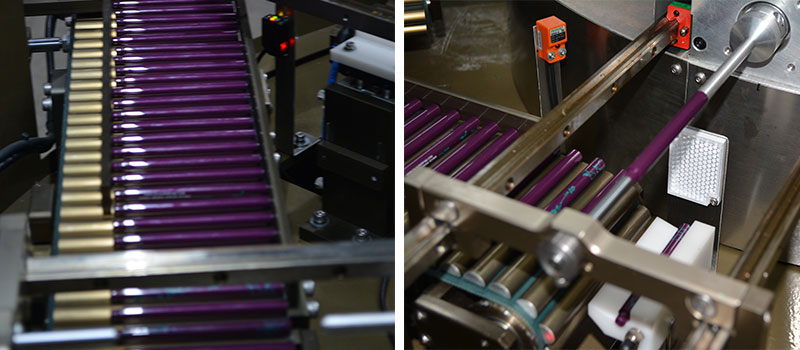

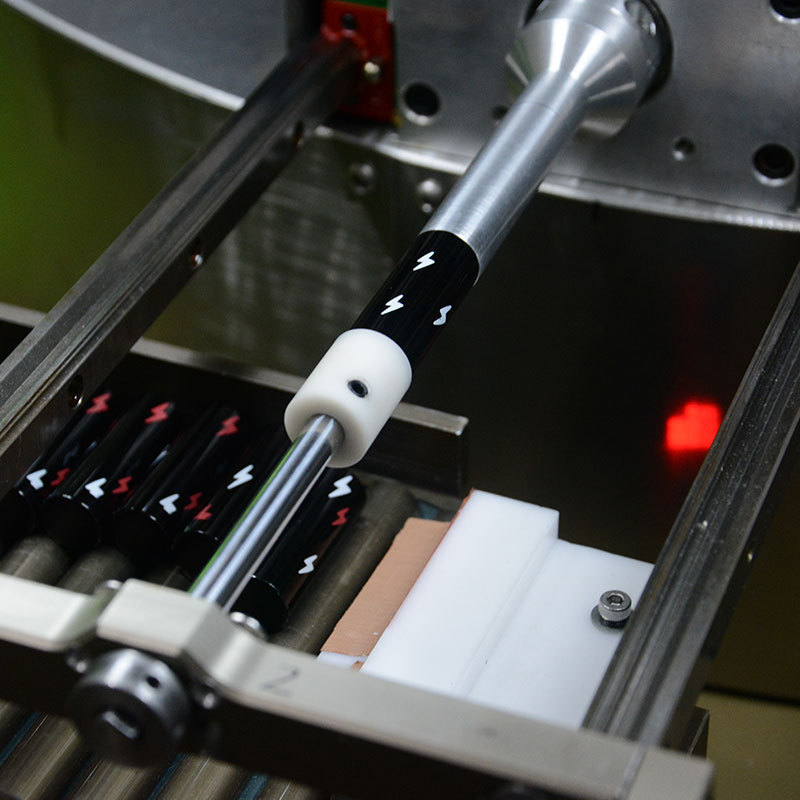

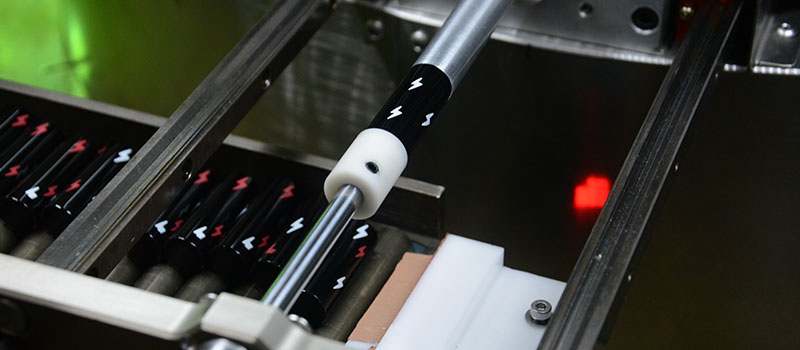

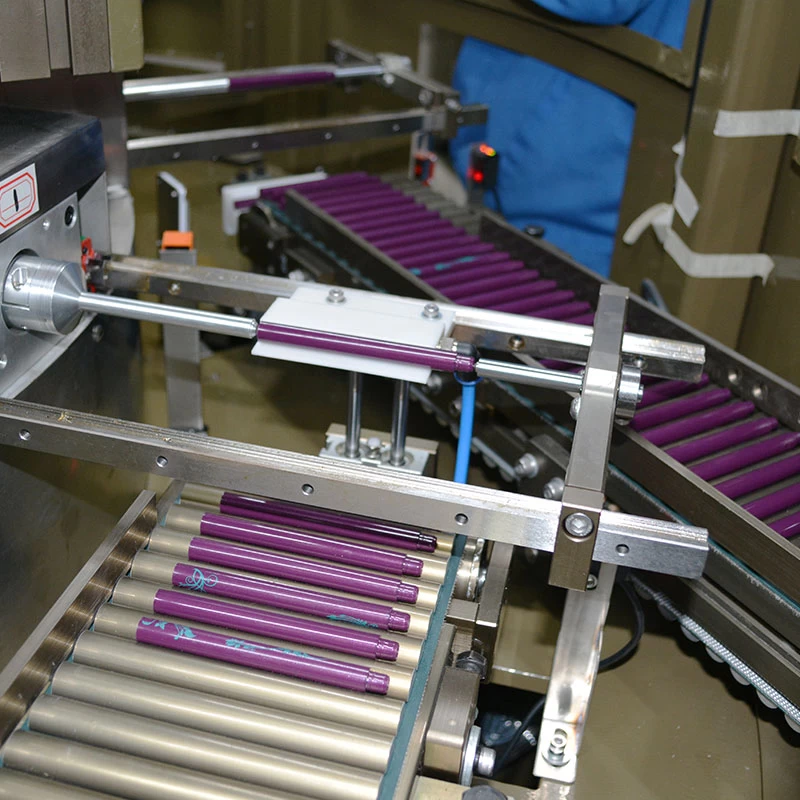

Loading And Unloading Device
Use the loading and unloading conveyer belt to avoid the friction and scraping of the products

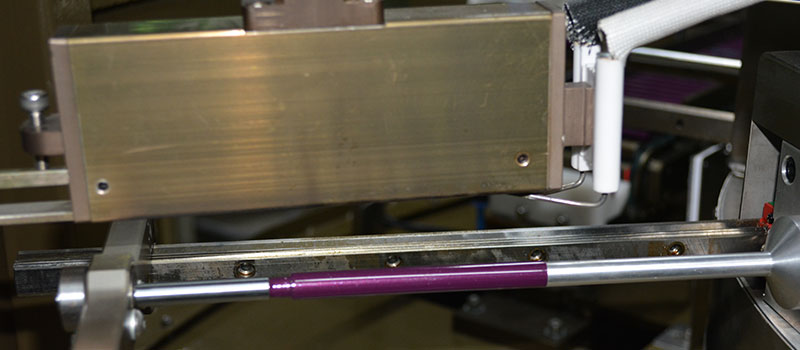

Flaming System

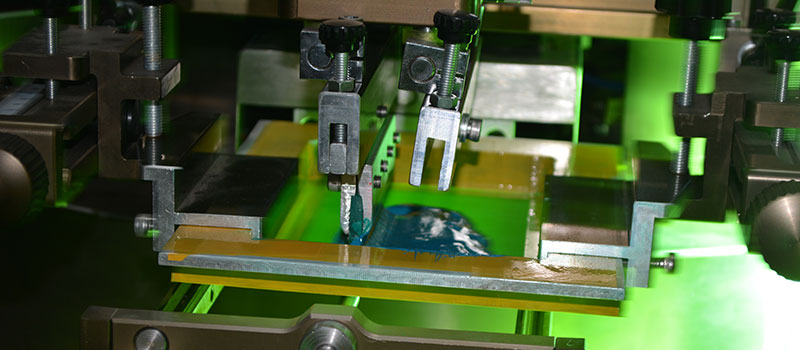

The mesh frame uses the servo motor control, the screen printing precision is higher and more accurate

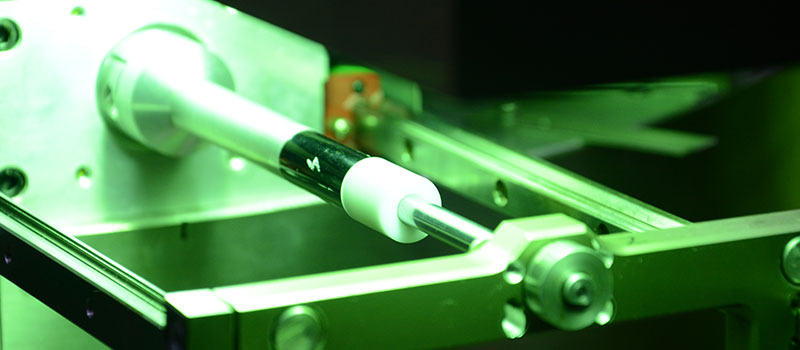

After each color printing finished,the product go into independent UV oven curing
Printing samples
