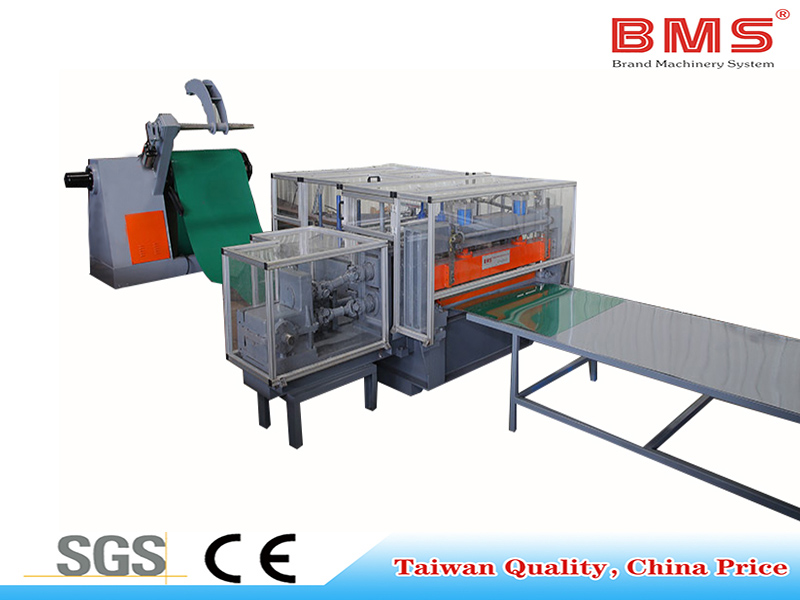

AUTO Cut To Length Line Machine(Taiwan Type)

Cut to length line machine with leveling,slitting and cutting function.



AUTO Cut To Length Line Machine(Taiwan Type)



Click Here To View The Video


Cut To Length Line Machine



The Feature Of The Machine


1.Automatically forming and cutting at any length with pre-set quantity
2.Signal feedback from encoder showing length of product
3.The control panel enables to count a total length of finished coil
4.Rollers are alloy steel fabricated by CNC precision machine and hard chromium plated
5.Cutting die is SKD11 steel fabricated by CNC machine, thermal treatment get 55-60HRC


Work Follow

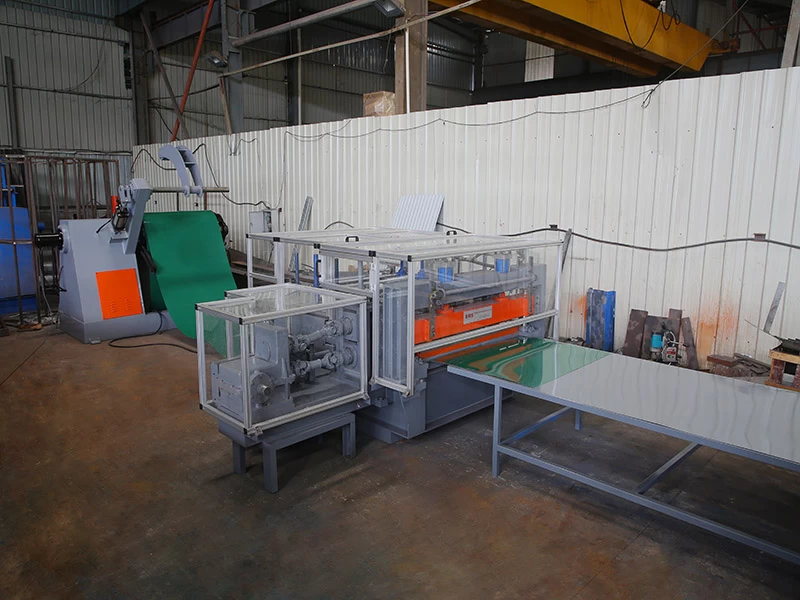

Decoiler→Feeding Guide Device→Leveling Device→Slitting DeviceHydraulic Post Cutting →Run Out Table


AUTO cut to length line machine


Machine Components

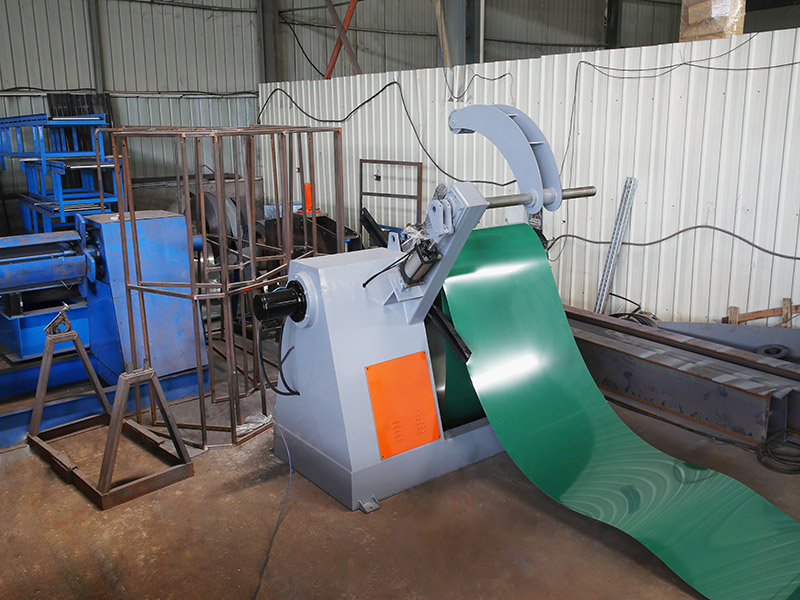

1) Hydraulic Decoiler: one set

Hydraulic control steel coil inner bore shrinkage and stop
Max Feeding width: 1300mm,coil ID range 508mm±30mm
Capacity: Max. 5 Ton


Cut To Length Line Machine

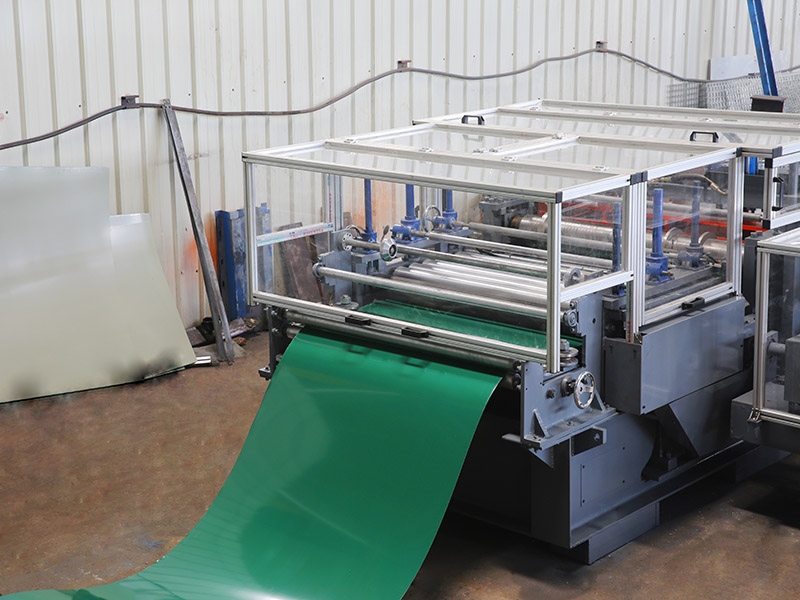

2) Main Machine

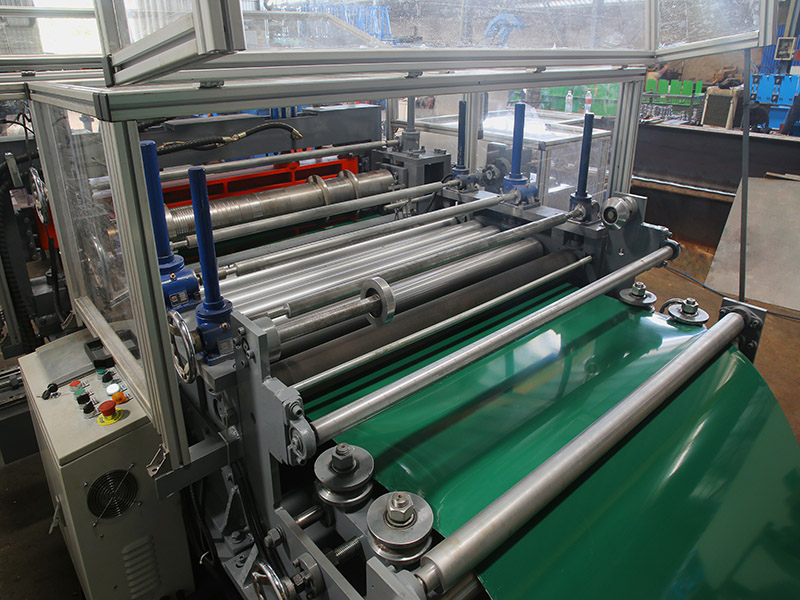

Up Four down Five totally Nine shafts leveling device
With rubber rolling feeding device,body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Shafts manufactured from 45# steel,Diameter=φ105mm,Tone plated with hard chrome Coated,precision machined


Cut To Length Line Machine


Cut To Length Line Machine

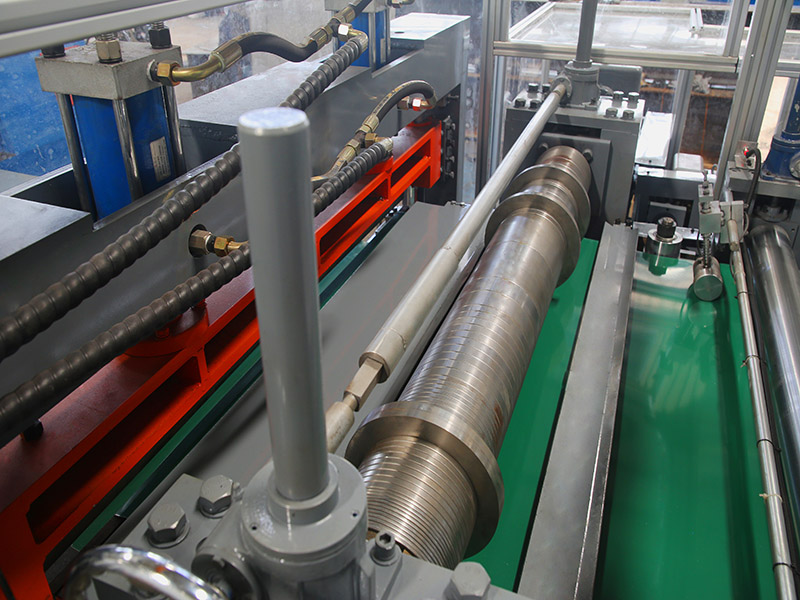

With slitting function(4 slitter,slitting thickness:2mm)
Side wall thickness: Q235 t40mm
Slitting Shaft manufactured from 45# steel,Diameter=φ120mm
Slitting Knife material Cr12MoV(= SKD11 with at least one million times of cutting life)
Heat treatment to HRC58-62 degree
Tone plated with hard chrome Coated,precision machined


Cut To Length Line Machine


Cut To Length Line Machine




With rubber rolling feeding device
With Leveling function
With slitting function
With shearing function
Line speed:15-20m/minute

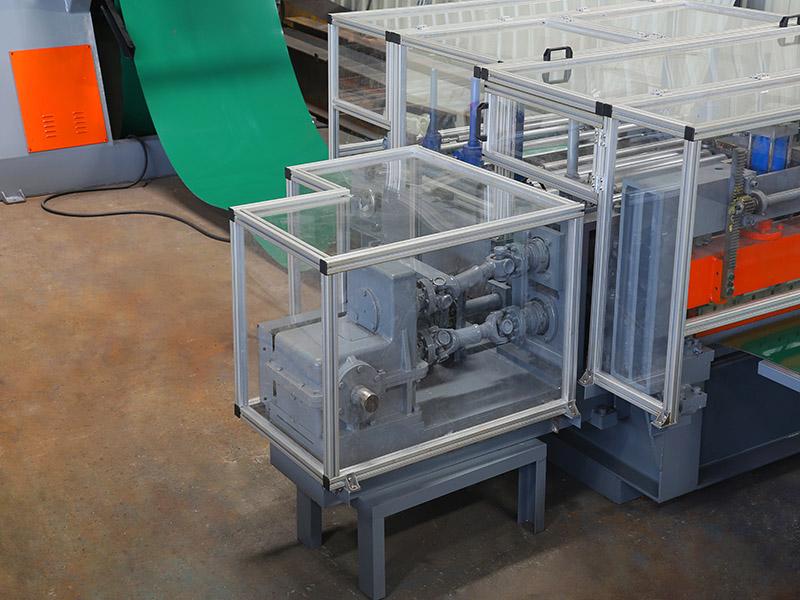

Main machine motor:7.5KW+5.5KW

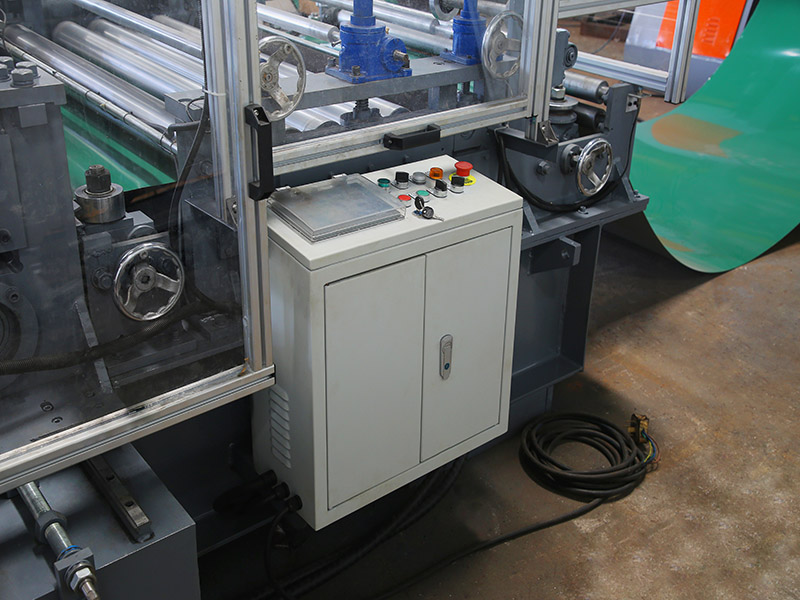

With PLC control system



Cut To Length Line Machine

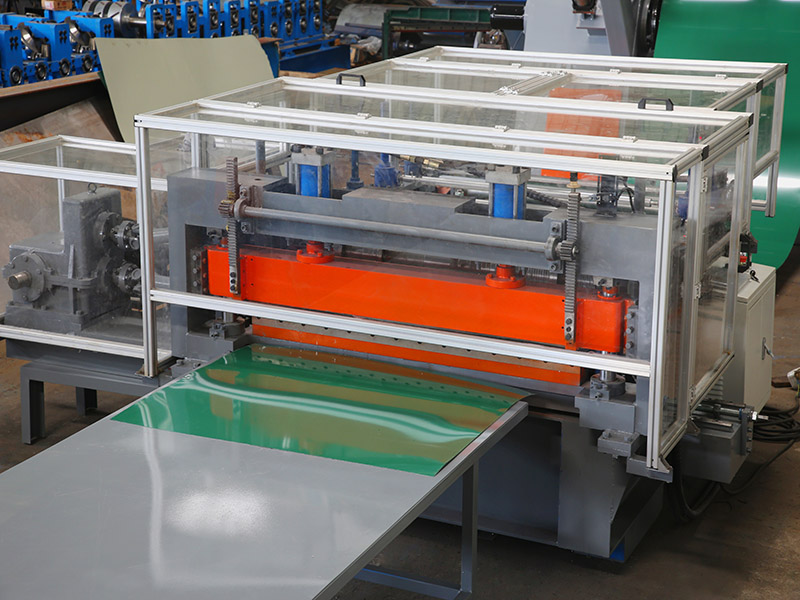

3) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor:5.5KW ;Cutting pressure: 0-14Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station


Cut To Length Line Machine



4)Exit Rack

Un-powered, One unit


Cut To Length Line Machine



Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.





After-Sale Service

1. The warranty is 24 months after the client receives the machine.
   Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost


Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
