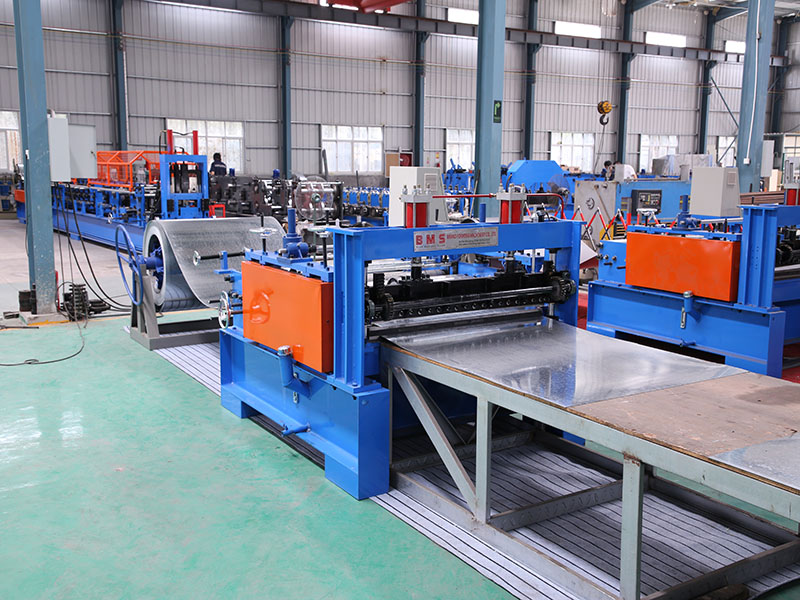

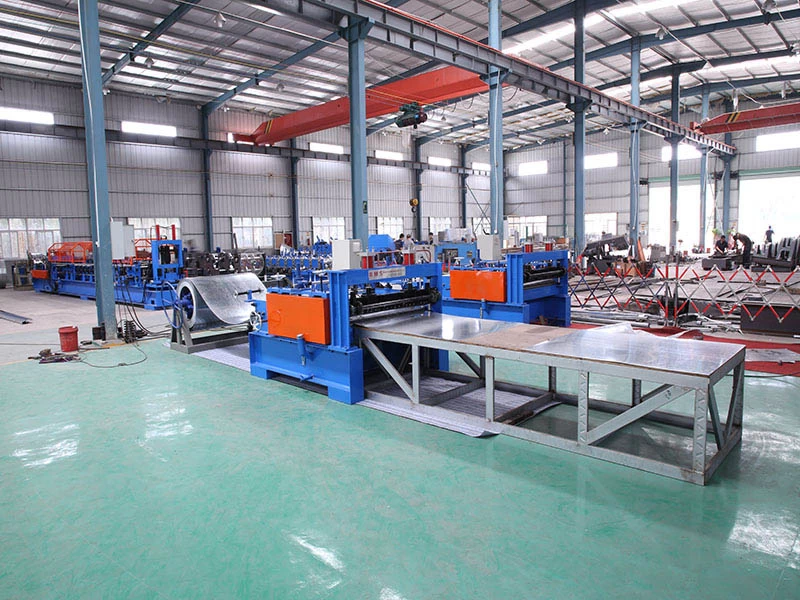

AUTO Cut To Length Line Machine

Click Here To View The Video

The Feature Of The Machine

1.Automatically forming and cutting at any length with pre-set quantity
2.Signal feedback from encoder showing length of product
3.The control panel enables to count a total length of finished coil
4.Rollers are alloy steel fabricated by CNC precision machine and hard chromium plated
5.Cutting die is SKD11 steel fabricated by CNC machine, thermal treatment get 55-60HRC

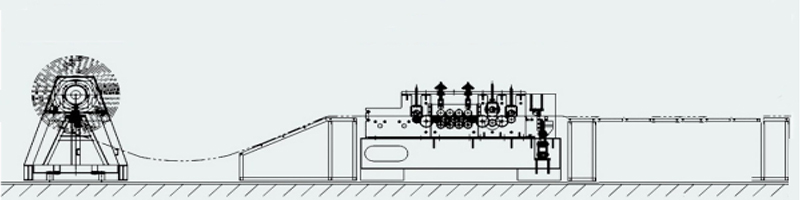

Work Follow

Decoiler→Feeding Guide Device→Leveling Device→Slitting Device→Hydraulic Post Cutting →Run Out Table

Machine Components

1) Manual Decoiler: one set

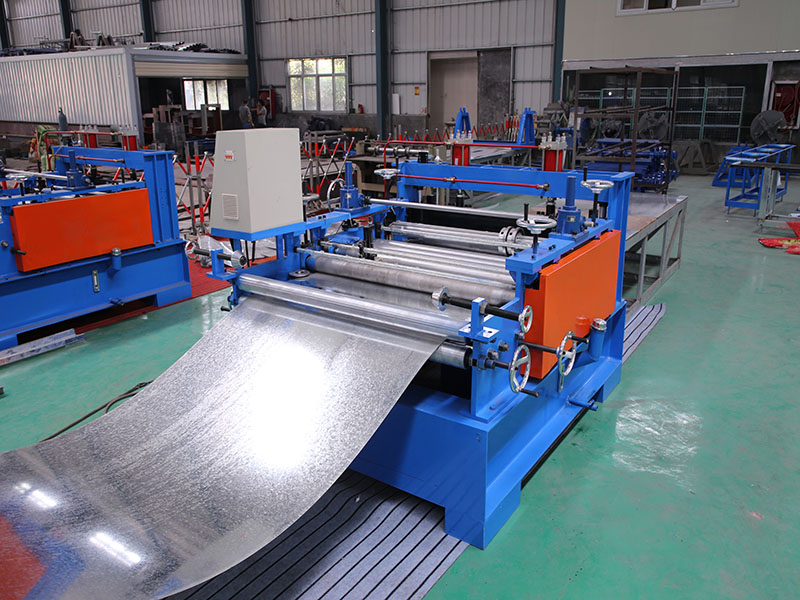

2) Main Machine

Up Four down Five totally Nine shafts leveling device
Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Shafts manufactured from 45# steel,Diameter=φ90mm,Tone plated with hard chrome Coated,precision machined

Side wall thickness: Q235 t20mm
Slitting Shaft manufactured from 45# steel,Diameter=φ100mm
Slitting Knife material Cr12MoV(= SKD11 with at least one million times of cutting life)
Heat treatment to HRC58-62 degree
Tone plated with hard chrome Coated,precision machine
With rubber rolling feeding device
With Leveling function
With slitting function
With shearing function
Line speed:12-16m/minute
Main machine motor:5.5KW+5.5KW

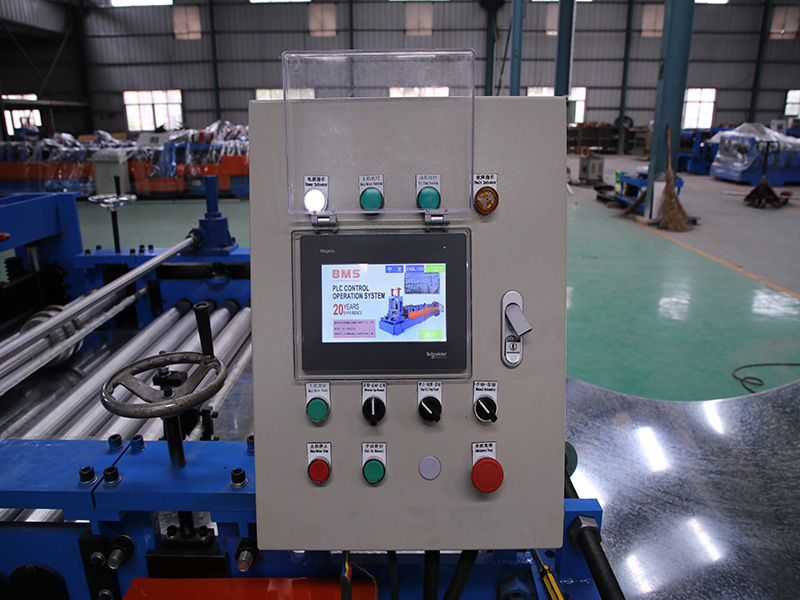

With PLC control system

3) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor:5.5KW ;Cutting pressure: 0-14Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station

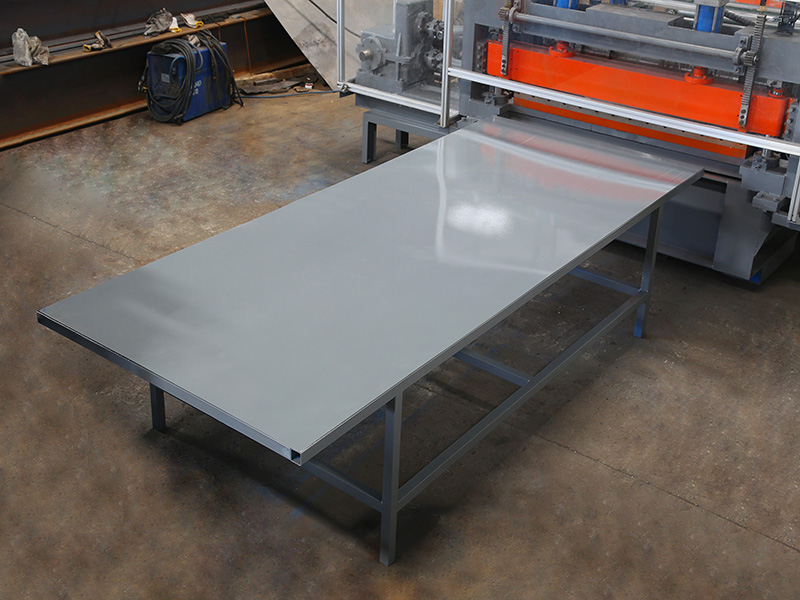

4)Exit Rack

Un-powered, One unit

Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

After-Sale Service

1. The warranty is 24 months after the client receives the machine.
   Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost

Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
