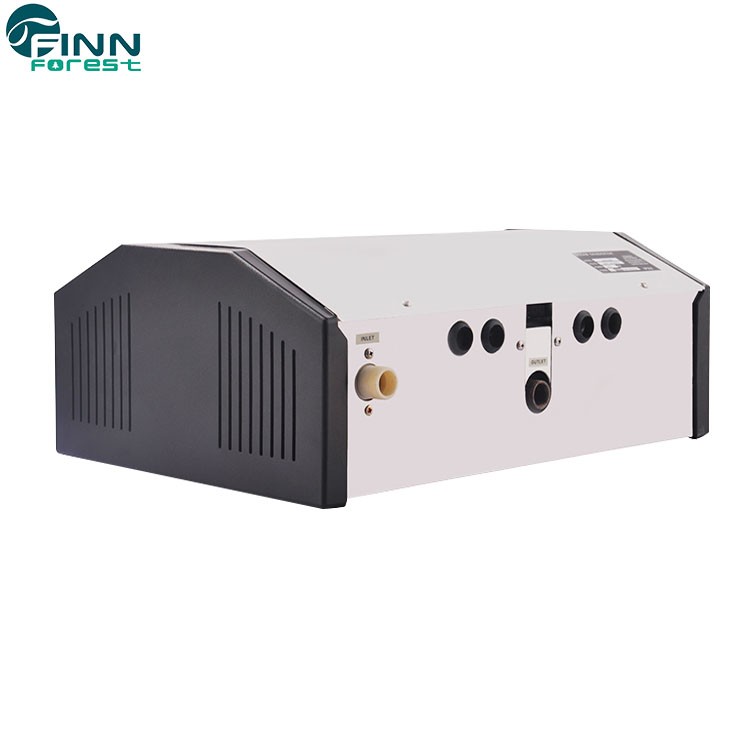

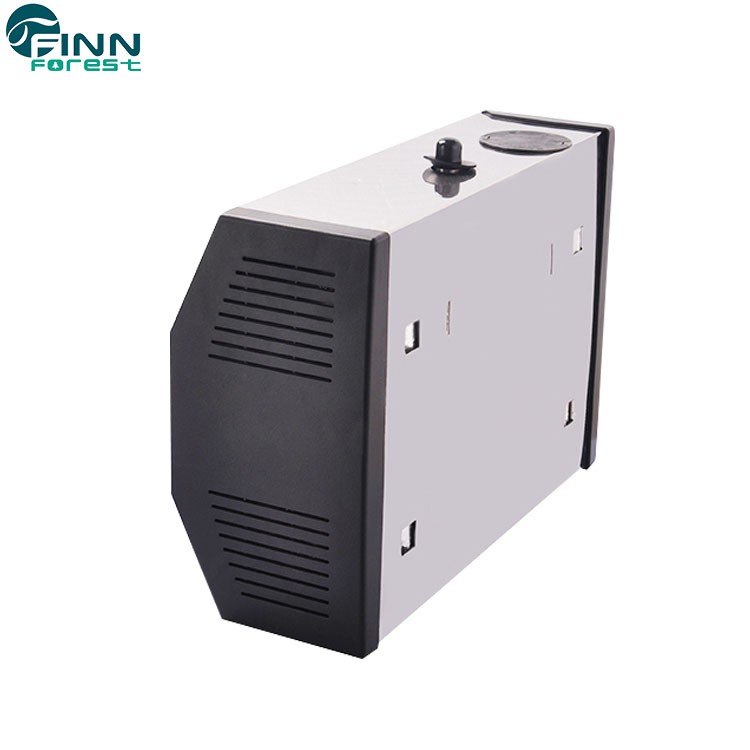

Auto Drainage 9KW Sauna Steam Generator Factory
The sauna steam generator is a compact functional device designed to generate moist warm steam in a bath. It can function in tandem with a traditional heater or independently of heating equipment.The sauna steam generator eliminates the need to constantly add water to hot furnace stones to maintain the optimal level of humidity and heat in the bath. When a few minutes after switching on, the device automatically generates steam.

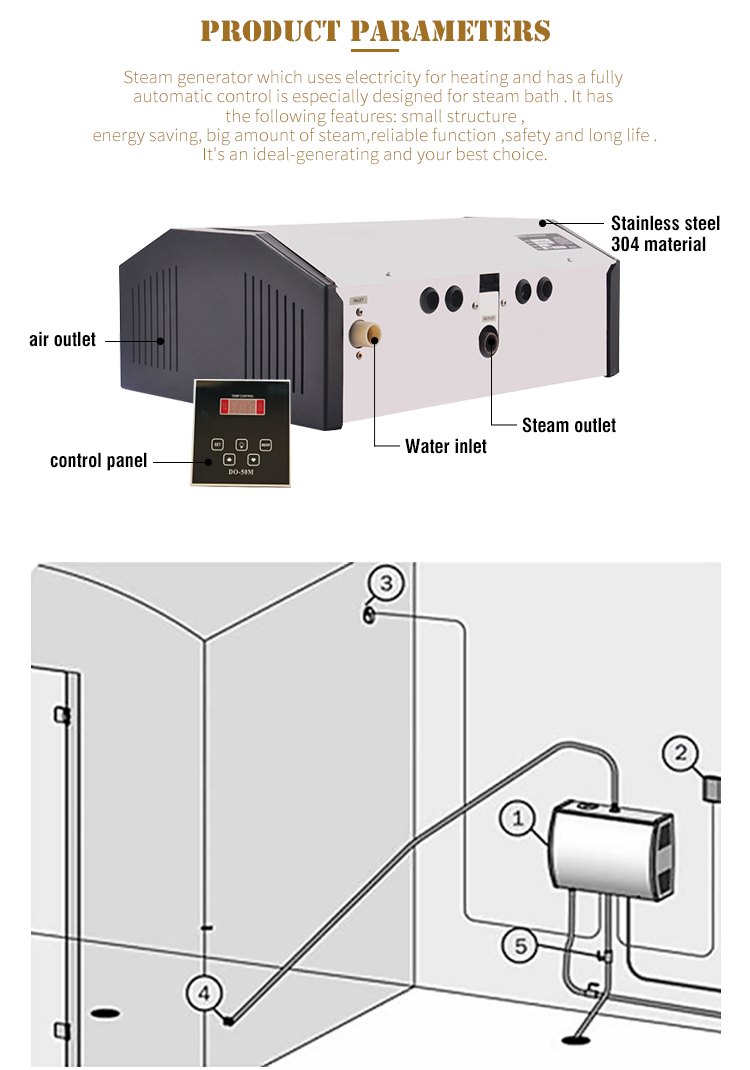

Sauna Steam generator Product Parameter:
| Model |
Power（KW） |
Voltage（V） |
Room（m3） |
Package Size（mm） |
| LAN-30 |
3 |
220/380 |
2-4 |
630*520*320 |
| LAN-45 |
4.5 |
220/380 |
4-5 |
| LAN-60 |
6 |
220/380 |
5-7 |
| LAN-90 |
9 |
220/380 |
7-9 |
| LAN-105 |
10.5 |
380 |
9-10 |
| LAN-120 |
12 |
380 |
10-13 |
Parts Equipped With Sauna Steam Generator:
With CE and SGS, TUV certified
Auto Drain Function( Customize)

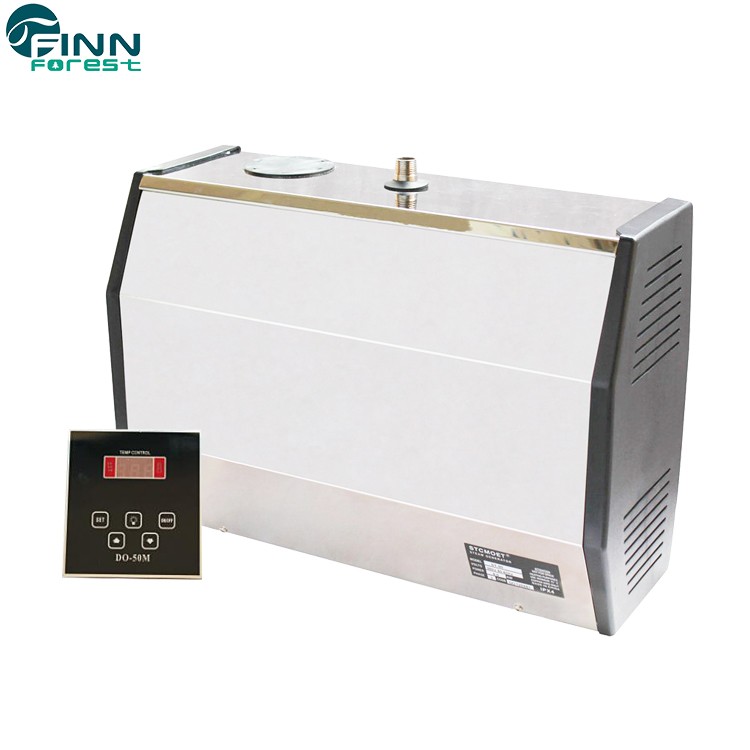

Latest digital controller (see pics, this is the latest and best one made)
Safety cut-out and on/off timer Wall-mountable

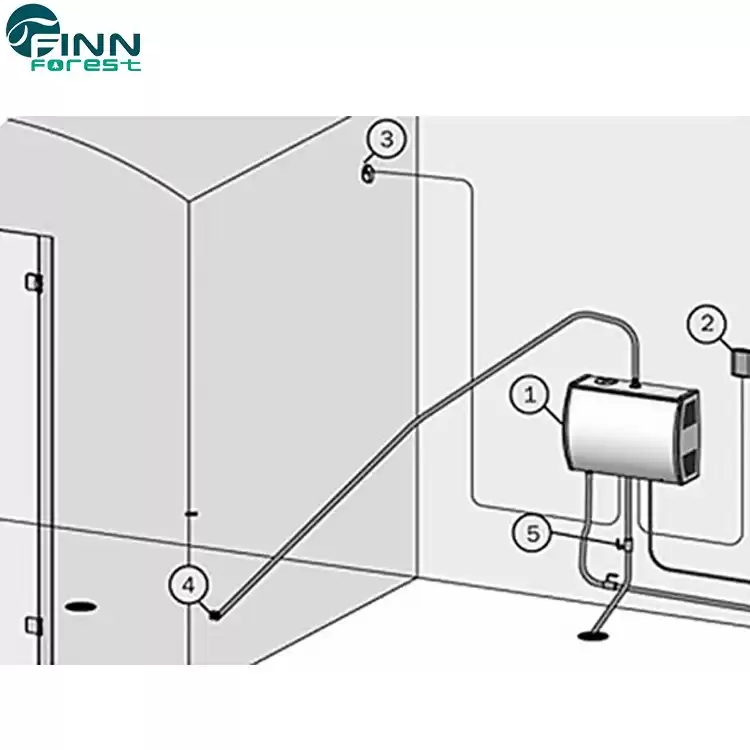

Comes with comprehensive installation instructions and troubleshooting guide
Application Field:
Sauna Steam Generators can use for Family, Hotel, Sauna SPA center, Leisure Center and so on. With function of Relax, Refresh, Expulsion of Toxin, Cosmetology, Lose Weight, Beautifying and so on.
Steam water tank, the electrode plate spray or stainless steel shell is anti-corrosive and durable.
When equipped with ST-133 panel, both the remaining working time and room temperature will be displayed on the panel. You could set temperature to the range of 35-55 C(95-131 F), and working time to 60~480minutes.
Sauna Steam Generator Feature:
1）Working Time setting :30 minutes to 8 hours
2）Temperature setting: 35-55C (95-131F)
3）Protection of water shortage
4）Over-high temperature protection
5）Over-high pessre proectin,prevent tank trom expanding,in the case steam headhas beenblocked
6）Light system control
7）Long distance signal rarsnission,th longest distance can be 50m
8）The tank material is 304# stainless steel
9）New steam nozzle prevent user from scald
10）The universal wire connection
11）New strong draining system,and auto-back flush,wipe outscale completly，enlarge the service life extremely
12）The uique dual protection, water inflow once power on,so that prevent heating element from dry burning at beginning
