Auto feeding webbing laser cut machine with camera is for cutting whole roll webbing trademark woven label. The camera is optional. If the webbing has printed pattern, can choose the camera model. There are two kinds of feeding table, one is simple with roller to feed the webbing, another is feeding chain, suitable for thick These woven label laser cutting equipment devices provide high precision cutting and have different features that enhance their performance. A high-quality woven label laser cutting equipment can make your work easier!

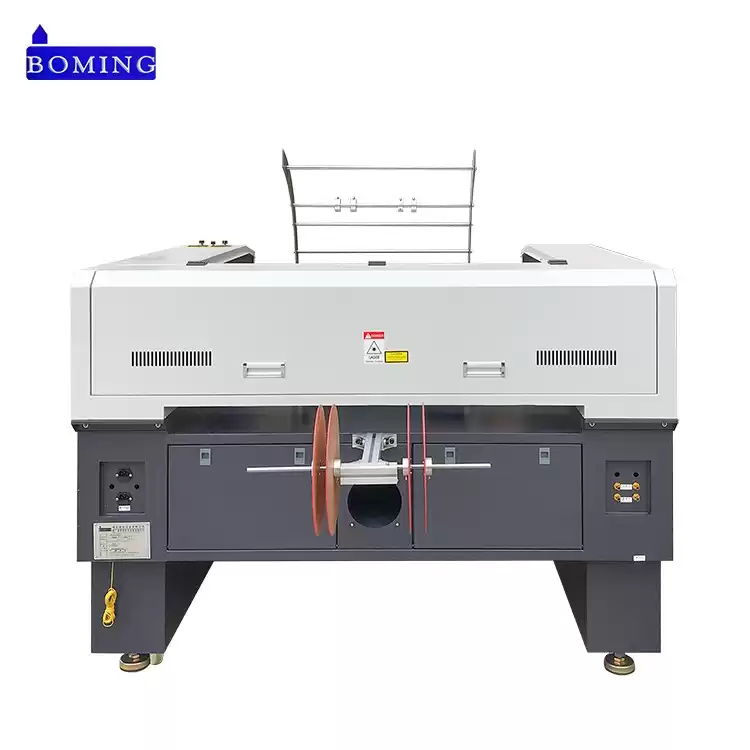

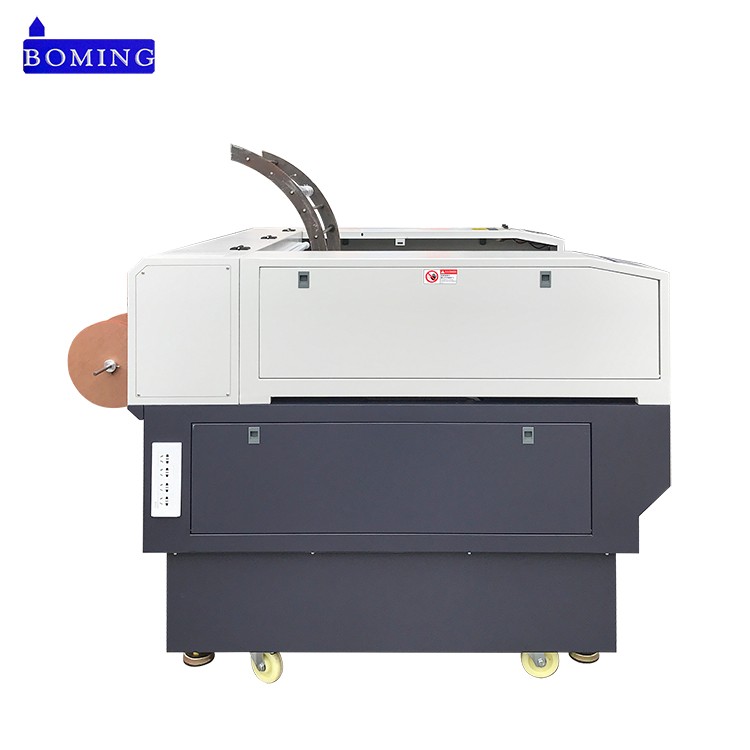

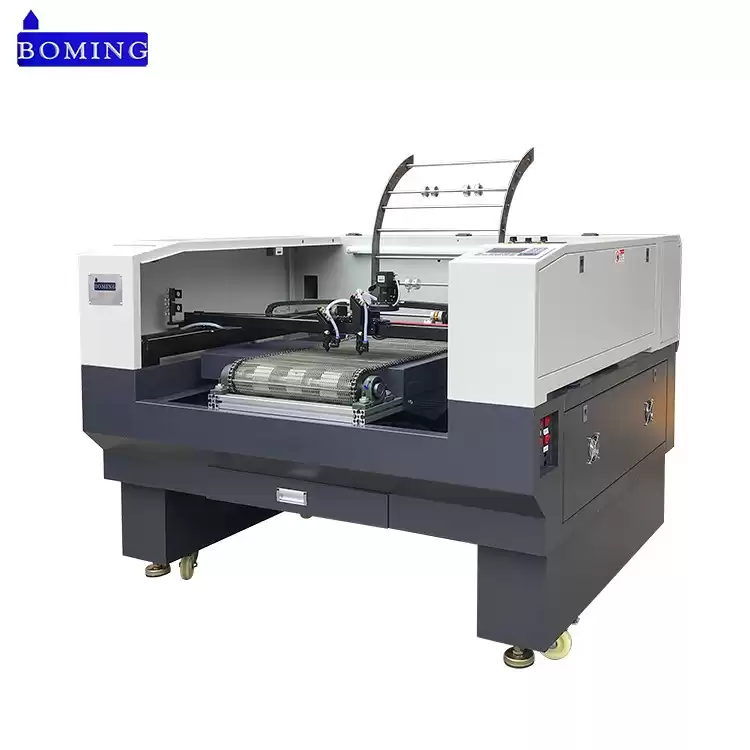

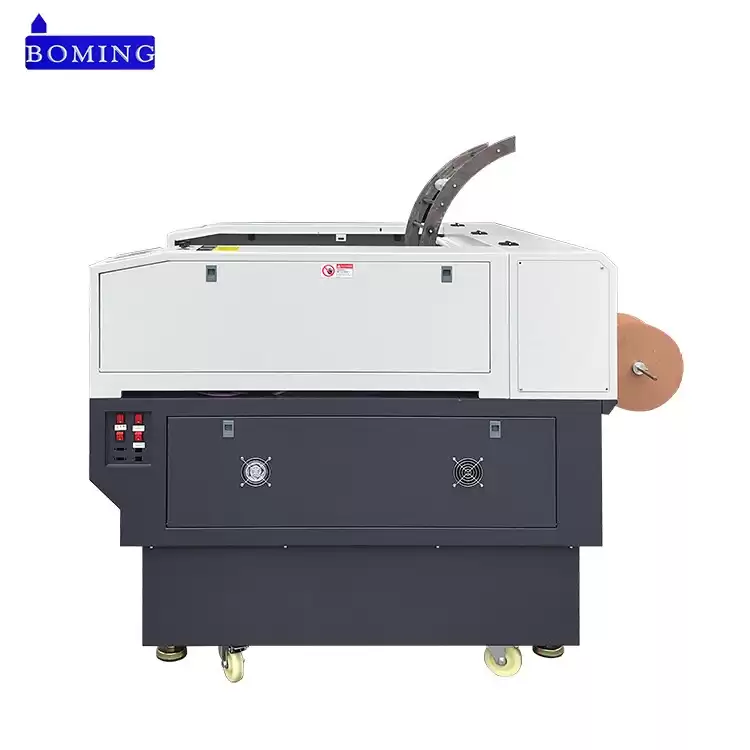

Machine pictures:
Features:of auto feeding webbing laser cut machine wiht camera
1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.
2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.
3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.
4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.
5、The customized maehines with different size are available.
Advantage: of laser cut webbing
1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board
Applicable Industries:of cnc laser cutting machine
Outdoor products, pet products, military security, luggage, clothing, shoes and hats, gifts and other industries.
Applicable Materials: of laser cutting machine for webbing
Polyester webbing, nylon webbing, polyamide, blended fabrics, leather belt, seat belt, woven label,strap and other knitting materials.
Technical Parameters:of automatic ribbon laser cutting machine
Laser Capacity | 60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 900*600 1000*800 1200*800 1300*900 1400*800 1600*800 mm |
Positional Accuracy | ±0.05mm |
Working table | Special webbing cutting platform |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
When
purchasing a laser woven label cutter, you should evaluate the
workstation and make sure there are no safety hazards. Combined with
background information on the material you want to use, cutting
techniques you are familiar with, you can find the perfect match from
our selection of laser woven label cutter. These specialized devices
provide high-precision cutting and have different features that enhance
their performance.
Sample show:
Our Payment: of ccd camera laser cutting machine
1) Usually we accept T/T, Irrevocable L/C at sight.
2) 30% deposit, the 70% balance should be paid clear before delivery.
3) The delivery day is 7-10 working days.
4) The MOQ is 1set.
Why choose us:
1. 13 years experience on laser cutting and engraving machine.
2. Use good brand parts, excellent machine quality.
3. Free consulting, lifetime technical support.
4. Various optional types, customized acceptable.
5. Machines sold to Southeast Asia, South Asia, South America......
Our laser cutting machine for woven label has high efficiency, low cost and
perfect effect, output design and product at the same time, label
cutting, and cutting of appliqué, special embroidery, clean cloth and
non-woven fabric. And the incision is smooth, the size is consistent and
accurate, and there is no burr or deformation; at the same time,
multiple layers of complex shapes are cut.
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
These woven
label laser cutting equipment devices provide high precision cutting and
have different features that enhance their performance. A high-quality
woven label laser cutting equipment can make your work easier!
