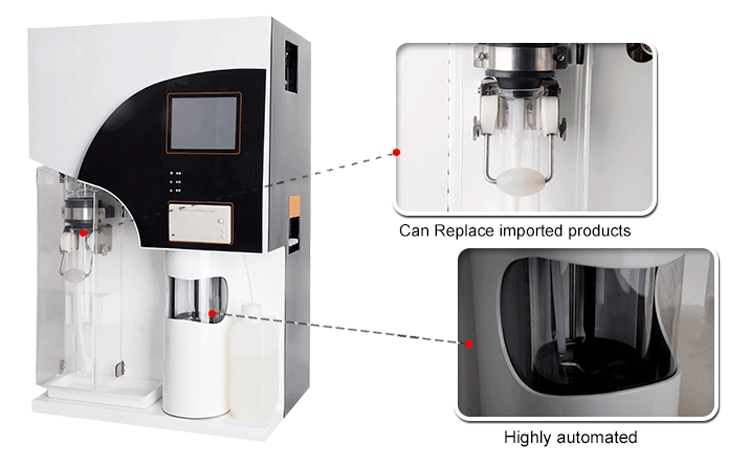

Automatic Kjeldahl Analyzer is an automatic device integrating distillation and titration functions designed based on classic Kjeldahl nitrogen determination method. Distillation, absorbing, titration, calculation, waste discharge and cleaning are automatic.
-
Multiple protection devices: 1) failure self-detection 2)hint of low cooling water & cooling water over pressure warning 3) displacement of safety door warning 4) displacement of nitrogen tube 5) over temperature alarm
-
Steam flow is controllable, satisfying different experiments’ requirements
-
Reagent lacking warning: if processing experiment lacked any reagent, warning automatic, to ensure accurate measuring result.
-
High precision charging pump and titration system, burette volume is 1.0 μL/step
-
Large LCD Touch Screen gives visual operation and abundant information
Model
|
OLT-KN-2
|
|
Measuring Range
|
0.1mg N – 200ng N
|
|
Analysis Time
|
5-10 min/ sample
|
|
Reproducibility
|
Average value relative error 0.5%
|
|
Recovery
|
≥99.5%
|
|
Burette volume
|
1.0 μL/step
|
|
Sample capacity
|
solid <=5g/sample, liquid<=20mL/sample
|
|
Water consumption in the distillation process
|
1.5L/min
|
|
Data storage capacity
|
1000 pieces
|
|
Power supply
|
220VAC±10%, 50Hz
|
|
Power
|
22KW
|
|
Net weight
|
38Kg
|
|
Dimensions
|
455mm×391mm×730mm
|
|
Certifications
|
CE
|
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
