AUTO Roofing Curving Machine

AUTO Roofing Curving

Machine (60/80/100/120/140/160/180 degree)



AUTO Roofing Curving Machine



Click Here To View The Video

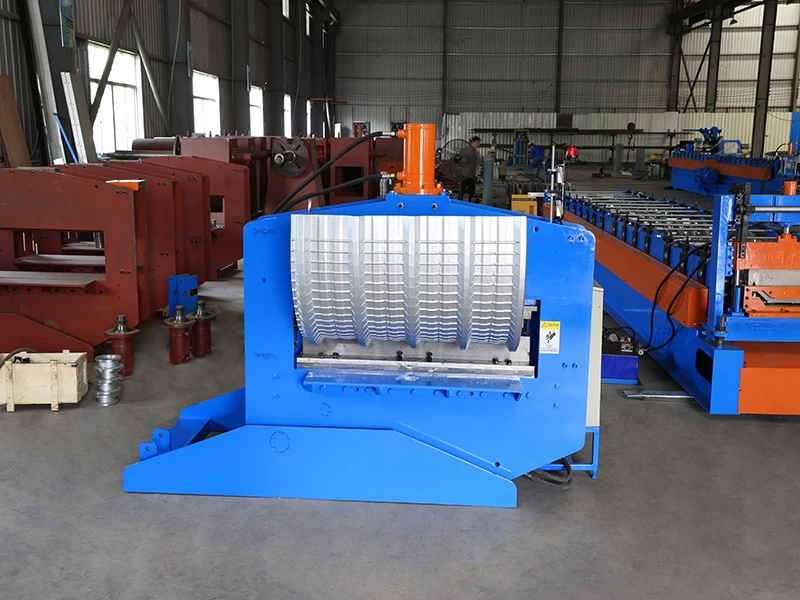

AUTO roofing curving machine


Material


Material Thickness:0.3-0.8mm
Applicable Material:Gavalized Steel(GI),Cold Roll Steel(CRC)
With Yield Strength:235-345Mpa


The machine features

The panel forming machine is mainly used to make the profile panel become curved with the required radius through cramps on the surface. It can realize auto control and the curving radius, length and cramp-distance are adjustable through setting on the screen and PLC cabinet.


Machine Components

Hydrualic motor =4KW, feeding motor with SERVO type motor
Curving Radius: Min.500mm
Horizontal and vertical two directions

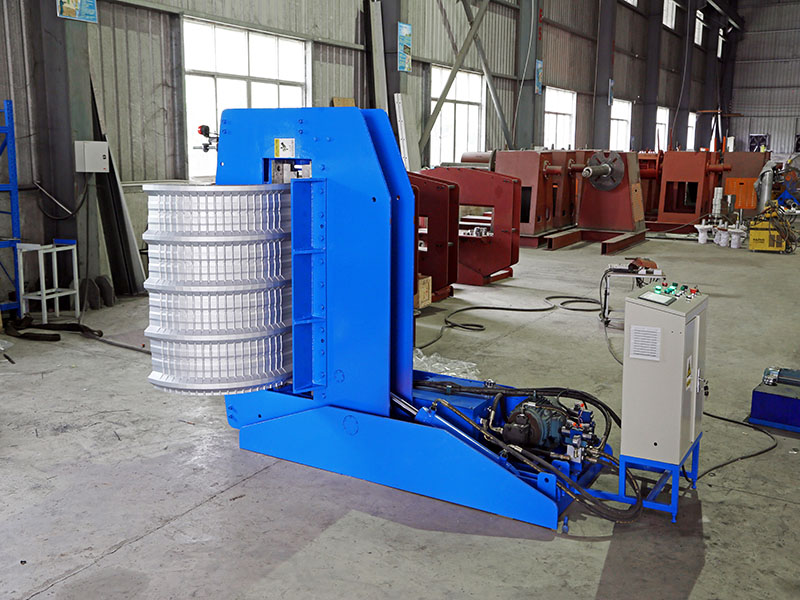

AUTO roofing curving machine




AUTO roofing curving machine

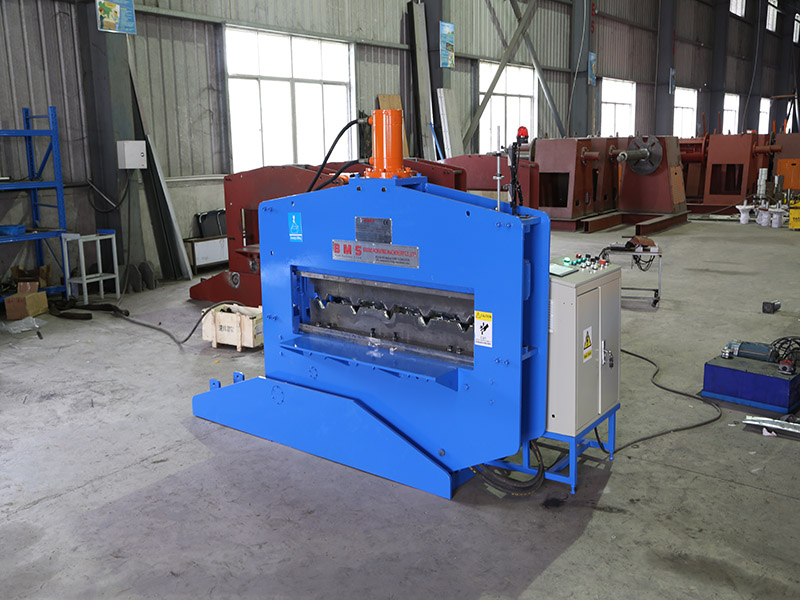

PLC Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc


AUTO roofing curving machine

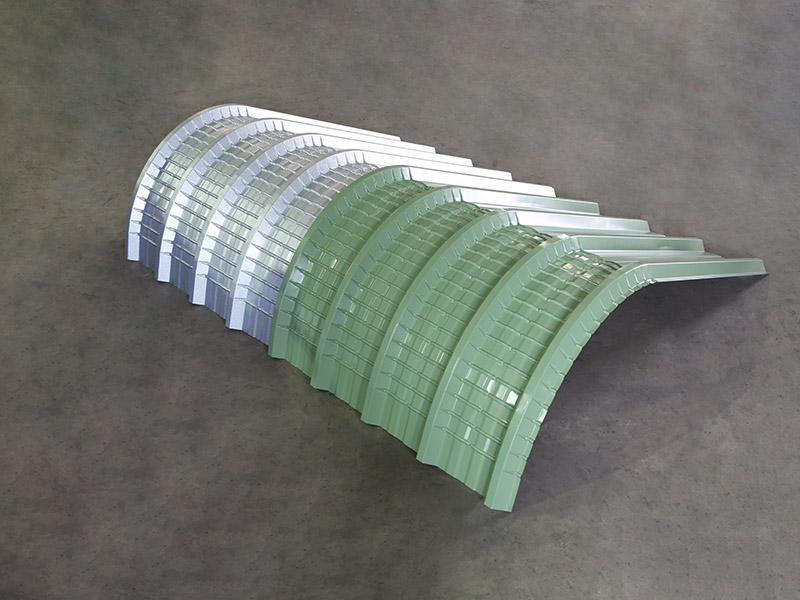

Product Show

AUTO roofing curving machine

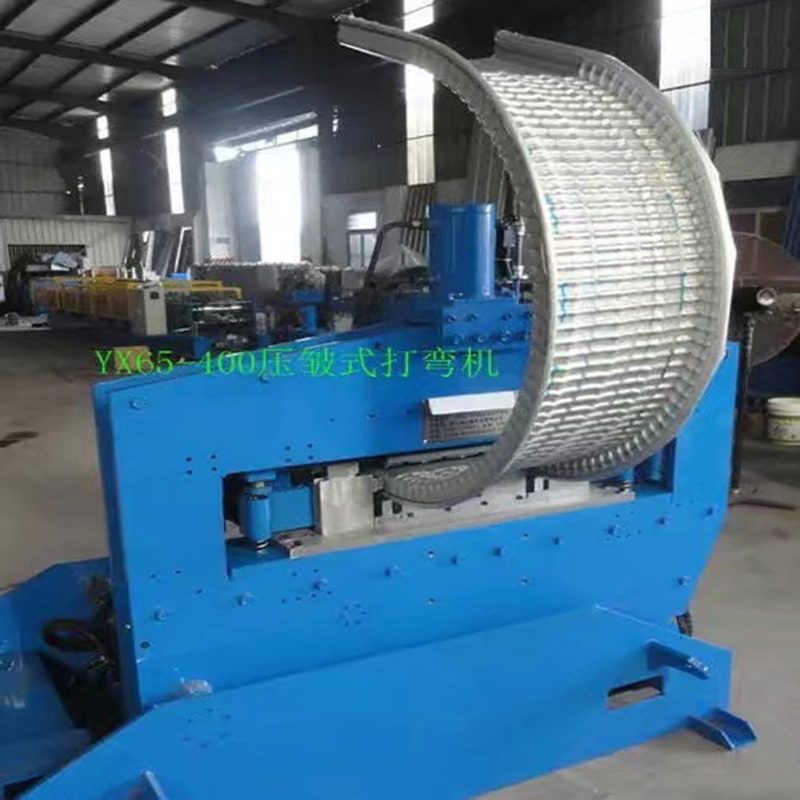

Other Curving Type

AUTO roofing curving machine



Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.




After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms Of Trade

1. Minimum order quantity (MOQ): 1 Set
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
