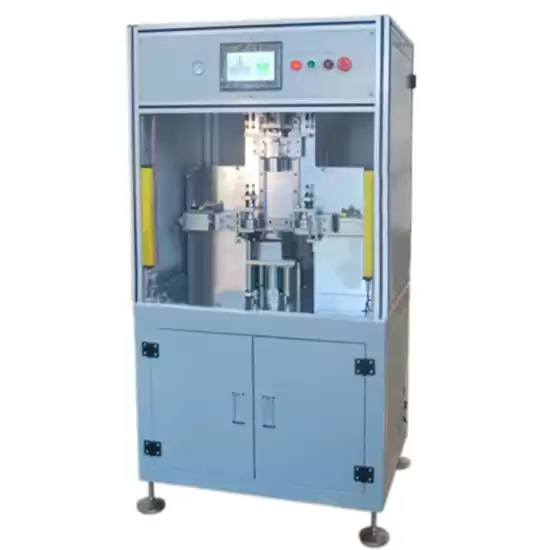

automatic Cylindrical Supercapacitor Grooving Machine

Product Description:

Suitable for automatic grooving of super capacitor shell.

Main Features:

*Using jacket type clamping fixed groove, centering coaxiality is high, rolling groove is even.

*High precision linear guideway group is adopted for guiding feed, with high precision and stable dimension.

*The height of the supercapacitor can be adjusted up and down, and the groove size can also be adjusted.

*Product counting function, convenient to see the processing quantity.

*Rolling groove, product rotation speed is uniform and adjustable.

*It adopts light curtain electronic protection, which is safe and reliable.

*PLC, touch screen control, easy to achieve automation.

*Geometric design, exquisite and beautiful appearance.

Working Process Description:

Manually put the product into the jacket, press the foot switch, the lower cylinder will tighten the annular jacket, and the capacitor will be clamped and fixed concentrically. The upper movable spindle pressure head will press the capacitor end cover to make the end cover in a flat state. Then the motor will start to drive the jacket spindle to rotate. The air cylinder will drive the left arm grooving wheel, and the right arm necking wheel will feed at the same time, so that the product can be positioned in the center of the jacket, and the clamping wheel of the right arm will feed at the same time After completion, all parts return to their original position and take out the products.

Technical Parameters:
