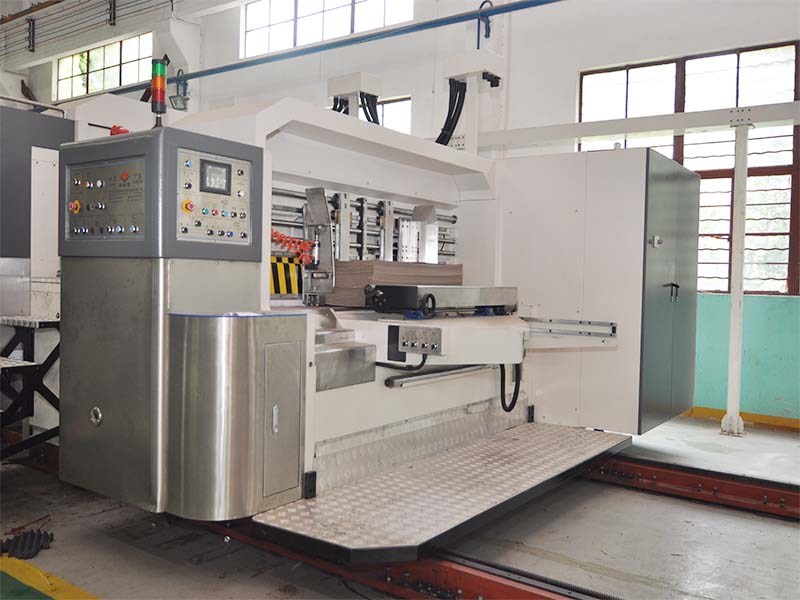

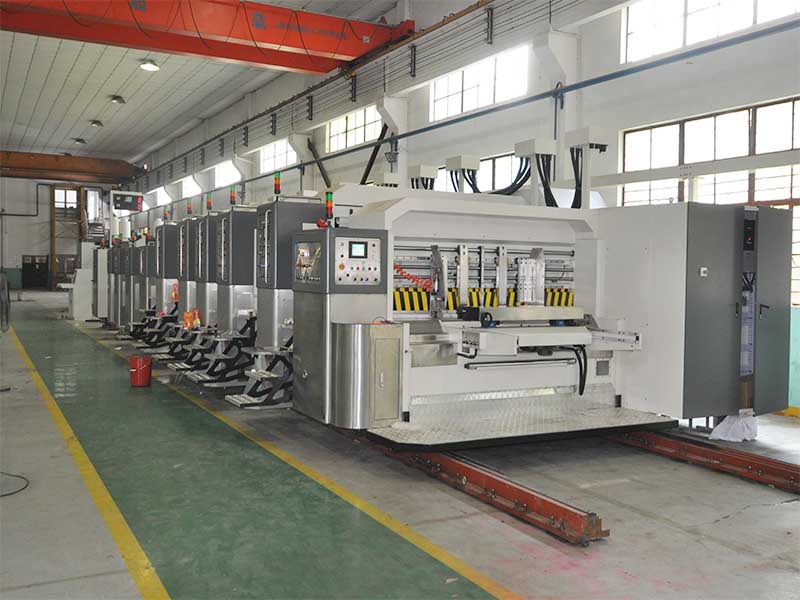

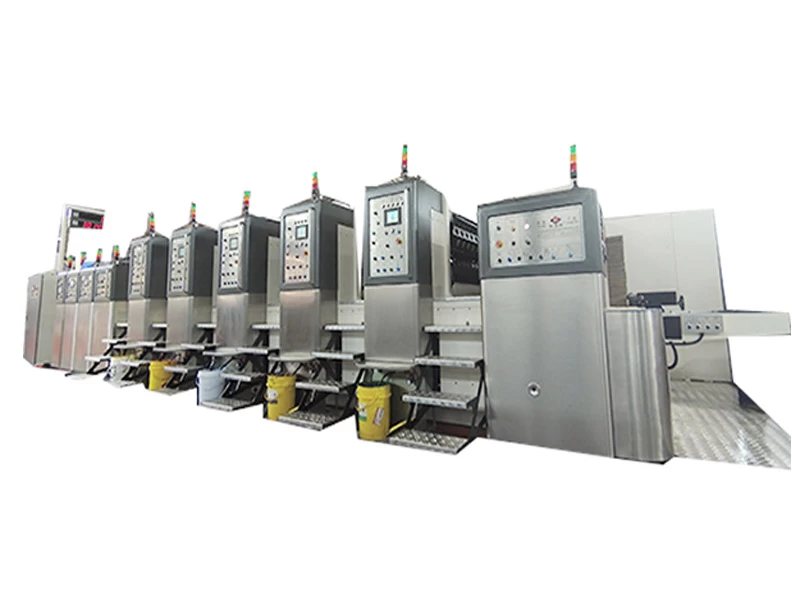

Automatic 4 Color Corrugated Carton Flexo Printing Slotting Die Cutting Machine

Fixed automatic printing slotting die-cutting machine, meet the needs of long chain production.



Automatic 4 Color Corrugated Carton Flexo Printing Slotting Die Cutting Machine


6 Color Printing Slotting Die Cutting Machinery Features:

·This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto   control and quick order shift.

·Auto high quality materials and parts.

·Well hardened and ground transmission gears, hardness more than 60(HRC).

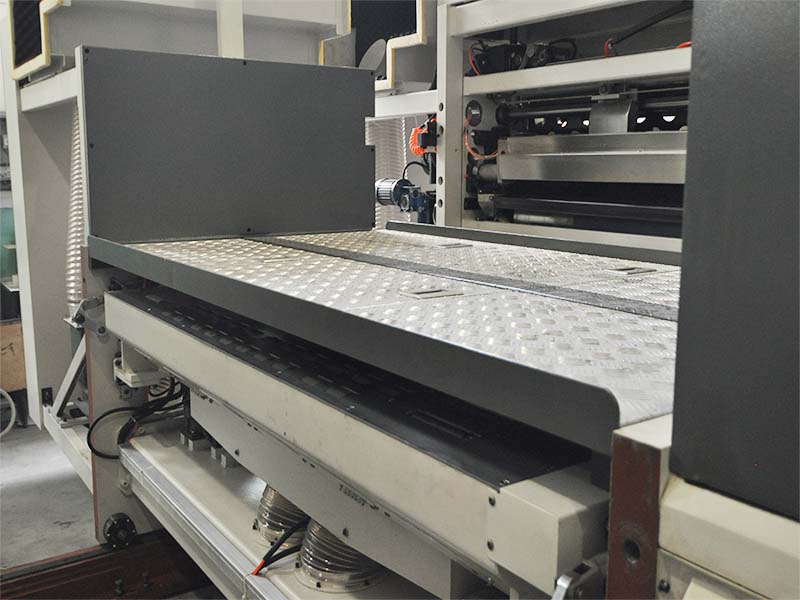

·Vacuum transfer system used in all printing sections.

·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.

·PLC control system with touch screen control.

·Able to save order,speed up the order shift.

·All electronic and pneumatic components are with European standards.

·Able to shift order of the idle Printing Section under production.

·Able to facilitate the production management.


Corrugated Box Printing Slotting Die Cutting Machine Specification:

Data/Model 900x2000 900x2400 1200x2000 1200x2400
Printing Speed(m/min) 200 200 200 200
Max Machine Speed(pcs/min) 350 300 250 250
Max Feeding Size(mm) 880x2000 880x2400 1180x2000 1180x2400
Min Feeding Size(mm) 280x640 280x640 320x700 320x700
Skip Feeding(mm) 1100x2000 1100x2400 1500x2000 1500x2400
Max Printing Area(mm) 800x2000 800x2400 1150x2000 1150x2400
Thickness of Printing Plate(mm) 7.2 7.2
7.2 7.2
Min Panel(mm) Slot Type L. 240x80x240x80 240x80x240x80
260x90x260x90
260x90x260x90
Max Slotting Depth(mm) 250 250 320 320
Max Thickness of Sheet(mm) 8 8 12 12

Dimension(LxWxH)

T

F

T:14374x5770x3200

F:15674x5770x3200

T:14374x6170x3200

F:15674x6170x3200


T:15732x5870x3500

F:17232x5870x3500


T:15732x6270x3500

F:17232x6270x3500



Our Research and Development:

KESHENGLONG has a perfect Research and Development system, and owns a high level R&D team, leading capability of independent innovation, and complete producing, processing and manufacturing capability. We has Full computer gantry boring and milling machining center, CNC pentahedron boring and milling machine, 5 meter grinding machine etc., more than 200 set of processing equipment.
