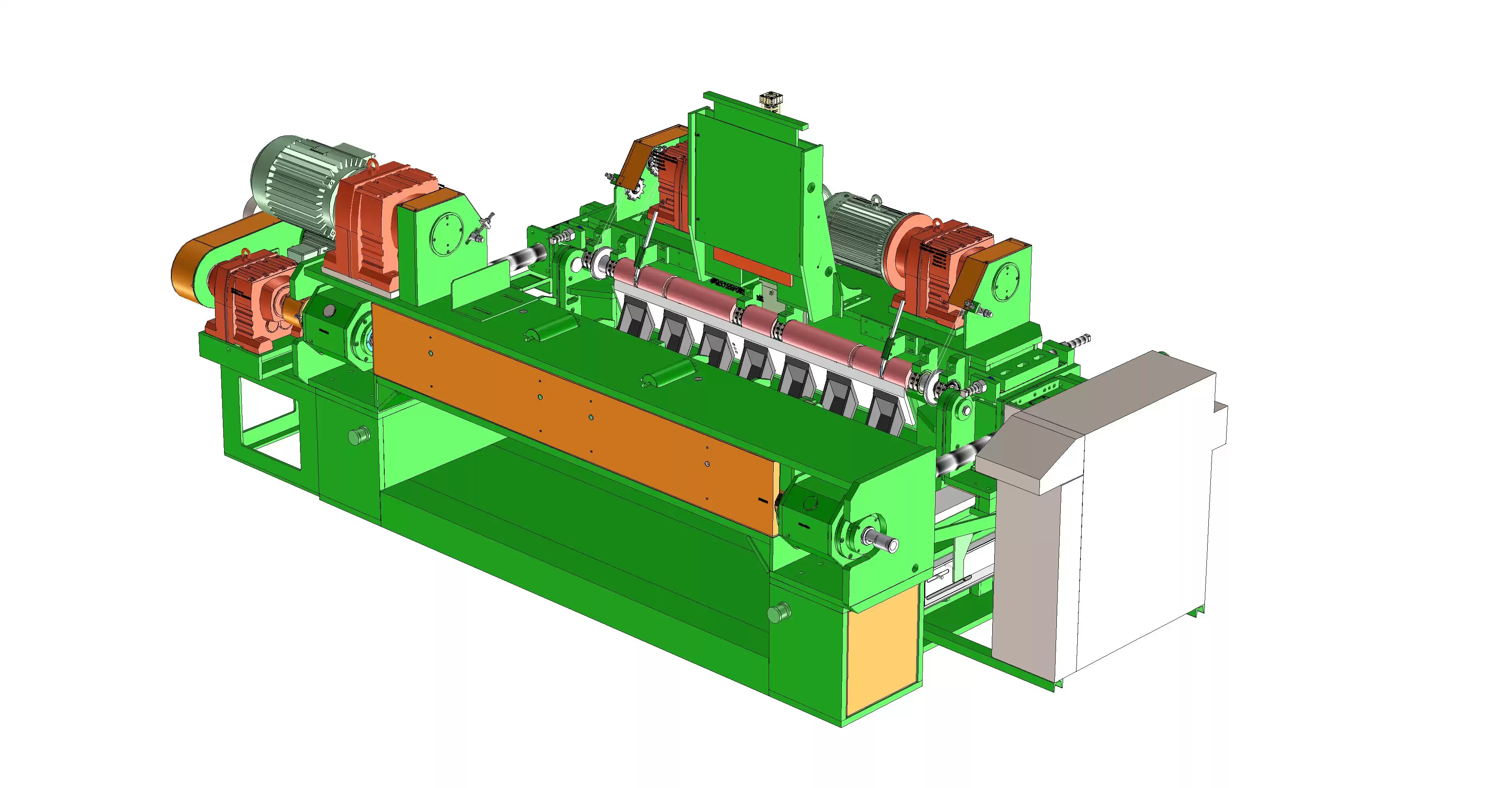

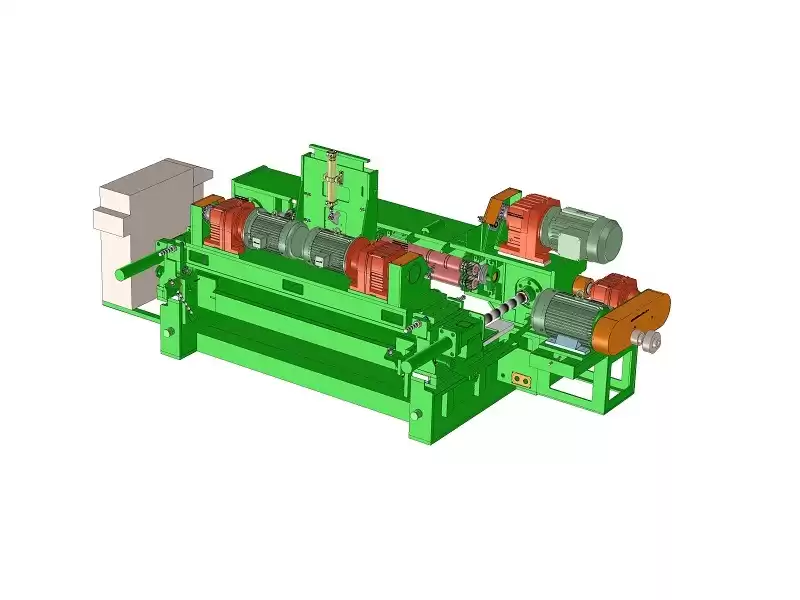

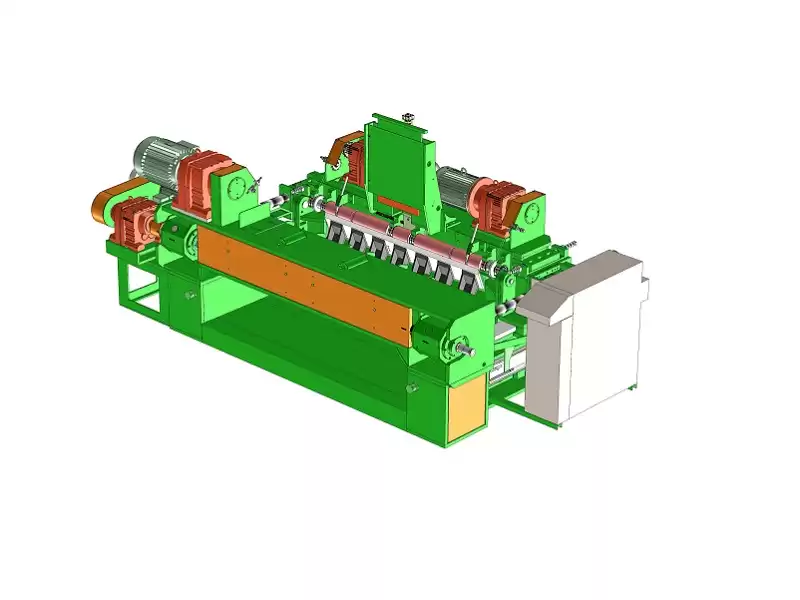

Product Name :Automatic 4ft spindleless high speed core veneer peeling machine
Major Technical Parameters
Model : BQ1813/E4S
Length of Veneer Log: 900-1400mm
Diameter of Veneer Log: Φ30-Φ400mm
Length of Peeling Knife: 1500mm
Thickness of Veneer: 0.5-4.0mm
Width of Veneer: 300-3000
Linear Speed of Veneer Peeling Line: 54/65/80m/min
Total Power: 33KW
Total Weight: 5800kg
Overall Dimensions: 4010*2300*1550
Product overview:
1. High performance CNC system to
control feeding.
2. Screw and nuts magnesium used
is aluminum alloy, copper and other materials. So it is with long service life.
3. Automatic adjustment of
peeling system will apply to woods with different diameters.
4. The machine can adjust the
thickness of two kinds of veneer constantly when peeling
Packing details:
Wrapped with PE film and plywood wooden case for the spare parts
