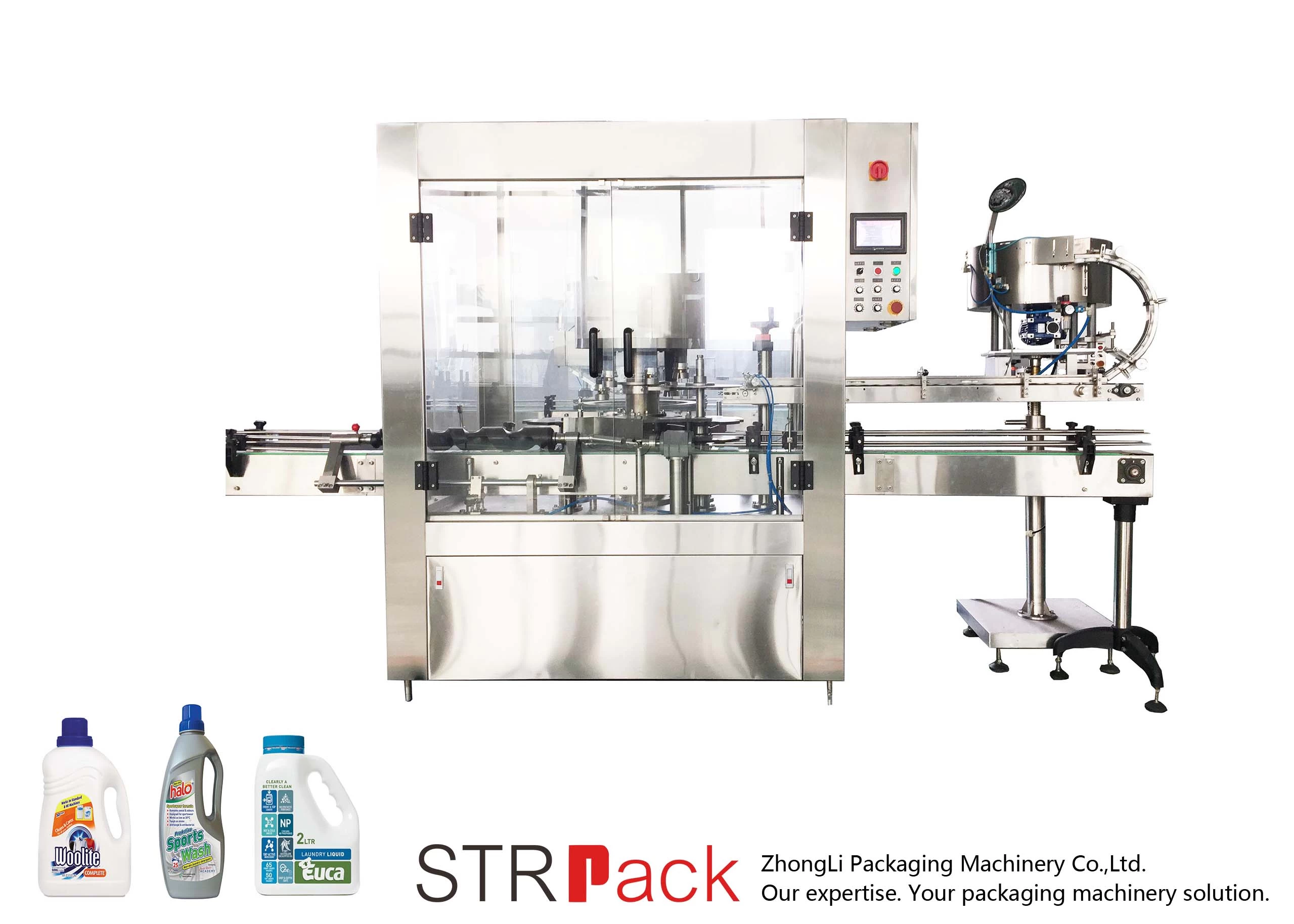

Automatic 6 Head Rotary Capping Machine

This Automatic 6 Head Rotary Capping Machine is used for closing plastics screw caps, especially for the caps which with lock ring. It is widely used in industries like foodstuff, pharmacy, daily chemical, cosmetic, fertilizer etc.



  • Brand NameSTRPACK
  • CertificationISO CE
  • Warranty:2 Years

Automatic 6 Head Rotary Capping Machine



Brief Introduction:

This Automatic 6 Head Rotary Capping Machine is used for closing plastics screw caps, especially for the caps which with lock ring. It is widely used in industries like foodstuff, pharmacy, daily chemical, cosmetic, fertilizer etc.

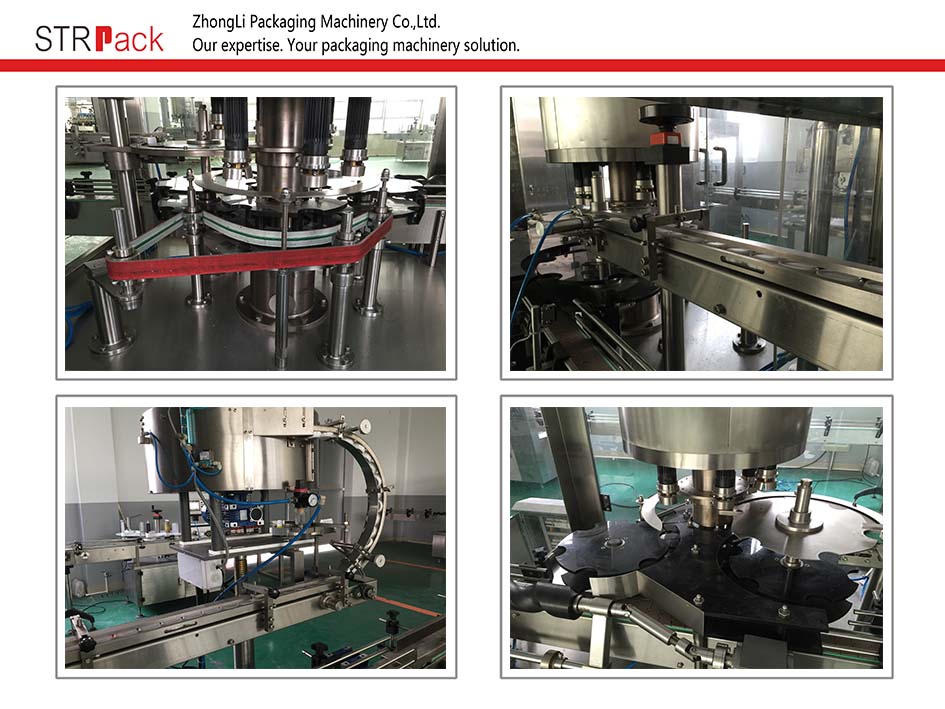

PLC control system, rotary type structure, the machine is with function of automatic cap feeding ,loading and closing.
Machine come with 6 capping heads, pneumatic chuck capping head with clutch ,it won
t damage the caps, and use belt to press bottle which also make no damage of the bottle.
High capping speed and capping accuracy.


Main Parameter:

No.

Model

SXF-6

1

Speed

5000bottles/hour

2

Bottle Diameter

45-90mm

3

Bottle Height

80-280mm

4

Cap Diameter

35-55mm

5

Power

3KW

6

Air Pressure

0.6-0.8Mpa

7

Voltage

220V/380V, 50Hz/60Hz

8

Weight

850KG

9

Dimension

2000*1300*2400MM

Automatic 6 Head Rotary Capping Machine


After-sales Service:

(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
