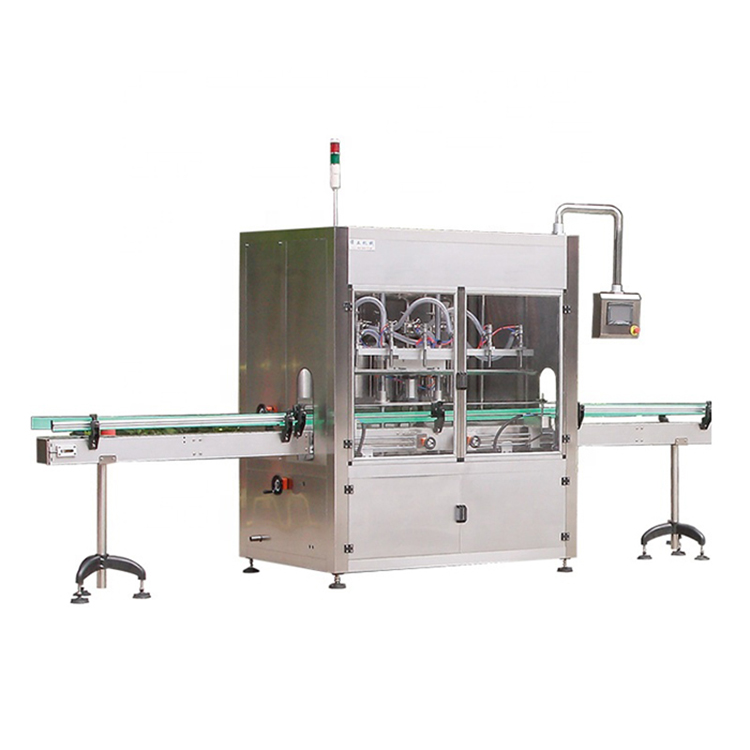

Technical Parameters For Automatic 12 Nozzle Energy Drinks Filling machine:
Material
|
Stainless Steel
|
Bottle Filling Height
|
30-350mm (Adjustable)
|
|
Bottle diameter
|
10-200mm (Adjustable)
|
Bottle cap diameter
|
70-110mm(Adjustable)
|
Filling volume
|
100ml-500ml-5L
|
Power
|
3.0-3.5kw
|
Weight
|
700kg
|
Size
|
1700(L)*1300(W)*2100(H)mm
|
Voltage
|
380V,50Hz
|
Main Features:
1.No Bottle or Lack of Bottle, No Filling System.

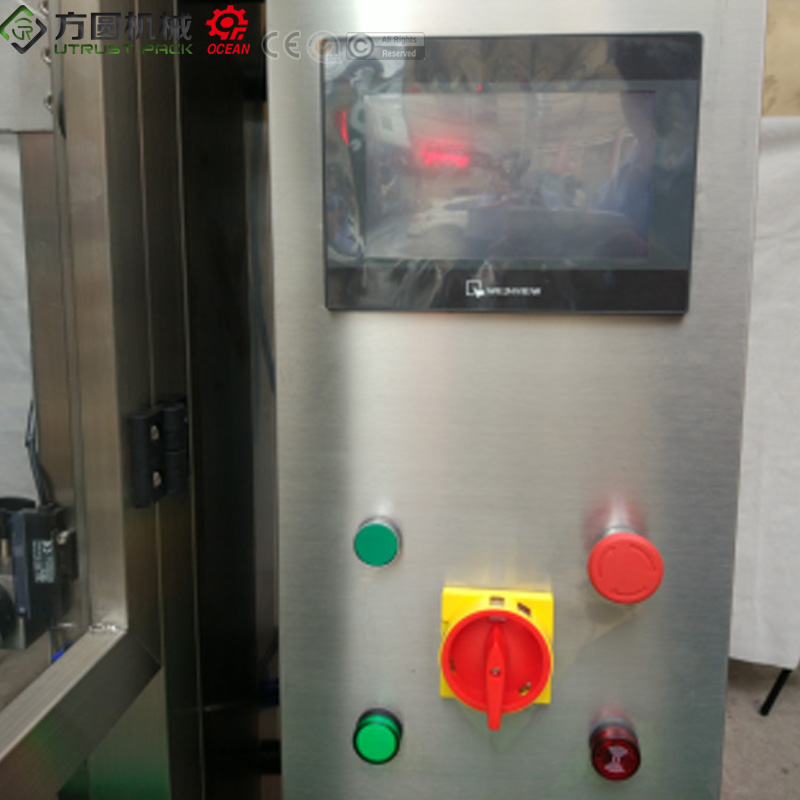

2.PLC Electronic-Pneumatic control system, color touch screen display, machine has function of counting automatically.

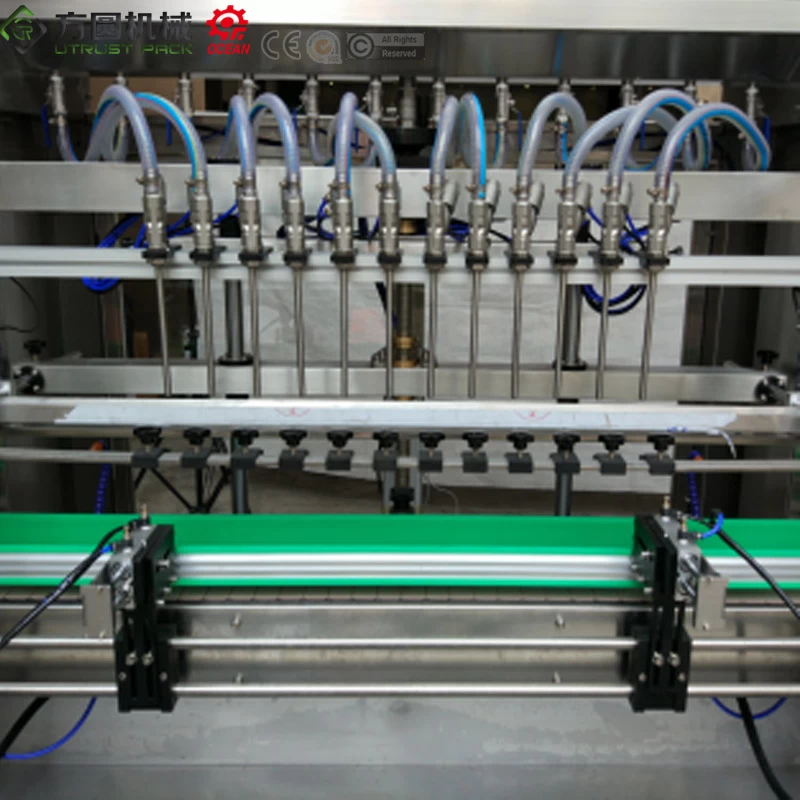

3.The filling nozzle was equipped with drip-proof device.
4.When filling liquid, the filling nozzles dive into the bottom of bottles, rising slowly, it can effectively prevent bubbles.
5.Main electrical elements adopt foreign well-known brands .
6.Machine shell is made of 304 stainless steel, meets GMP standards.
