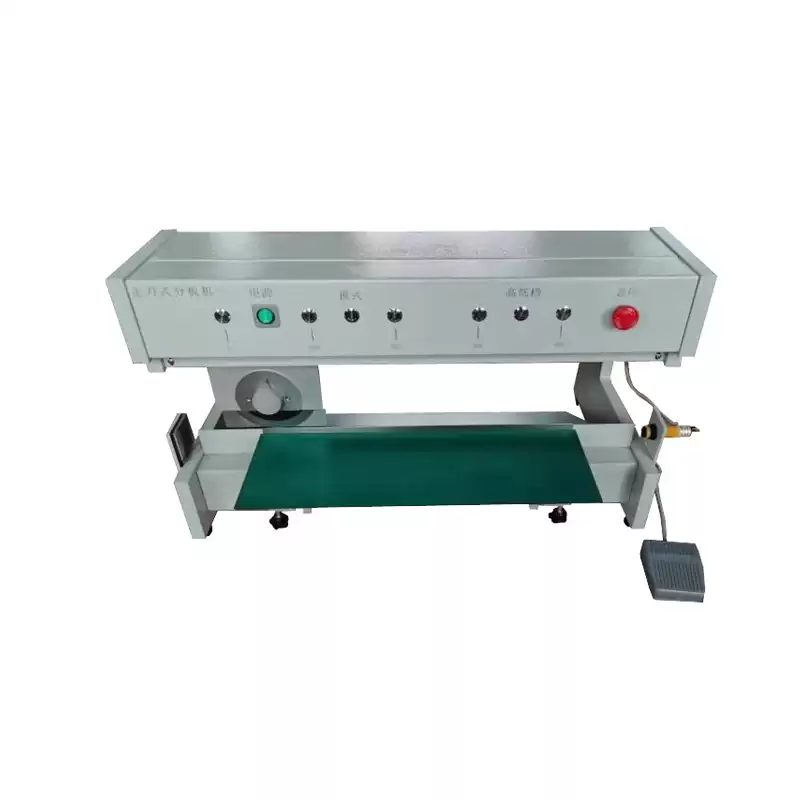

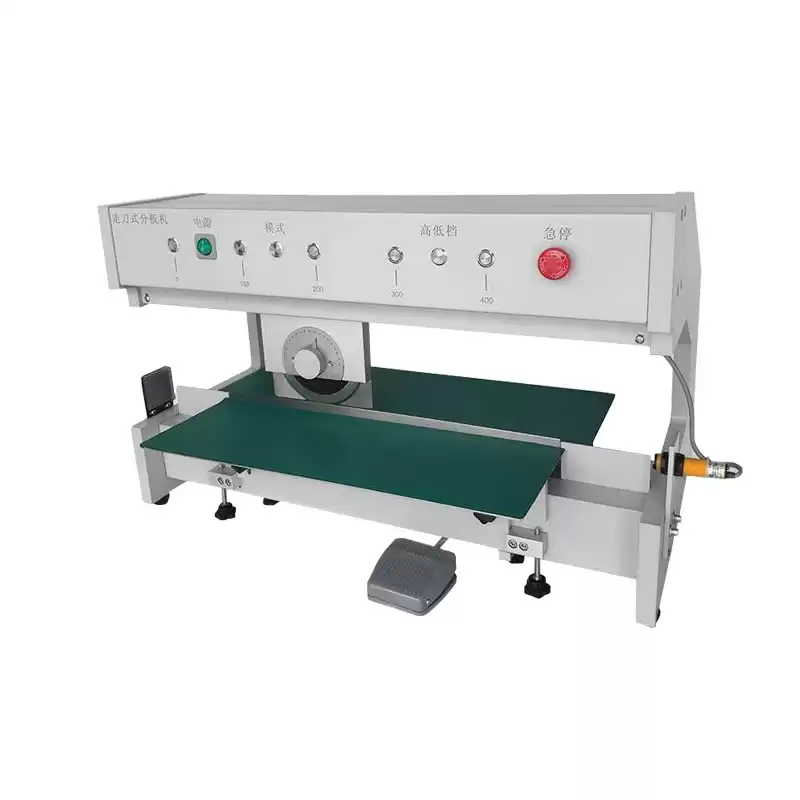

Automatic Aluminum LED V-cut PCB Depanelizer

Automatic Aluminum LED V-cut PCB Depanelizer

Usage: the automatic pcb depanelizer is ued for cutting v-cut pcb, aluminum pcb, LED strip, etc.

Suitable pcb: PCB with V-cut

PCB length: We have different models of automatic pcb depanelizer accoring to the length of client's boards.

The PCB is placed with its pre-scored groove onto the linear blade. When the foot switch is pressed, the blade carrier with the circular blade moves across the PCB, separating it into individual boards. The clearance between the upper blade and linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove. The table can be continuously adjusted with the rotary knob whenever required while the rest can be adjusted in three steps to the most suitable working position.

Automatic PCB Depanelizer Features:

1. Full automation,stable performance,easy operation,high safety and simple maintainence.

2. Uniquie shape,practical operation,and gorgeous appearance.

3. Cutting principle is based on Motor data transfer, blade moving to cut PCB.

4. Suitable for all V-CUT PCB board. PCB thickness:0.2-3.2mm, PCB v-cut thickness:0.2-2.0mm.

5. During cutting,it can effectively decrease physical strength to avoid welding spot cracking.

6. PCB remains still during cutting, thus to ensure personal safety.

7. Lower linear blade is used to fix the PCB v-cut, and upper circular blade moves to separate PCB.

;

LED PCB Depanelizer Specification:

;

Our Certificate:

Company Profile:

2008, Dongguan factory established, and start producing standard v-cut PCB separators and hot bar soldering machines.

2010, Our products are widely sold in local market.

2012, Start producing customized v-cut depaneling and PCB router.

2014, ;Expand our sales team for providing better service to more customers.

2015, Start manufacturing laser depaneling machines.

2017, Start manufacturing ;soldering robot and screwdriver machines.

2018, HK company established.
2019, Huizhou factory established, due to expansion.

2020, Business expansion again, products covering PCB depaneling, PCB soldering, screwdriver system, etc. ;

2021, Our machines cover all Chinese market and also popular in America, Europe, South Asia, East Asia, etc.

Our Service:

1. Guarantee for 12 months.

2. Maintenance for whole life.

3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.

4. 24 ;hours x 7days online ;service, ;free ;technical ;support.

5. Machine ;has ;been tested before ;delivery.

6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.

7. Oversea on-site installation and trainning is available.

8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
