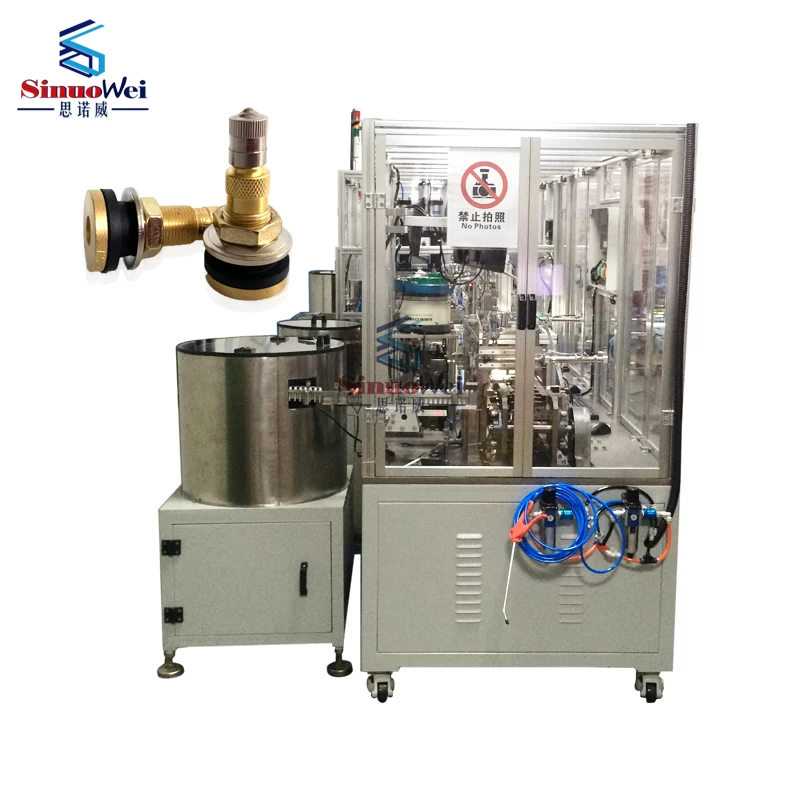

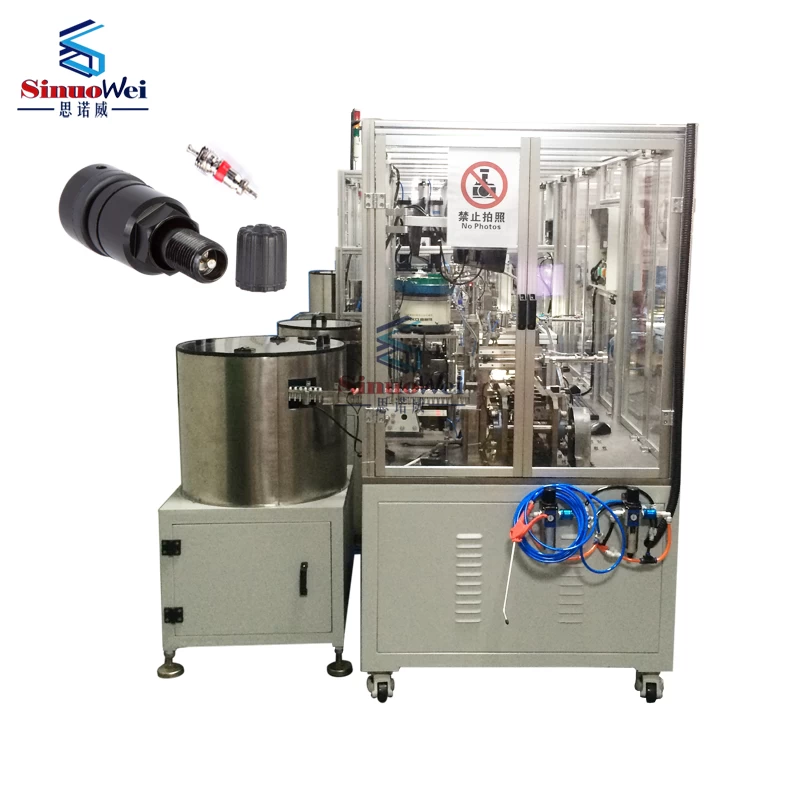

Automatic Assembly Tire Tubeless Valve Machine Tyre Valve Machine Production Line Manufacturer
This kind of Tire Valve Machine can assemble vary types of valve stem full-automatically through straight lines and turntables, all the parts such as, valve body,valve core, valve washer and cap will be assembled completely by machine. Machine and process control system of Sinuowei is new patent design with the technologies of full automation assembly and testing by smart tooling solutions. Our hose clamp machine not only improves the production efficiency and quality in maximum but also lower a lot of the cost for tyre valve manufacturers. The machine is advanced, high level of automation, stable performance, wide adjustment range, high efficiency and good effect.
|
Product name
|
Tire Valve Machine
|
|
Size
|
5000mm(L)*1500mm(W)*1800mm(H)
|
|
Weight
|
1 Ton
|
|
Work Area
|
5500mm(L)*3000mm(W)
|
|
Presure
|
0.5Mpa-0.7Mpa （72.5-101.5 PSI）
|
|
Free Twisting Force
|
0.8-1.3N/M (7.08-11.505 in/ibs)
|
Equipment Failure Rate
|
less than 0.3%
|
|
Effciency
|
800-1200pcs/hour
|
|
Warranty Period
|
one year
|
|
Additional Serves
|
Profesional technology training
|
Brand of Main Parts
|
SMC Japan, SIEMENS Germany, Panasonic Japan,Keyence Japan, Schneider France, BASLER Germany, HIWIN Taiwan.
|
|
1. We have sold hundreds of machines already at home and abroad and they are working very well so far. As time went by, our
machine become even more sophisticated with higher efficiency and greater
stability.
|
|
2. We are professional in design and manufacture
automatic assembly clamp in tyre valve machine with 10 years of experience. Our
technology of automatic assembly tyre valve machine is mature and reliable.
|
|
3. The production efficiency is 1200pcs/hour more or less and working accuracy are all much higher than handmade, therefore satisfying the production requirements of new generation manufactures of tyre valve stem.
|
|
|
4. An automatic assembly tire valve making machine can be designed as Multi-size according to client's requirement. Maybe two or four different sizes in one machine is available if the structure of clients' tyre valve stem allowed.
|
|
5. The same as another many parameters of machine, Free torque and broke torque of tyre valve can be customized. Our flexibility customization design to ensure all customer's requirements are met.
|
|
6. Compared with the traditional manual control
manner, this machine has many advantages such as stable and simple operation. Working
content is only adding semi-finished product material on bin every 4 hours.
|
7. The production is
controlled by PLC microcomputer which will records all data and it equipped
with human-computer interface to make sure most all the technical parameters
can be set on the touch screen.
|
|
1. The valve body will be
transferred into the machine in one direction by vibration linear feeder with
bin. The valve body will be put into holes of mold in a panel and to be transfer
into next station.
|
|
|
2.The pneumatic ejector will strong blow the inside
of valve body by air to make sure that the valve is clean enough.
|
|
3. Not only the inside but also
the outside of the top of valve will be test by the detecting system. If both
side of valve thread is perfect and then the valve will be transfer next
station.
|
|
|
|
4. The core of valve stem will be
transferred into the machine directly in one direction by vibration linear
feeder with bin. The cores to be tighten into the tested valve body in bottom-up.
|
|
5. After the valve body screwed by
core, the machine will press the center of core to test whether the core is
feasible to through the air. and then pick out the bad one.
|
|
|
|
6. Good semi-finished valve stem
will be grasped by the fixture of machine to the turntable.
The rubber grommet will be set up on the valve stem
automatically.
|
|
7.After above steps, a panel of
tire valve stem already completed. There is air-leakage detector on the
discharge outlet to recognize whether the finished product is good.
|
|
|
8.The tested valve stem is
grasped by the fixture tool. Good products will be put into the blister tray in
order and the defective goods flow to the container of defective products for
collection.
|
