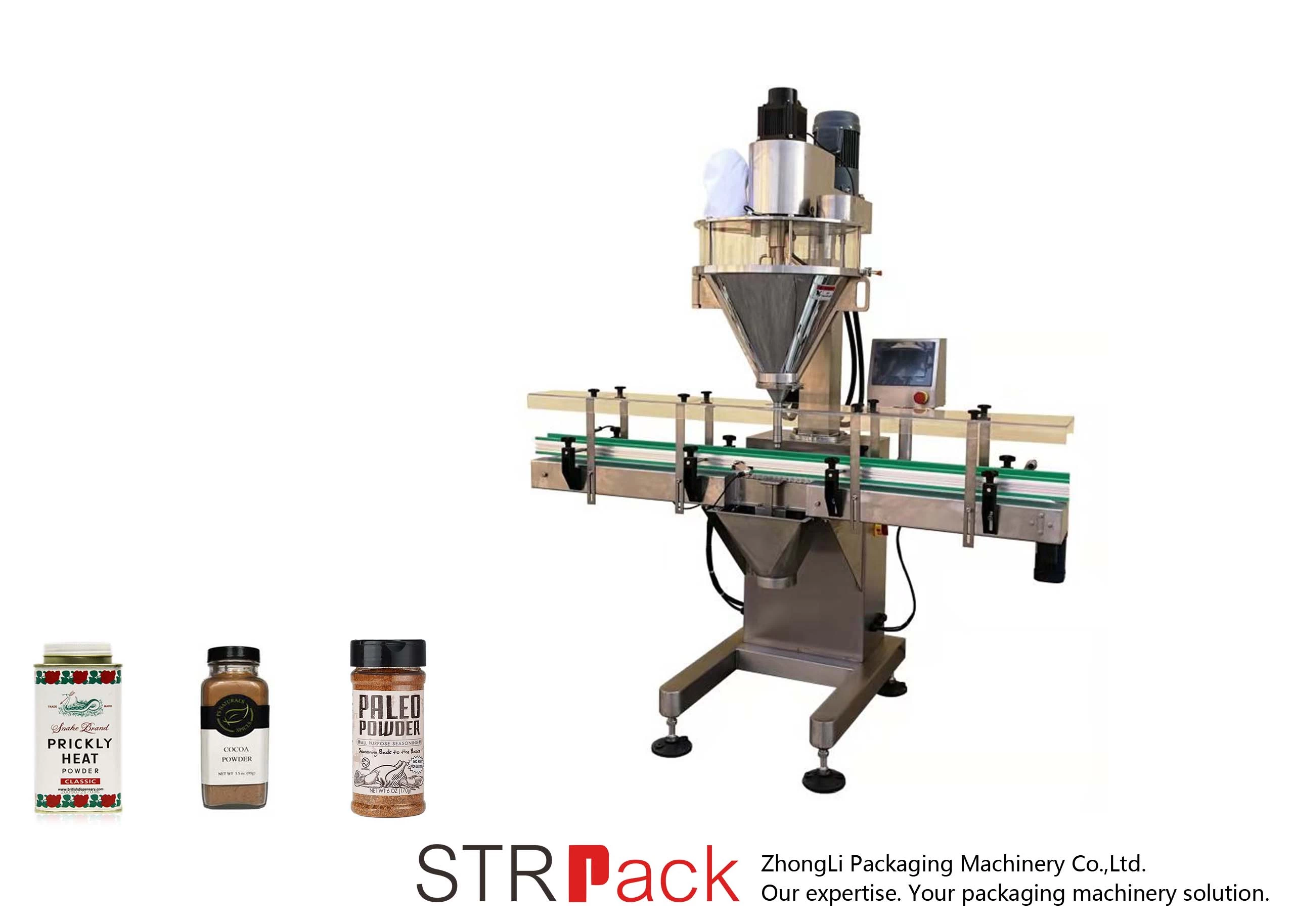

Automatic Auger Powder Filling Machine
Brief Introduction:
Automatic Auger Powder Filling Machine is designed mainly for the
fine powder which easily to spout dust and high-accuracy packing requirement. Can
measuring and filling powder and granular. It consists of the Weighing and
Filling Head, an independent motorized chain conveyor mounted on a sturdy,
stable frame base, and all necessary accessories to reliably move and position
containers for filling, dispense the required amount of product, Based on the
feedback sign given by below weight sensor, this machine do measuring,
two-filling , and up-down work ,etc. It is specially suitable for filling
additives, carbon powder, dry powder of fire extinguisher, and other fine
powder which needs high packing accuracy.
Features:
Platform equip with load cell to handle two
speeds filling as per preset weight. Featured with high speed and accuracy
weighing system to guarantee the high packaging accuracy.
Servo motor does up-down work driving with tray together, the up-down rate can
be set randomly, no dust spouts out when filling.
With servo motor and servo drive controlled auger, perform stably, and with
high accuracy.
PLC control, touch screen display, easy to operate.
Made of stainless steel, combined hopper or split hopper, easily to be cleaned.
With handwheel to adjust the height , easy to fill many kinds of weight.
With fixed screw installation, the material quality won’t be effected.
Process: Container in → container raise → fast filling，container
declines → weight reaches the pre-set number → slow filling → weight
reaches the goal number → container out.
Two filling modes can be inter-changeable, fill by volume or fill by weight. Fill
by volume featured with high speed but low accuracy. Fill by weight featured
with high accuracy but low speed.
Main Parameter:
|
Model
|
Unit
|
SFP
|
|
Packing Weight
|
G
|
1-500
|
10-2000
|
10-5000
|
|
Hopper
|
L
|
25
|
50
|
75
|
|
Production capacity
|
Bottle/h
|
500-2000
|
|
Quantitative error
|
%
|
≤ 100g,≤±2%; 100 –
500g,≤±1%;≥500g,≤±0.5%
|
|
Source voltage
|
V
|
3P AC208-415V 50/60Hz
|
|
Air consumption
|
m3/min
|
0.05m3/min
|
|
Gas supply pressure
|
MPA
|
0.4-0.6
|
|
Consumed power
|
KW
|
1
|
1.5
|
2.5
|
|
Total Weight
|
KG
|
130
|
260
|
350
|
|
Overall Dimensions
|
MM
|
2000×700×1850mm
|
2000×970×2030mm
|
2000×1010×2174mm
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
