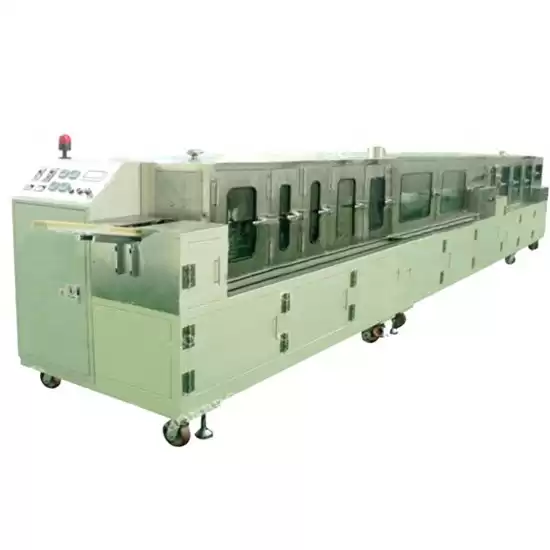

Automatic Battery Cleaning Machine for Cylinder Cell with PLC Control

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Certificate CE ROHS Certificate

Automatic Battery Cleaning Machine for Cylinder Cell with PLC Control




Functions
 Apply to clean a stain on the surface of a cylindrical battery, oil stains, electrolyte and other dirt, rust-proof and drying.

Features
 PLC auto control, touch screen man-machine dialogue, temperature setting, speed Settings such as convenient operation and setting.
 Use more sections of cleaning method, paragraphs independent type water tank, no mutual pollution cleaning fluid.
 Independent control cleaning area and smear oil region, the oil won't mix with water.
 The machine running on the safe, stable and reliable control, easy to operate.
 Air knife type structure remove water, batteries remove drip efficient, cell surface without rust after cleaning.
 Use brush roller, rotary roller batteries 360 degrees, spray, decontaminate effective.
 Imported fuel injectors, fuel injection spray type, to ensure that the batteries uniform coating oil, effectively protect the batteries steel shell surface.
 Cleaning area water added at the bottom of the plate, chain plate is set to the discontinuous segment, the dry area to prevent the water into the dry area.

Technical Parameters(for reference)

ITEM

MAIN PARAMETERS

Measures

(L*W*H):5700*1100*1450mm

Weight

About 1.8T

Power

AC380V*3P/50Hz,15kw

Air source

0.6Mpa,10L/S

Applicable range

18650/26650,

Capacity

60PPM

Action

99.5%



Battery Cleaning Machine
