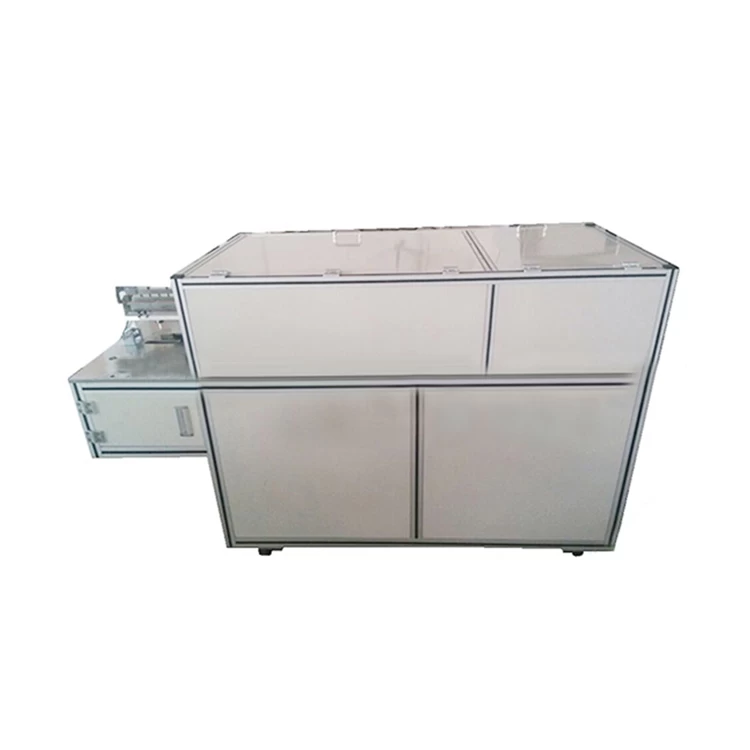

Automatic Battery Edge Cutting, Folding And Hotting Machine For Pouch Cell Battery Equipment
SPECIFICATIONS
This machine is anautomatic three in one machinefor polymer battery edge cutting, folding(Trimming) and hotting(Perming).
It is mainly used for Lithium pouch cell appearance molding process.
1.1 Suitable for soft packing lithium battery automatic trimming, edge folding and hot edge shaping
1.2 The trimming mechanism space can be adjusted to adapt to different width of battery
1.3 The machine can display and adjust the temperature of side hotting ,with abnormal alarm function
1.4 Cam drive, high speed and accuracy
1.5 Import PLC, touch screen control display, import LCD thermostat, error of ± 2 ℃
|
Model
|
Automatic Battery Edge Cutting, Folding And Hotting Machine
TOB-ACFH-300
|
|
Source voltage
|
AC220V, Single phase. Customized according country request
|
|
Power
|
1.8KW
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Compressed air
|
0.6MPa, 5L/min
|
|
Output
|
500-1800EA/H
|
|
Cutter length
|
320mm
|
|
Suitable battery size
|
Length 0-300mm, Width 23-150mm, Thickness 8-11mm
|
|
Edge folding thickness
|
0.19-0.3mm
|
|
Edge cutting accuracy
|
±0.10 mm
|
|
Parallelism between cutter
|
0.05mm
|
|
Knife hardness
|
HRC≥58°
|
|
Cutter knife life
|
1 000 000times
|
|
Dimension (L*W*H)
|
1700*620*1100mm
|
|
Weight
|
600kg
|
