Automatic beverage can seamer with liquid nitrogen injection

Can seamer with Liquid nitrogen injector for tin cans, small can,  beverage cans.

Sealing machine and liquid nitrogen doser





               Automatic beverage can seamer with liquid nitrogen injection

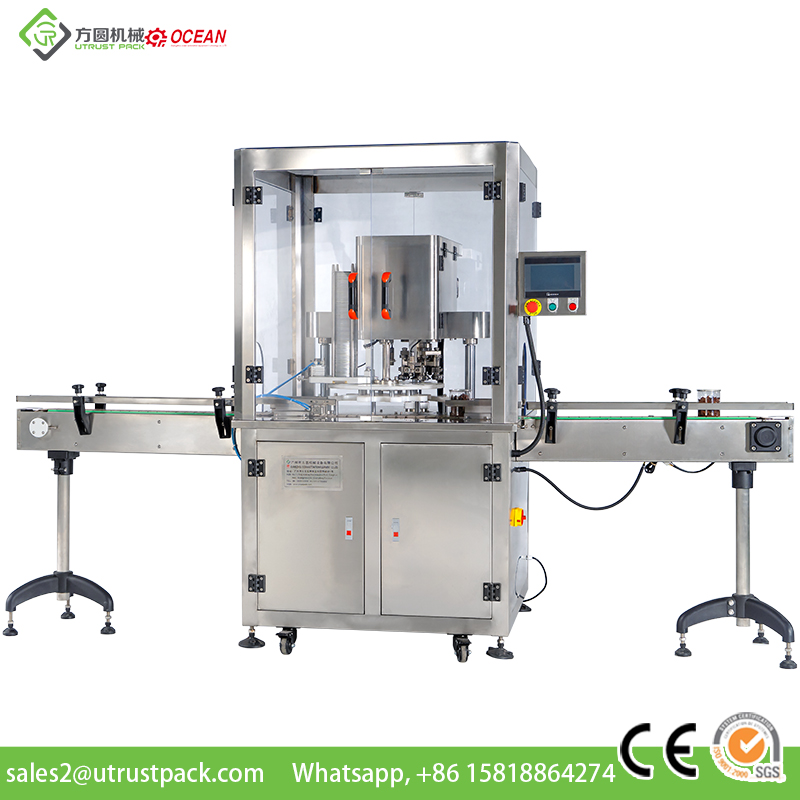

Automatic can seamer

 beverage can seamer

 beverage can seamer

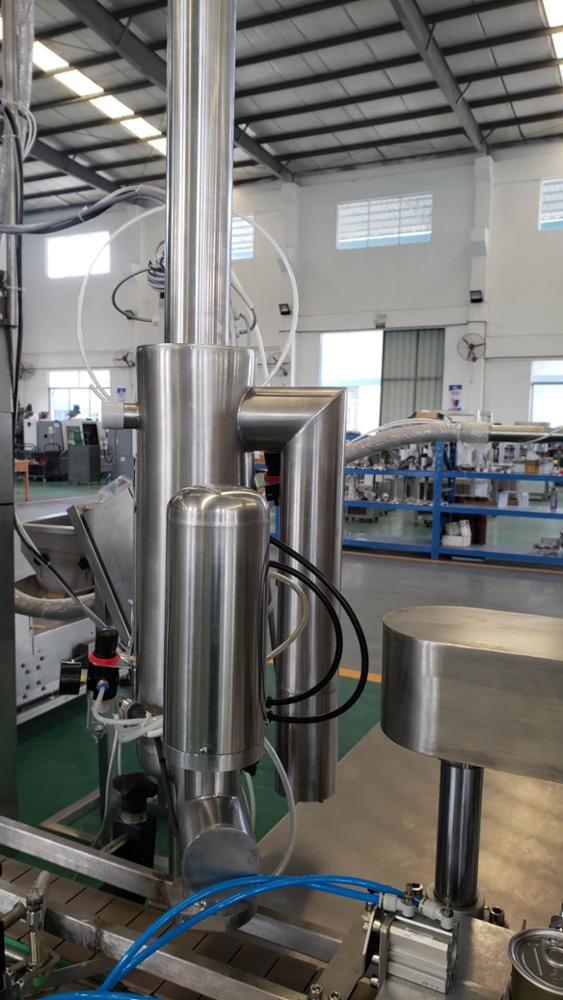

Liquid nitrogen injector

nitrogen injector


Liquid nitrogen injector specifications

1, Liquid nitrogen is formed by Minus 195.8 degrees.
2, Liquid nitrogen gasify and volume expansion 700 times, extrude the air out and form vacuum in the can, increase the aluminum can/pet can internal pressure to make sure the food shelf life and keep good looking for better transportation and store.
3, Discrete Dosing up to 1200 containers per minute
4, SoftDose Compatible TIPTOPTECs proven technology for hot fill,and granular applications.
5, Extend Shelf Life, minimize oxygen levels
6, Reduce Nitrogen Consumption, measurable and repeatable liquid doses

Notice, Liquid nitrogen will gasify, so it won't be any moisture left in the dry food.

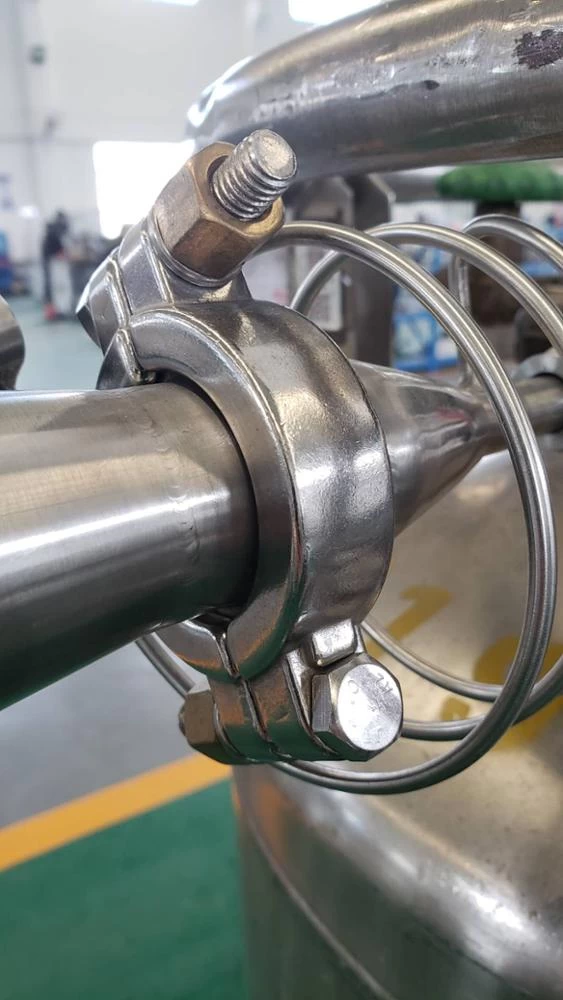

nitrogen injector details.png

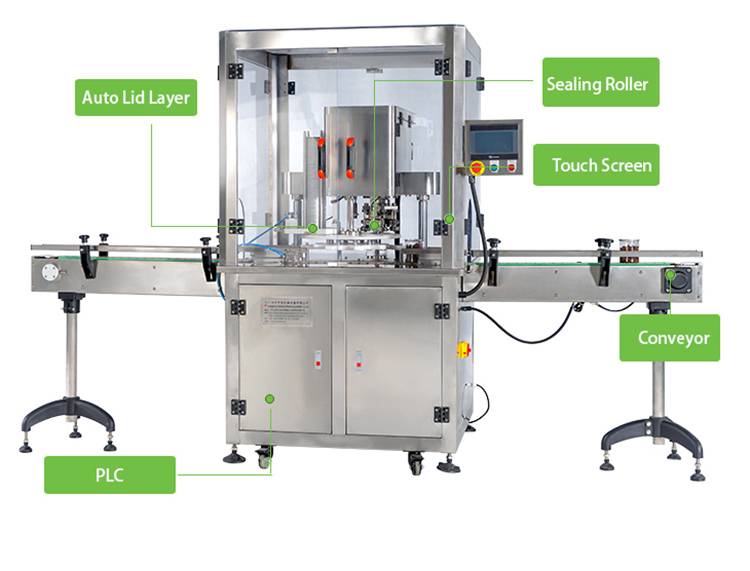

 Can seamer specifications

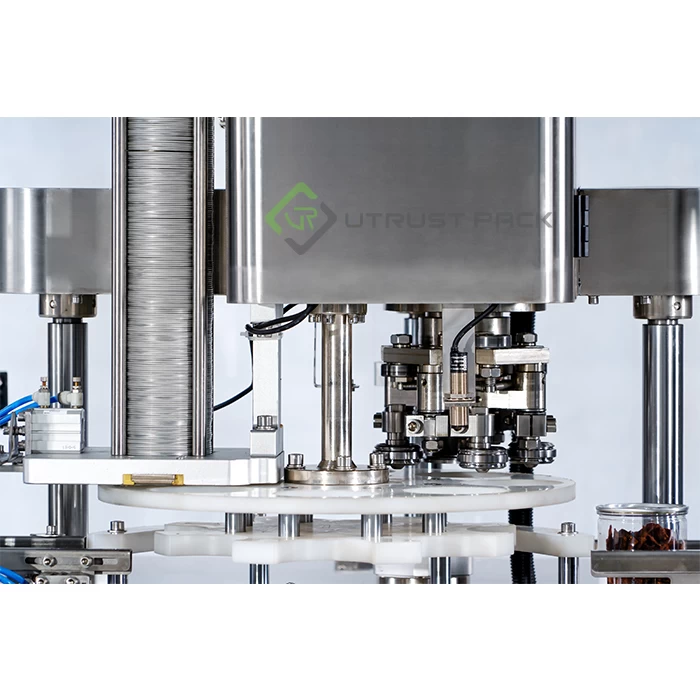

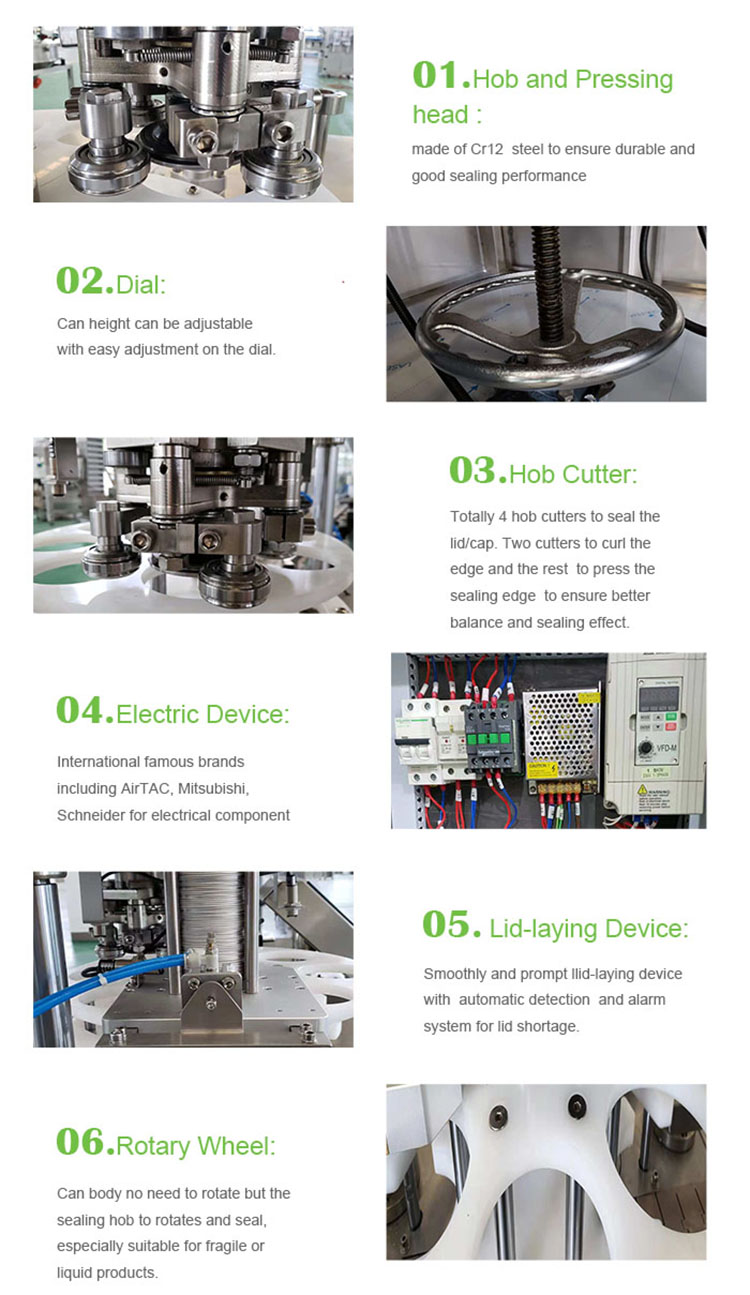

1. The machine is controlled by PLC system and touch screen for easy and durable operation . Four seaming rollers around the chuck for better balance. The seaming rollers will never be rusty with strong hardness because of the chrome steel material.

2. Easily to be connected with conveyor with other packaging machines such as filling, vacuuming, labeling machines and become part of packaging production line.

3. Go through strict quality control procedure before delivery including protocol of the seam dimensions and seam leakage test.

Name Cans Sealing Machine
Sealing number  1
Sealing Speed  30 - 50 cans/ min
Sealing Height  40-200mm (Adjustable)
Applicable can diameter  40-150mm
Air sourse

 0.6-0.8MPa

Power  1.5KW
Weight  500KW
Size 3000(L)*900(W)1800(H)mm
Voltage  220V,50Hz

Contact Details


Machines Processing


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



FAQ
1, What is your Installation Services? 2, What about your Guarantee of quality?
User manual and videos to support for installing, debugging, operation of the liquid nitrogen can seamer, it will indicate you how to use this machine well The machine is 1 year warranty, all this liquid nitrogen can seamer machine part can be replaced within 1year if broken (not including man made)
3, If we have very special request for the production line,could you help me to do the design? 4, Can I visit your factory?
Experienced mechanical designer customized-design provided.   Yes, welcome please.
5, If we have samples of new products, can you help to analysis and design the machine? 6, Do you have certificate?
Yes, Our technical department can help to analysis, design and test the new products you offered. Yes, we have some, like CE / SGS.
