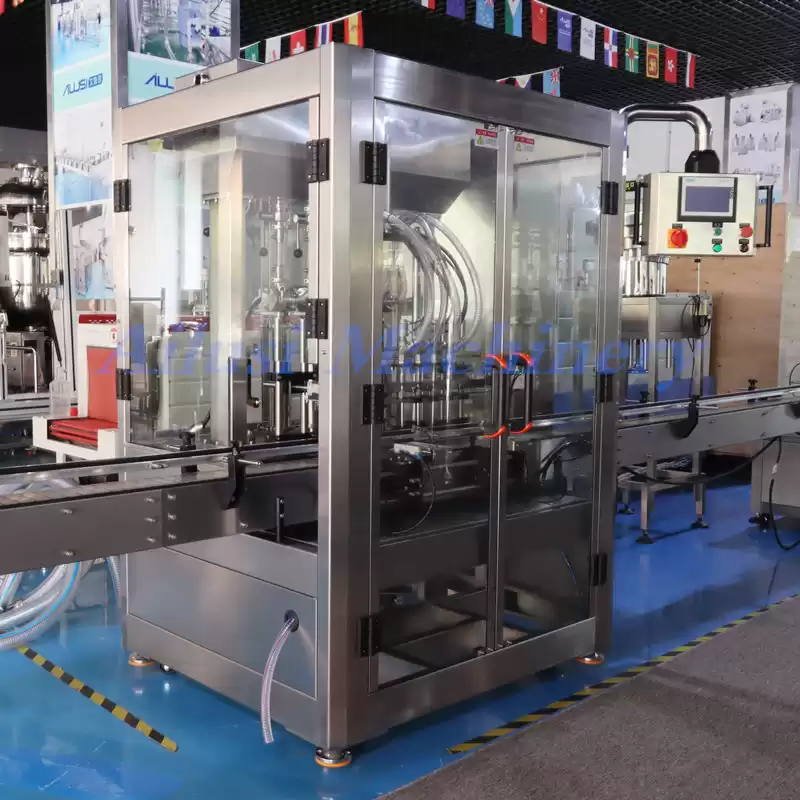

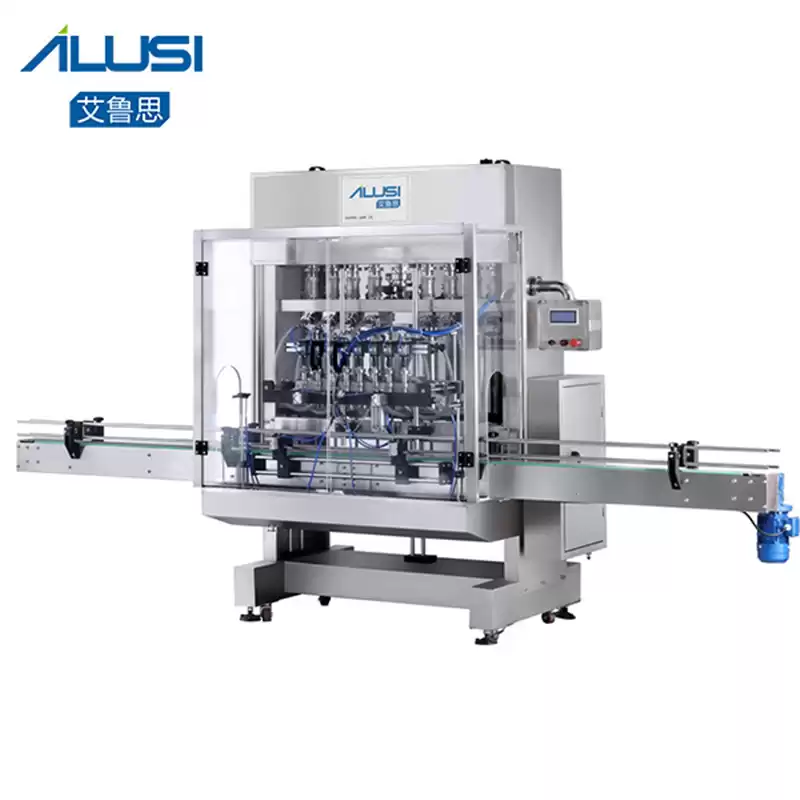

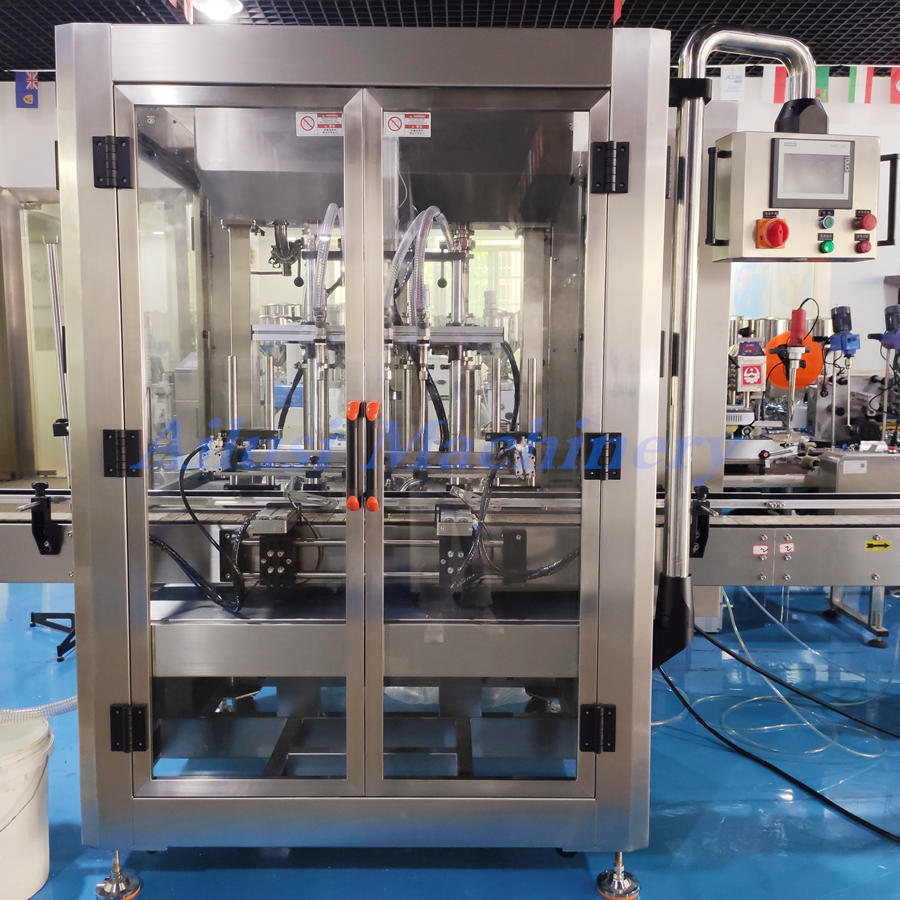

Liquid filling machine can realize automatically fill. The filling volume, filling velocity, filling precision, filling height, and filling position can be adjusted by the machine.
Composition:

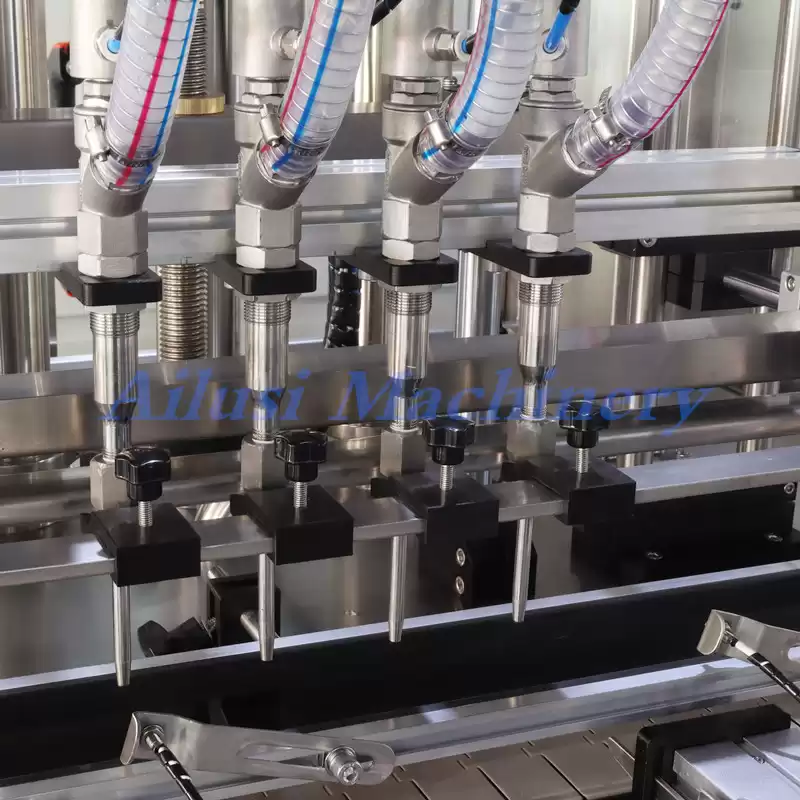

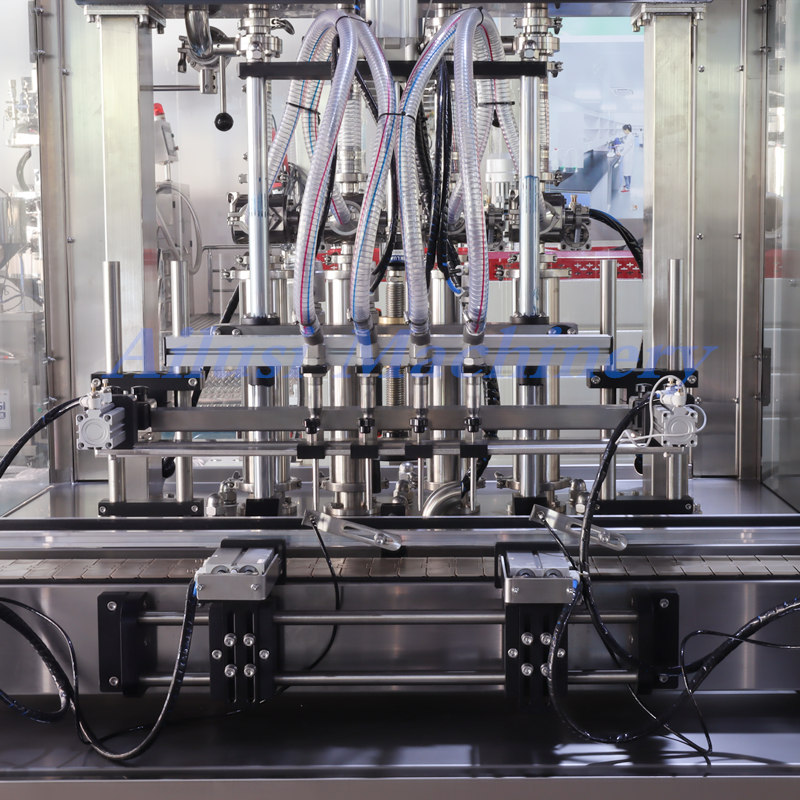

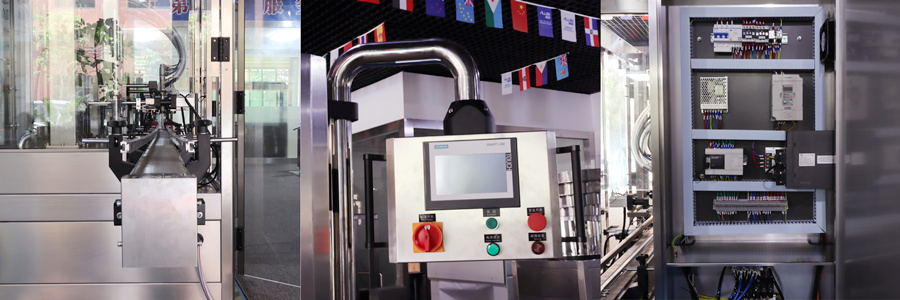

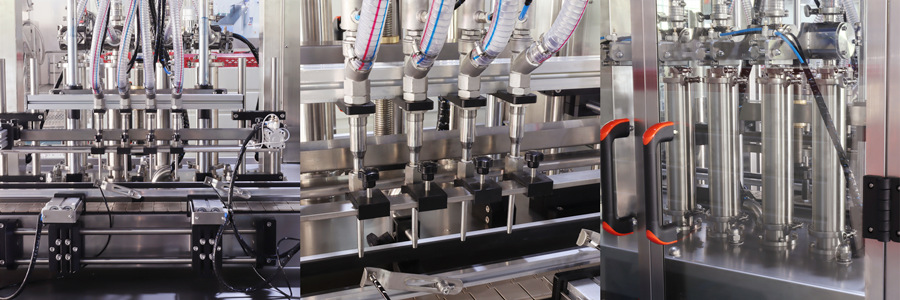

Automatic Liquid Filling Machine is mainly composed of storage tank, the main control cabinet, operation panel, filling the lifting frame parts, pneumatic filling nozzle part, the detection switch& sensor, selector lever, conveying hose, a signal line, power line and other components and accessories. The equipment adopts the modular combination of installation, the main parameters and the set was completed in the operation panel.
Note: When the device is working, require a labor constantly place bottles in front of the equipment, make sure to keep filling.( or choose Rotary Bottle Unscrambler)
Parameter:
|
Product
Name
|
Automatic Bottle Filling Machine
|
|
Applicable
Industries
|
Cosmetic
& Daily Chemical & Food & Pharmaceutical, etc.
|
|
Filling
Products
|
Shampoo, Hand Sanitizer, Hand Wash, Dsinfectant Liquid Detergent, Juice, etc.( If you have no idea, kindly contact with us)
|
|
Filling
Accuracy
|
≥99 ％
|
|
Filling
Heads
|
2, 4, 6, 8, 10, 12
Nozzles for different filling speed (Custom Service. Please inquiry with us)
|
|
Filling
Range
|
5-60ml, 10-120ml, 20-250ml,
50-500ml, 100-1000ml, 250-2500ml, 500-5000ml, etc.
|
|
Material
|
Connect parts are made for 316L Stainless Steel, other parts are made for & 304Stainless Steel
|
Main Features:

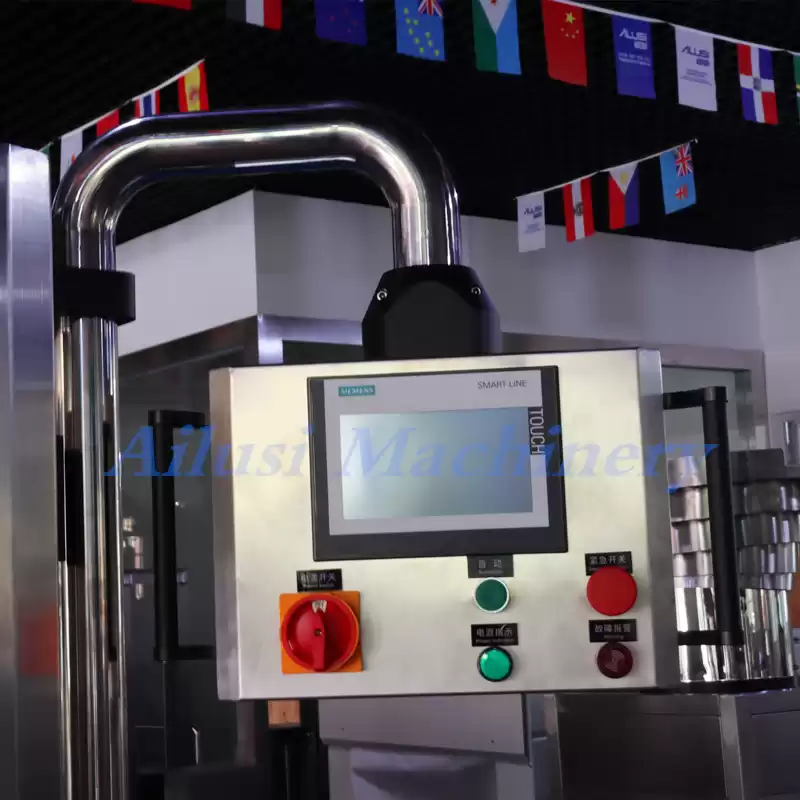

1. PLC combined with touch screen control system with Liquid Filling Machine. Intelligent controlling system reduces operation errors. No filling when there are no bottles. High filling accuracy & No overflow. High filling speed and stable transmission. With strong counting function.

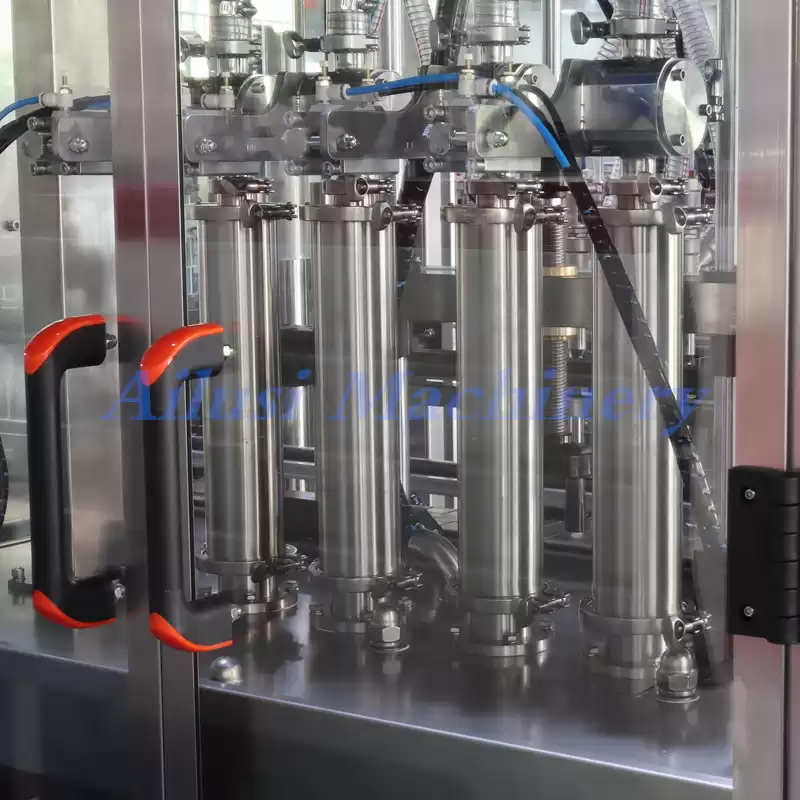

2. Servo Motor driven piston pump filling, Servo Motor driven piston and main cylinder for filling nozzle up and down.Multi-range filling (optional lifting filling structure is also optional). pneumatic induction positioning filling, can be equipped with pneumatic pump for automatic liquid delivery.
3. With regular filling, no bottle no filling, filling quantity/production counting function etc features.
4. No need to change parts are required for different bottle sizes.(Within the parameters）
5. The whole Liquid Filling Machine is made of food grade 304 & 316L stainless steel which provides a clean and hygienic environment.
6. The filling part is easy to disassemble and transfer. It usually only takes 20 minutes to replace parts.
7. Simple Operation. Anyone can operate proficiently in a short time. Easy to Clean.
8. It can be easily moved with installation of casters.
9. Option: Anti-corrosive filling machine,Automatic Capping Machine, Automatic Double-Side Bottle Labeling Machine, etc.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Maintenance service.
