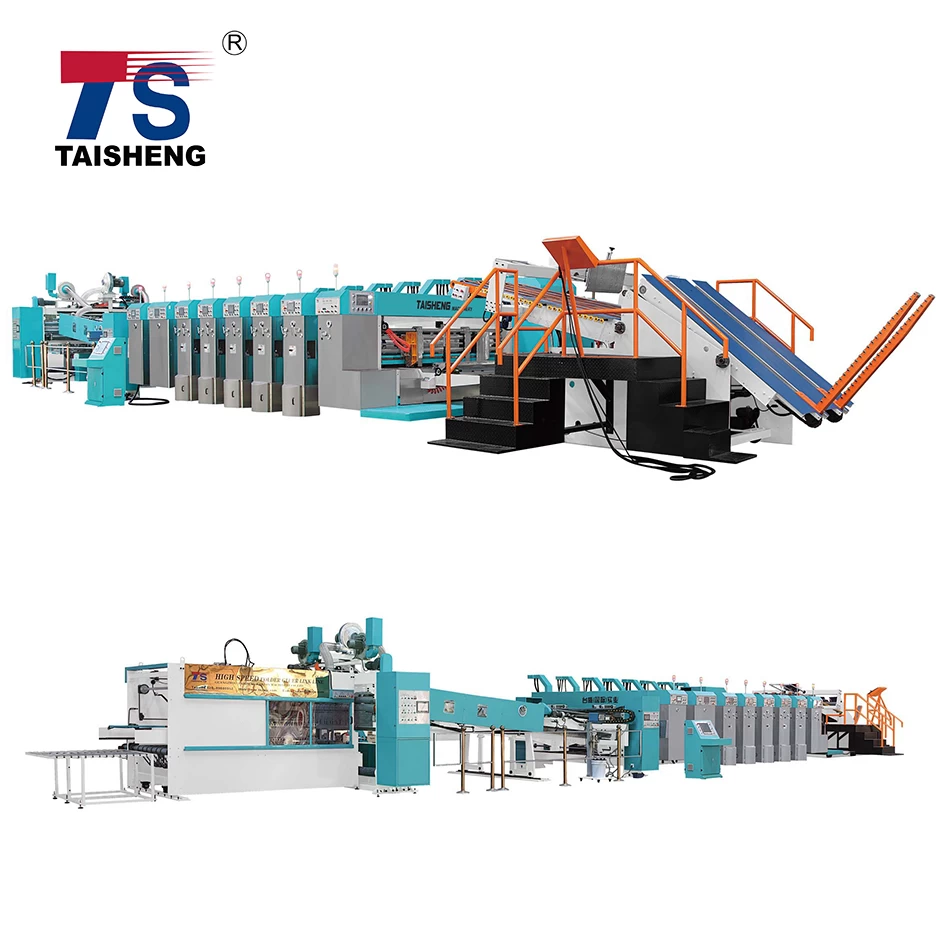

Automatic High Speed Casemaker TSV
The automatic case maker machine is a fully automatic and intelligent high-tech product, this high speed corrugated case maker machine can save labor and improve efficiency, from cardboard to cartons, once done . TSV3 case maker is the first choice for modern chemical plants.
Model
|
TSV3-920
|
TSV-1224
|
TSV-1628
|
Max. Machine Speed (pcs/minute)
|
350
|
280
|
180
|
Max. Feeding Size (mm)
|
900×2000
|
1200×2400
|
1600×2800
|
Jump Feed Max. Cardboard Size(mm)
|
1200×2000
|
1500×2400
|
1900×2800
|
Min. Cardboard Size(mm)
|
300×600
|
365×600
|
450×600
|
Max. Printing Size
|
900×1960
|
1200×2360
|
1600×2760
|
Min Slotter Blade Space(Male)(mm)
|
150×150×150×150
|
150×150×150×150
|
150×150×150×150
|
Min Slotter Blade Space(Female)(mm)
|
240×65×240×65
|
260×65×260×65
|
260×100×260×100
|
Max Slotting Deep(mm)
|
250
|
300
|
400
|
Automatic Casemaker Machine Products Display

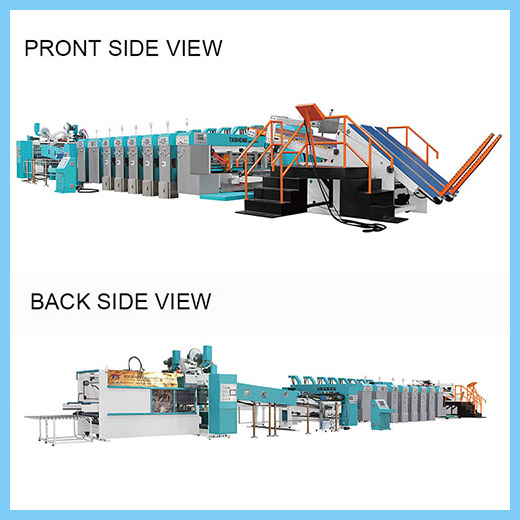

![Corrugated case maker machine Corrugated case maker machine](/storage/uploads/images/202001/21/757b39b44e1860512968401e0f4f6d88.jpg)

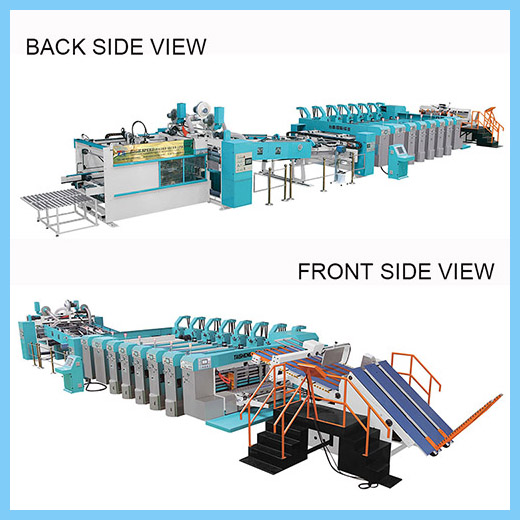

![Case maker machine with printing slotting die cutting Case maker machine with printing slotting die cutting](/storage/uploads/images/202001/21/023f63d76adac9cdbfa99a8a5d9f9317.jpg)

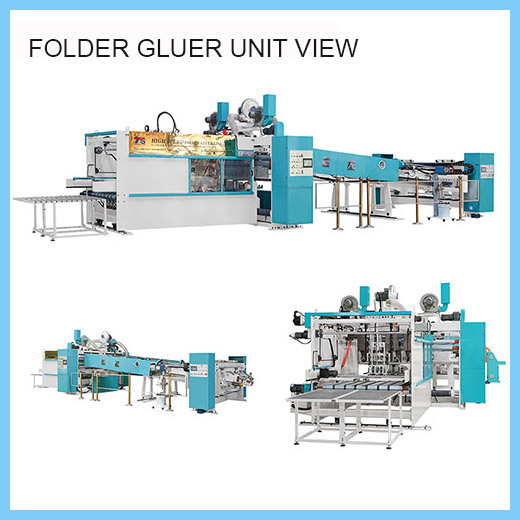

![Case maker machine good quality Case maker machine good quality](/storage/uploads/images/202001/21/3220b633e57e10d1fe55d9f5f8bd8afe.jpg)
