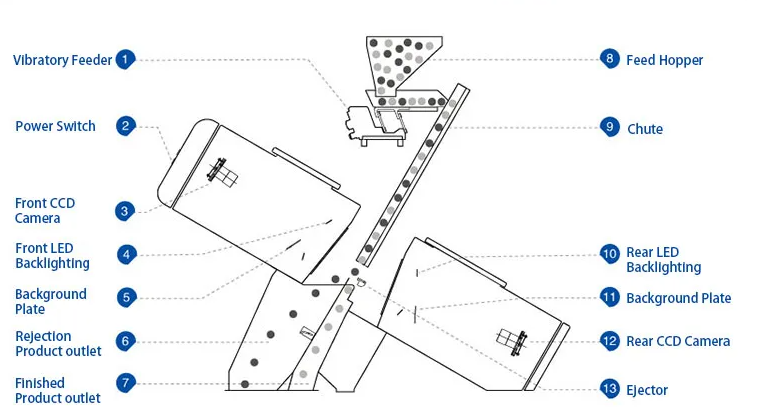

Color Sorter Working Principle
1.A Plastic Optical Sorting Machine uses optical sensors and camera technology to identify and sort different types of plastics based on their color, shape, and composition.
2.The machine works by passing the plastic materials through a belt conveyor where they are scanned by the optical sensors and cameras.
3.The sensors quickly take multiple images of each plastic object and process the data to identify the object's chemical composition, size, shape, and color.
4.The software then compares the identified features with pre-set parameters and directs the machine to divert each object to its appropriate bin or container.
5.The bins may be located at different points along the conveyor belt, and the machine may use air jets, mechanical arms, or other mechanisms to sort the plastics into their respective containers.
6.The Plastic Optical Sorting Machine can handle large volumes of plastic waste in a short time and accurately sort different plastic types, thus facilitating recycling processes and reducing environmental pollution.

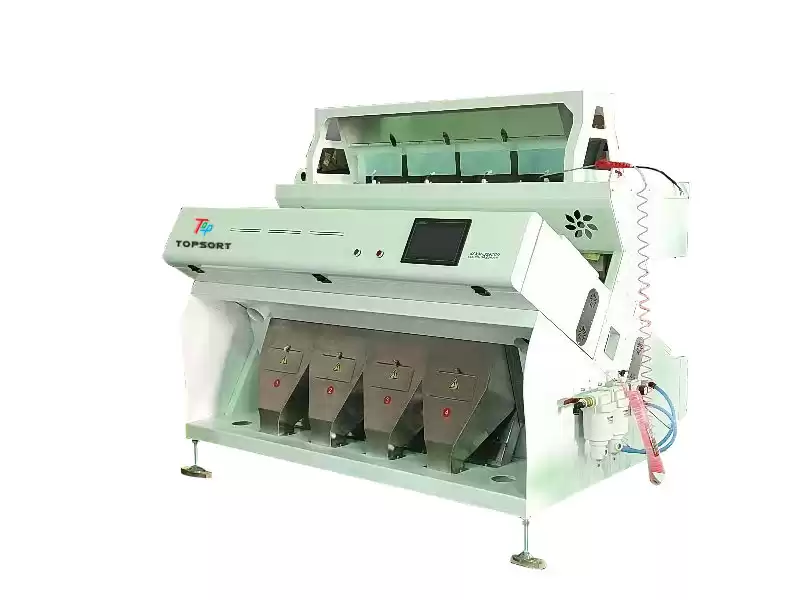

4 Chutes Plastic Optical Sorting Machine Features
♦ High-speed sorting: A plastic optical sorting machine can be designed to sort a large volume of plastics within a short time, increasing production efficiency.
♦ Precision sorting: The machine can accurately identify and sort different types of plastics based on their colors, shapes, and other physical properties, such as density, thickness, and transparency.
♦ Flexibility: The plastic optical sorting machine can work with various plastic materials, including PET Flakes, PVC, HDPE, LDPE, and PP.
♦ Elimination of contaminants: The machine can remove other materials, such as metal, glass, and paper, mixed with the plastic waste.
♦ Minimal human intervention: The machine can work autonomously, minimizing the need for human intervention.
♦ Ease of use: The plastic optical sorting machine can have a user-friendly interface that allows operators to adjust settings and monitor the process.
♦ Energy-efficient: The machine can be designed to consume minimal energy, reducing operation costs.
♦ Compact design: The plastic optical sorting machine can have a small footprint, saving space in the factory.
♦ Low maintenance: The machine can have a sturdy design and use durable components that require minimal maintenance.
♦ Cost-effectiveness: The plastic optical sorting machine can provide a cost-effective solution for plastic waste recycling, reducing waste disposal costs and generating revenue from reselling the sorted materials.

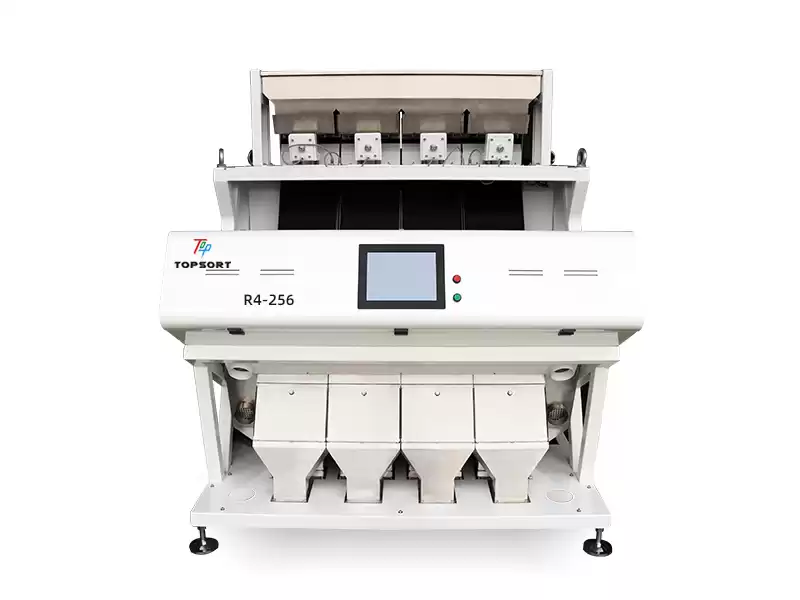

4 Chutes Plastic Optical Sorting Machine Technical Parameters
| Model |
R4-256 |
| Channles |
256 |
| Power |
2.4kw |
| Weight |
650kgs |
| Dimensions |
1986*1504*1760mm |
| Power voltage |
220V/50HZ/60HZ |
| Sorting accuracy |
99.99% |
| Capacity |
800-1200kgs/h |
| Air consumption |
<4.0m3/min |
| Air pressure |
0.6-0.8Mpa |

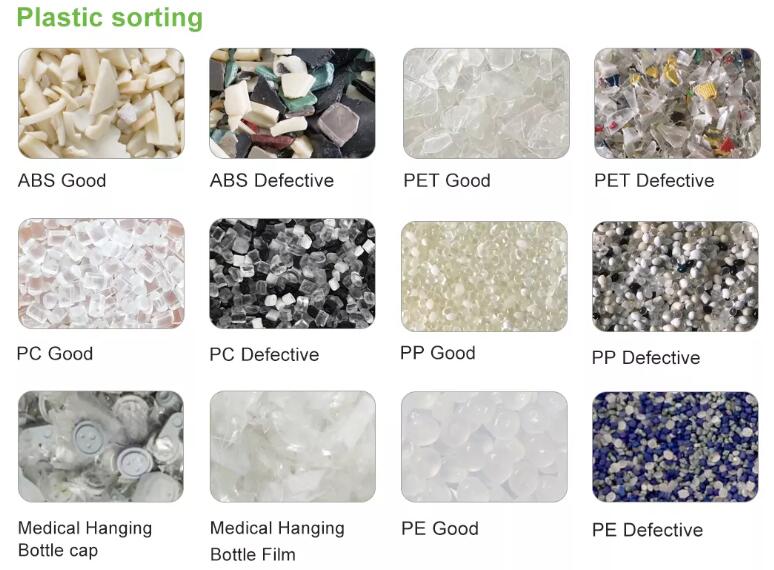

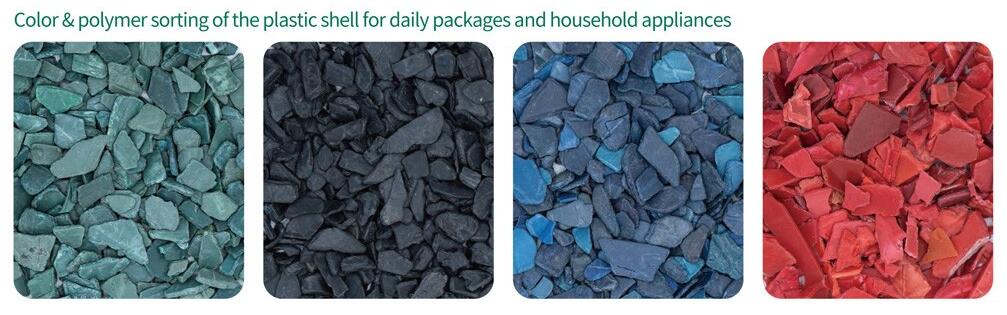

Superb Plastic Sorting Sulotions

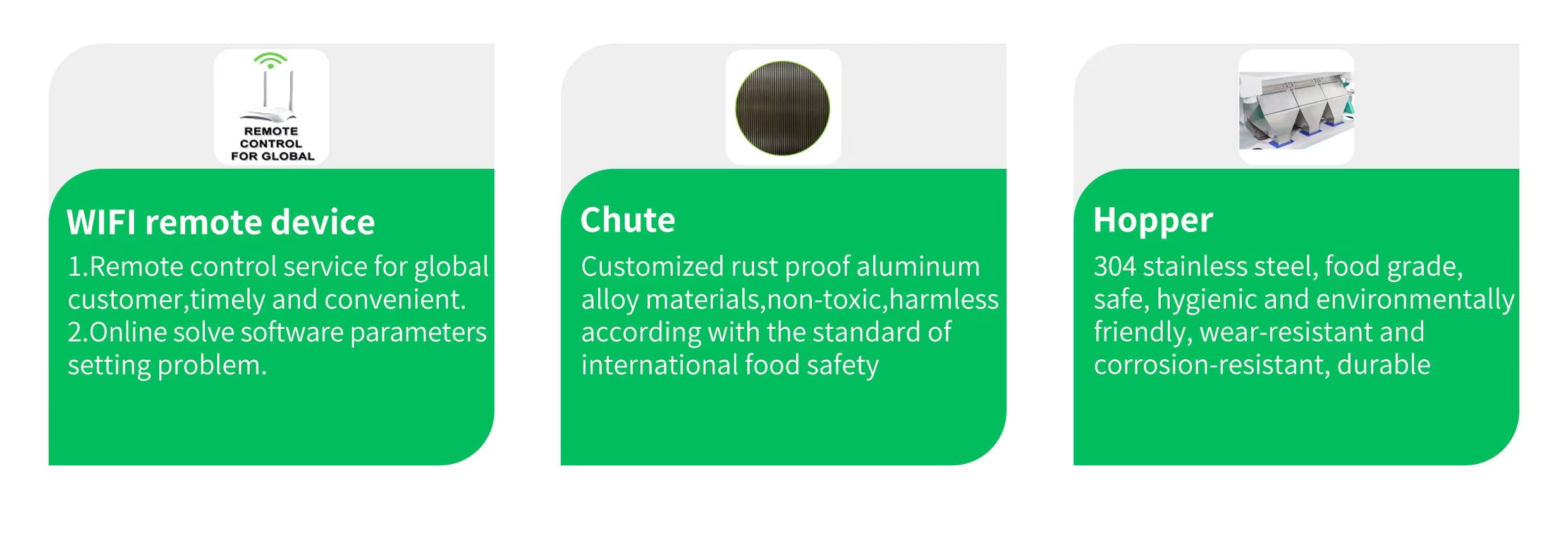

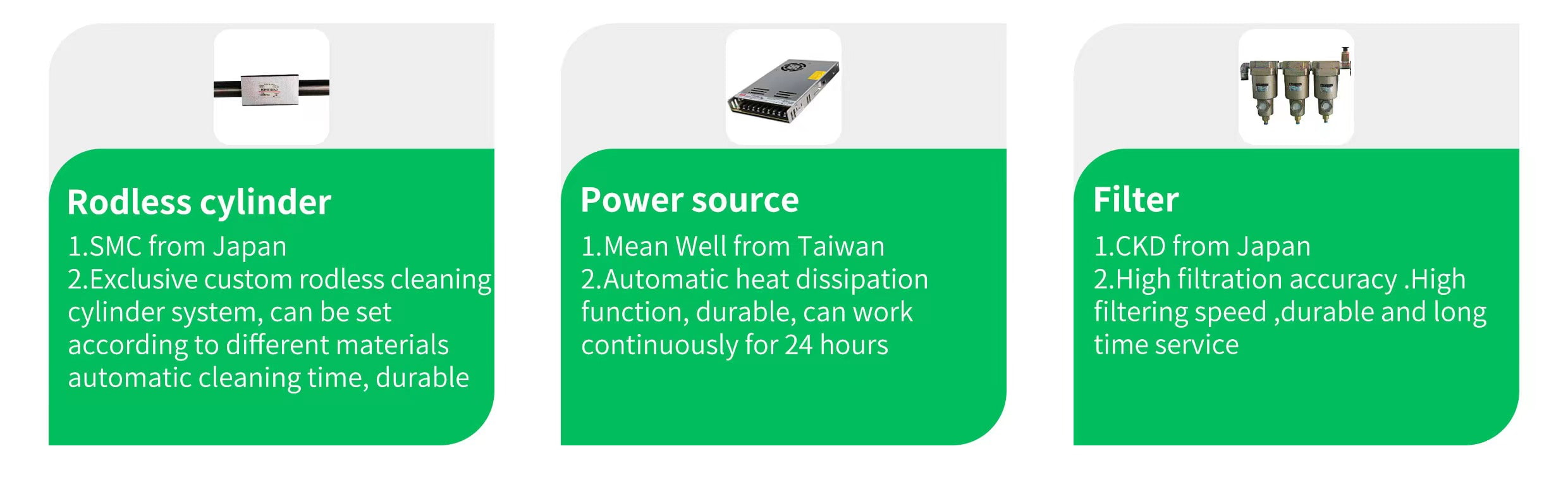

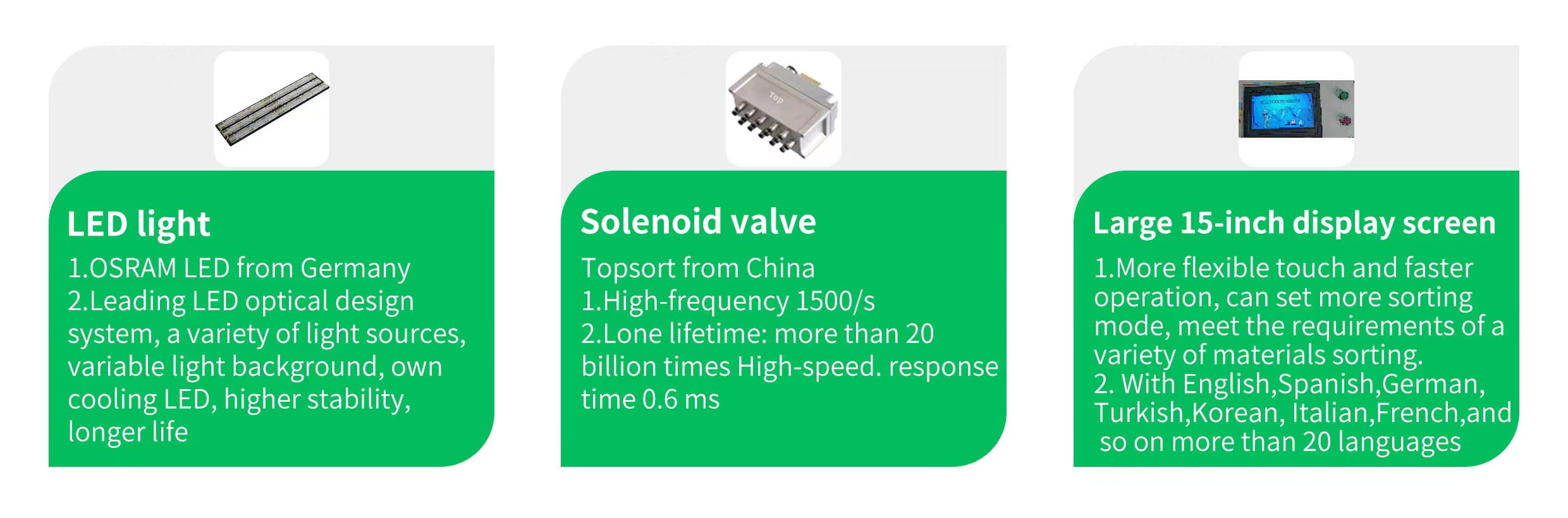

Our Color Sorter Machine Core Advantages

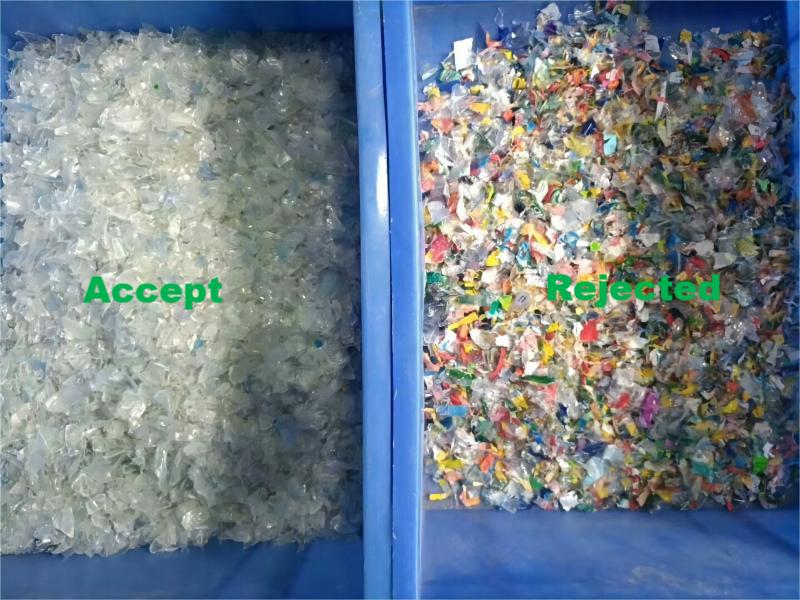

Sucessful Cases
Why Choose TOPSORT Color Sorter
Top technology

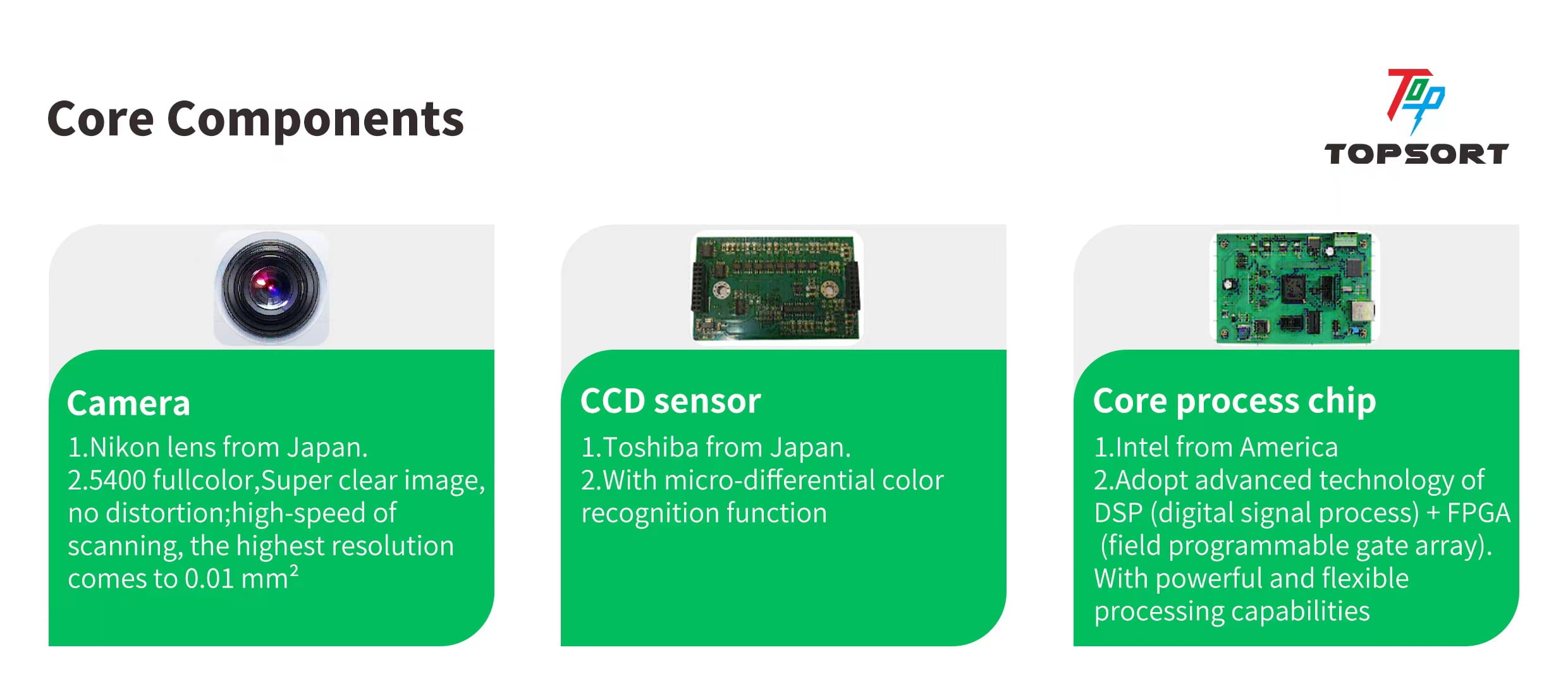

Adopt high-speed FPGA digital image processing technology, faster detection speed, higher recognition rate and high sorting accuracy.we have CCD color sorter and infrared color sorter for different sorting requests.
Top quality
Equiped with imported famous brand key components to guarantee the reliability.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote control for global
Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine
A wealth of experience
More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .

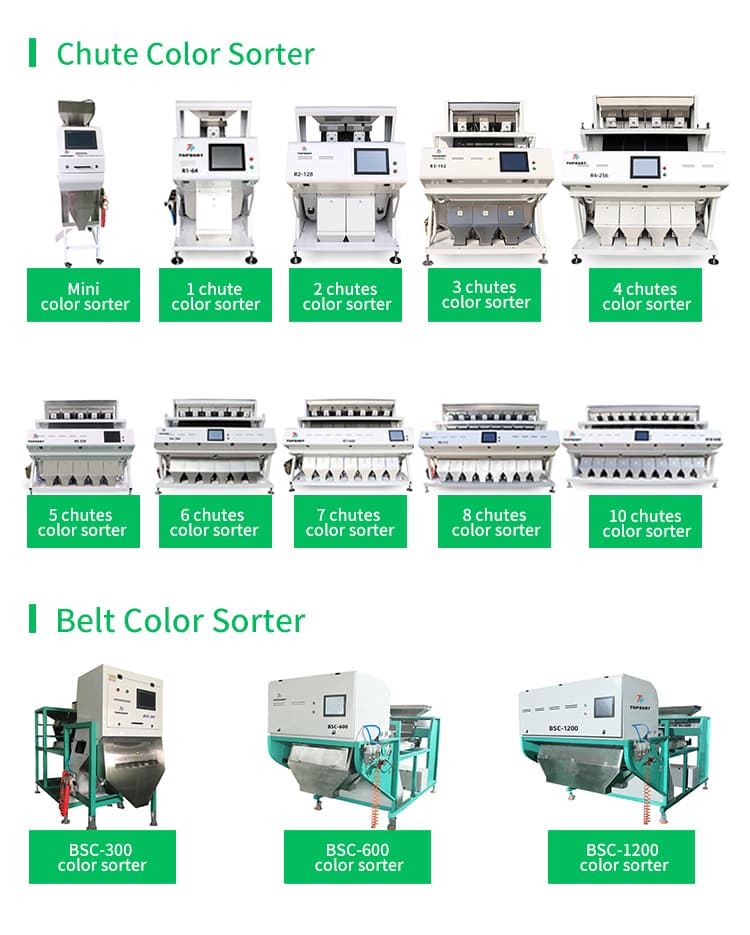

More models you can choose
