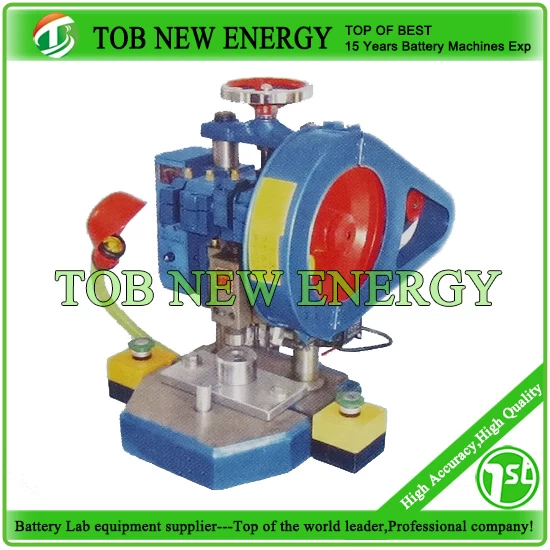

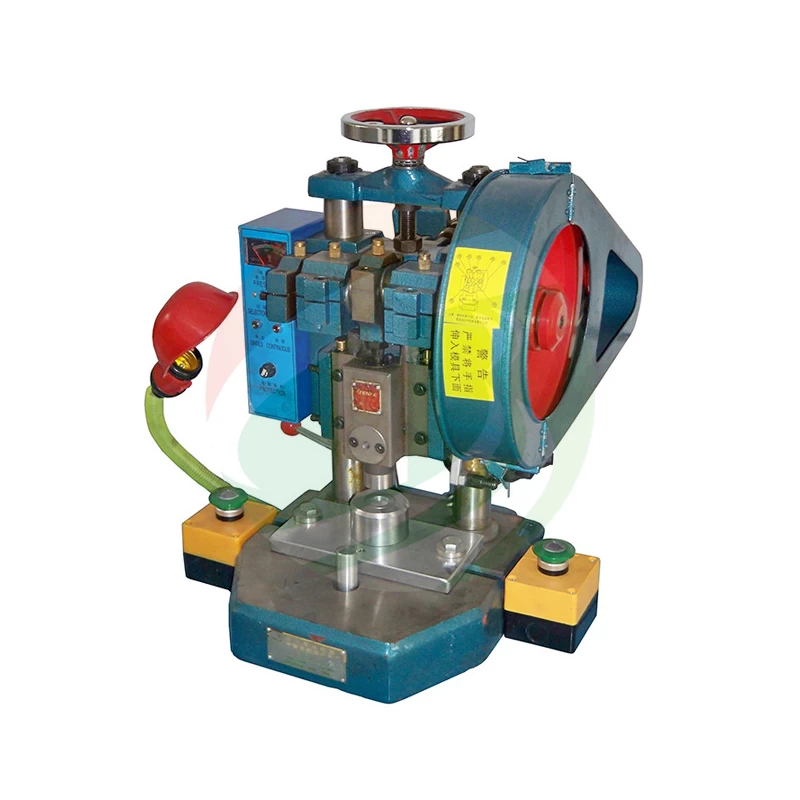

Compact Automatic Coin Cell Crimper Machine Used For CR2016, CR2032, CR2025,CR2430 Coin Cell Electric Sealing Process
SPECIFICATIONS
1 TOB-FKJ-20-E Automatic coin cell crimper is an electric crimping tool dedicated to button battery sealing process, with easy installation, packaging beautiful, good consistency, suitable for institutions of higher learning and enterprises experiment line.
2 This Automatic coin cell crimper is mainly used for Coin cell CR2016, CR2025, CR2032, CR2430 sealing process.
|
Model
|
Automatic Coin Cell Crimper TOB-FKJ-20-E
|
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
|
Power
|
370W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Suitable battery
|
CR2016, CR2025, CR2032,CR2430, All kinds of button cell
|
|
Sealing/ crimping accuracy
|
±0.02mm
|
|
Weight
|
About 90kg
|
|
Dimension(H*W*D)
|
500*400*540mm, 20″*16″*21″
|
|
Advantage
|
1 This automatic crimping machine is configured with high quality mould spring
in both upper and lower die, guarantee the product consistency
2 Equipped with humanized discharging device,
light by discharging the handle the finished product can be launched from the mould,
convenient for operation
3 Mould adopts High-quality chrome steel, vacuum quenching to HRC62 hardness
|
