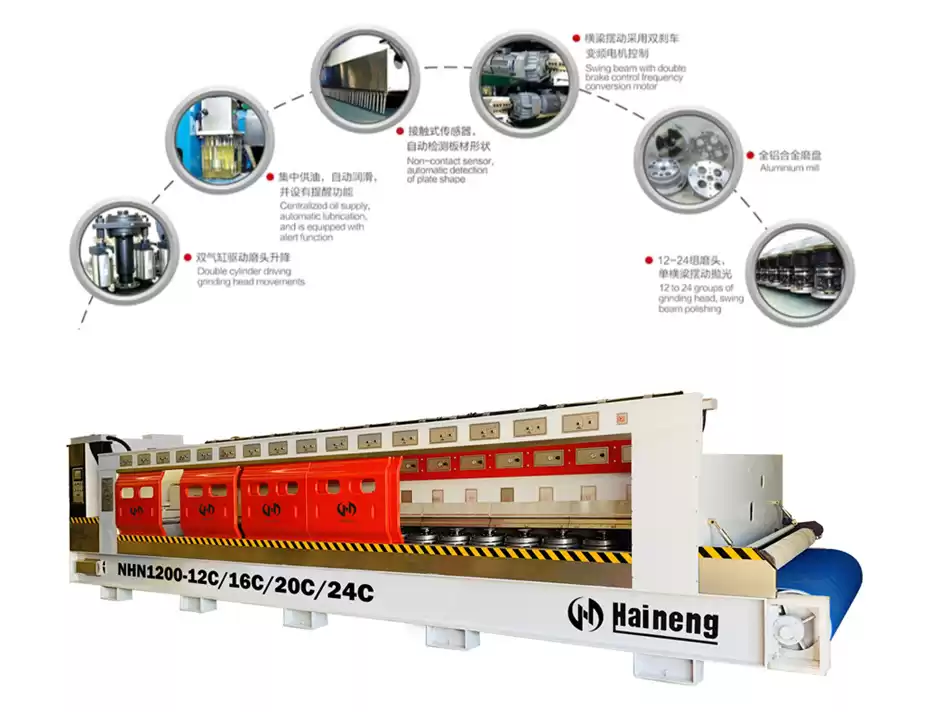

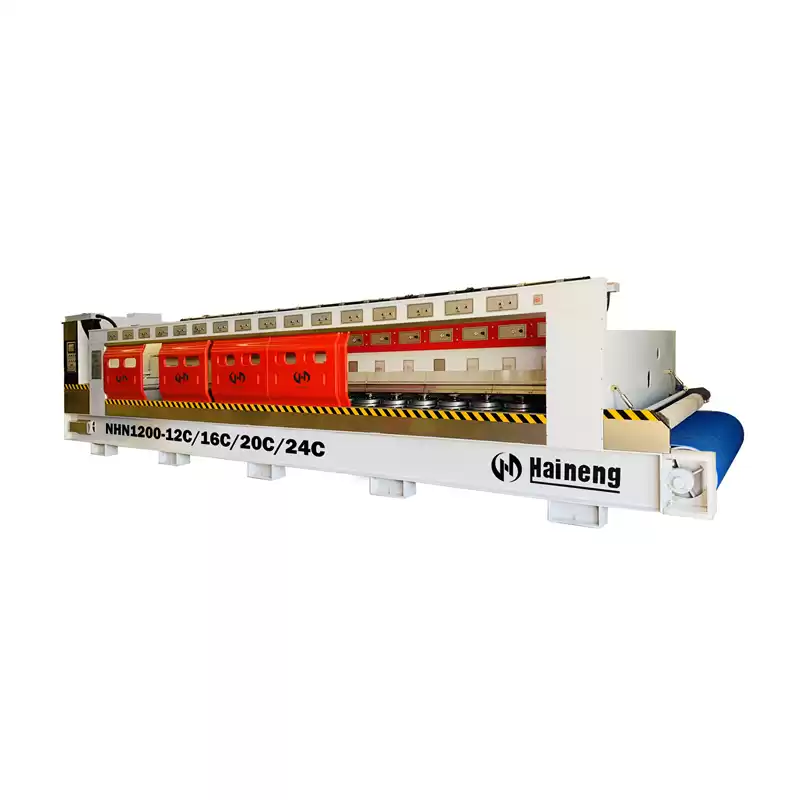

Product Introduction
1. Our company adoptsItalian advanced design and electric control system, combined with domestic and foreign markets, developed for granite slab automatic continuous polishing machine, using ordinary resin abrasive disk or triangle plastic.
2. The machine with moden design, generous appearance , stable performance , advanced operation control system , low failure rate , high efficiency and low consumption . Suitable for continuous polishing granite slab.
3. A complete set of equipment’ s raw materials with high quality cast steel, Electrical components, motor and speed reducer adopts Japan , Germany brands or domestic well - known brands.

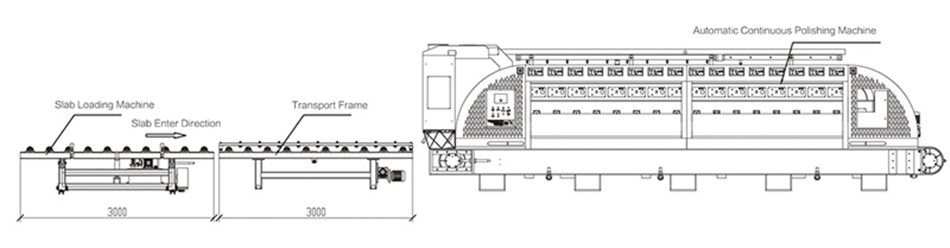

4. The whole equipment is equipped with automatic flap frame , automatic slab device , blow dry device and the transition frame. PLC control system , LCD touch screen terminal for man - machine interface to set parameters , equipment operation process with troubleshooting tips and automatic lubricating remindersystem
5. Slab conveyor belt , work speed of the transverse beam is controled by frequency converter; polishing heads’ work pressure, the grinding width of slab is adjustable within the set point. Automatic identification of slab shape , polishing heads lifting automatically according to the slab shape . The spindle system adopts advanced sliding sleeve lifting structure . performance reached the domestic leading level .
Technical Parameters
|
Type
|
unit
|
SMT-16C
|
SMT-20C
|
SMT-24C
|
|
Quantity of polishing machine
|
pcs
|
16
|
20
|
24
|
|
Useful working width
|
mm
|
400-1300
|
400-1300
|
400-1300
|
|
Useful working thickness
|
mm
|
10-50
|
10-50
|
10-50
|
|
Transfer speed
|
mm/min
|
0-4000
|
0-4000
|
0-4000
|
|
Water consumption
|
m³/h
|
21
|
23
|
25
|
|
Motor power of grinding head
|
kw
|
7.5×12+9×4
|
7.5×16+9×4
|
7.5×20+9×4
|
|
Total power
|
kw
|
138
|
168
|
198
|
|
Overall dimension
(L×W×H)
|
mm
|
9200×2150×2200
|
10200×2150×2200
|
11400×2150×2200
|
|
Gross weight
|
kg
|
19000
|
21000
|
22500
|
