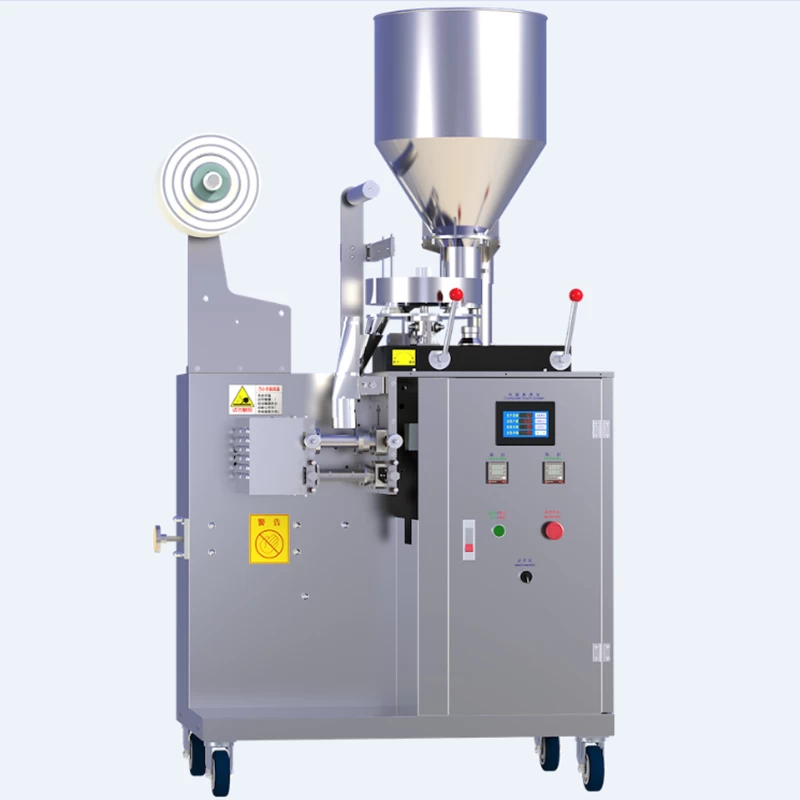

Automatic continuous type tea bag sachet packing machine
Customized And OEM Service Available
Discription
1.This automatic continuous type tea bag sachet packing machine Packing bag with lifting thread,Bags can be made automatically.Dose.Filling.Sealing.Cutting and counting functions.
2.This Tea Bag Packing Machine adopts touch screen operation, PLC control to change the bag length, no need to change the gear.
3.Packaging capacity: 3-10 g (1.6-26ml).
4.Packaging speed: 30-60 pcs/min (depending on the characteristics of materials)
5.Sealing form: three side sealing
6.Bag-making size: length: 50-80 (mm) width: 45-80 (mm)
7.Power supply: 220 v / 50 hz / 1.6 KW
8.Weight: about 350Kg
9.Overall size: 900*750*1750 (mm) (length * width * height)
Electrical configuration
|
NO
|
Name of electrical accessories
|
Brand
|
|
1
|
display
|
Yonghong
|
|
2
|
PLC
|
Yu sheng
|
|
3
|
Temperature control table
|
Hui bang
|
|
4
|
Stepper motor
|
Lei sai
|
|
5
|
switch
|
Chint
|
|
6
|
Proximity switch
|
Kori
|
|
7
|
Solid state relay
|
Meigeer
|
|
8
|
Main motor
|
Thunis
|
|
9
|
Slow down box
|
Jiacheng
|
|
10
|
Encoder
|
Rongde
|
