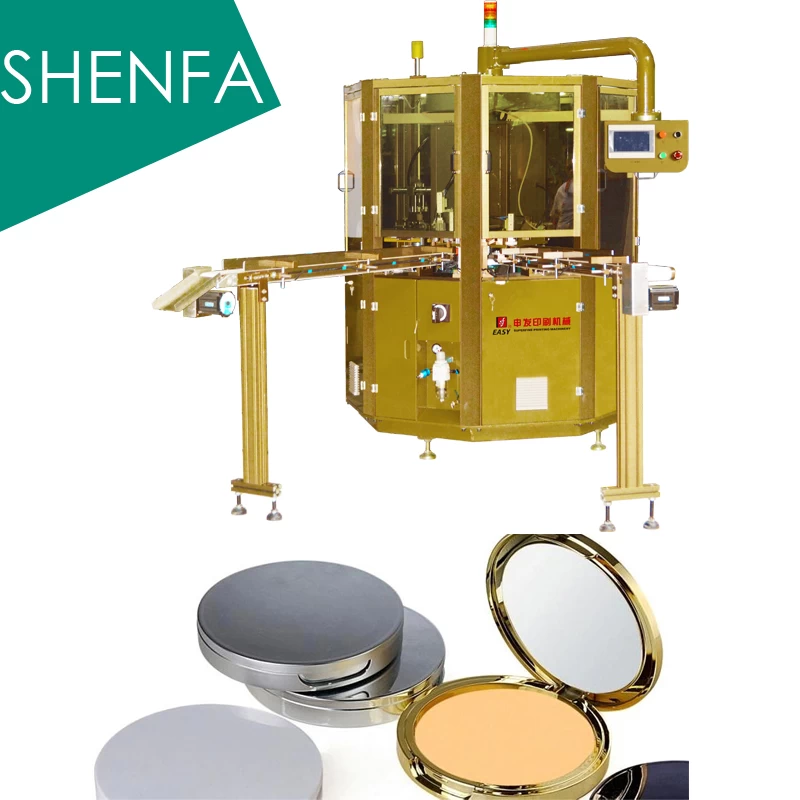

Automatic Cosmetic Plane Screen Printing&Hot Stamping Machine

Widely used for daily chemical and cosmetic industry, flat screen printing or hot stamping for round,square, oval products like make-up foundation boxes, storage boxes.



Technical data

Model   SF-PSR18 SF-PSR316 SF-PSR420
Product size (16-80)x(16-80)xH(10-50)mm (8-80)x(16-140)xH(10-40)mm (8-80)x(16-140)xH(10-40)mm
Max speed 45pcs/min 50pcs/min 50pcs/min
Air pressure 5-7bar 5-7bar 5-7bar

Dimensions

1450x1450x2000mm 1700x1700x2000mm 1850x1850x2000mm
Power AC380V 50/60Hz 7Kw AC380 50/60Hz 11Kw AC380V 50/60Hz 14Kw

Details

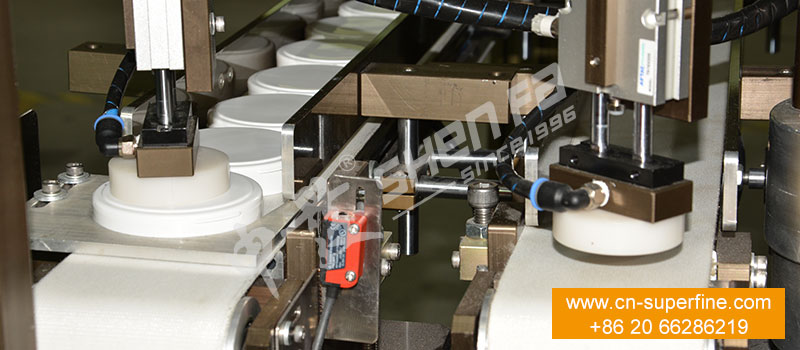

Automatic loading and unloading device

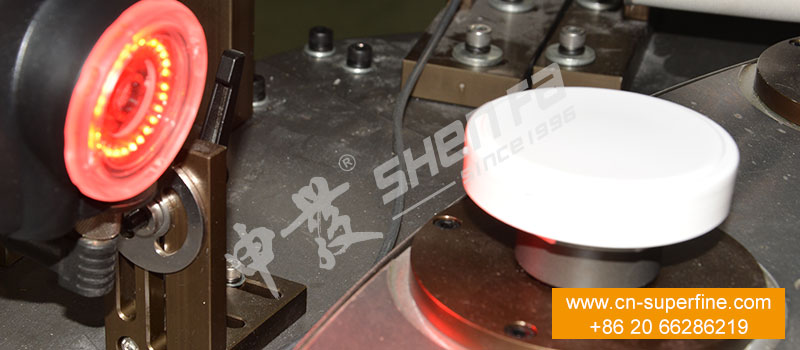

pre-treatment device

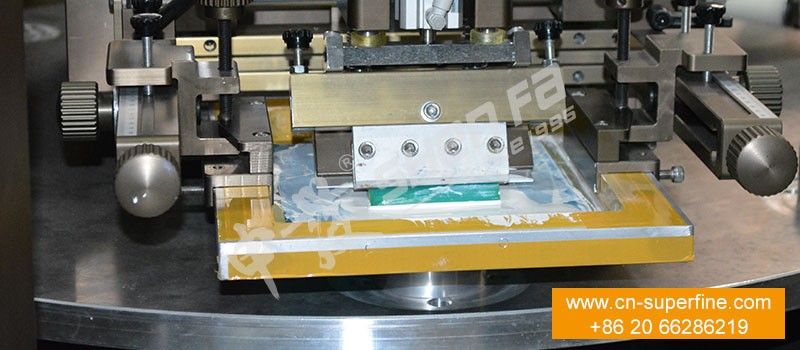

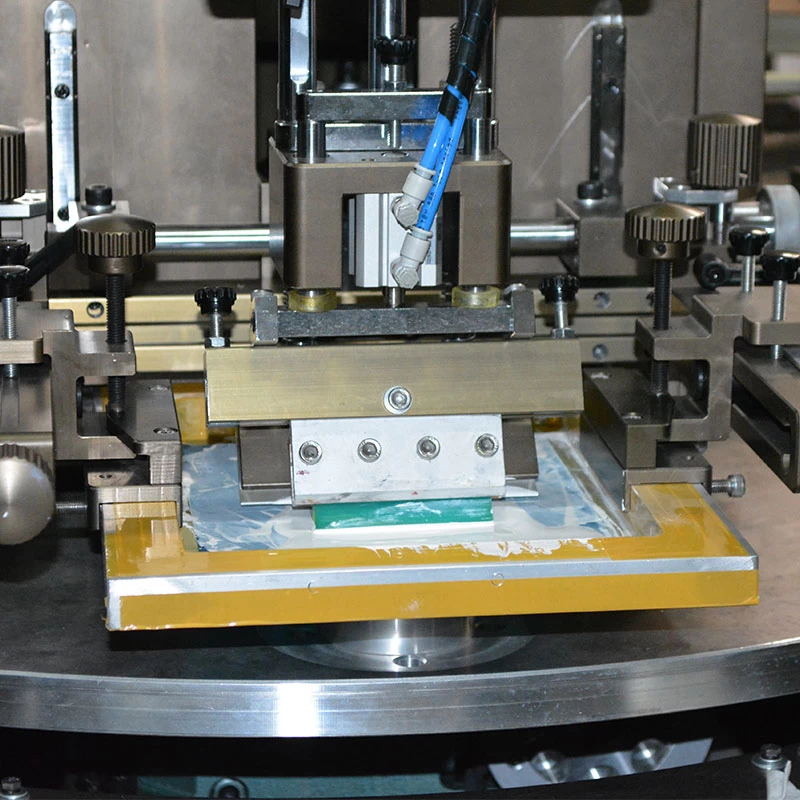

Screen printing unit

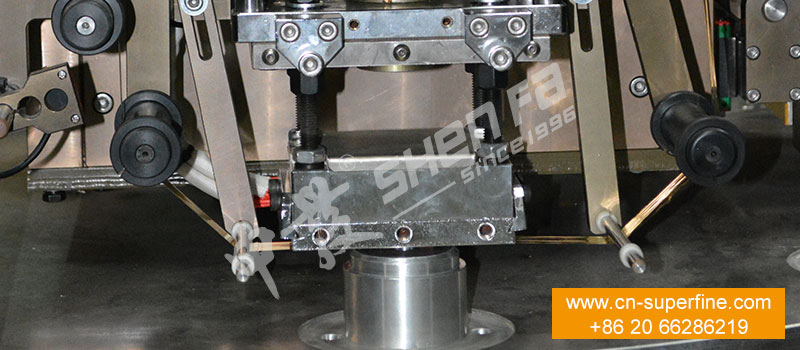

Hot-stamping unit


Samples
