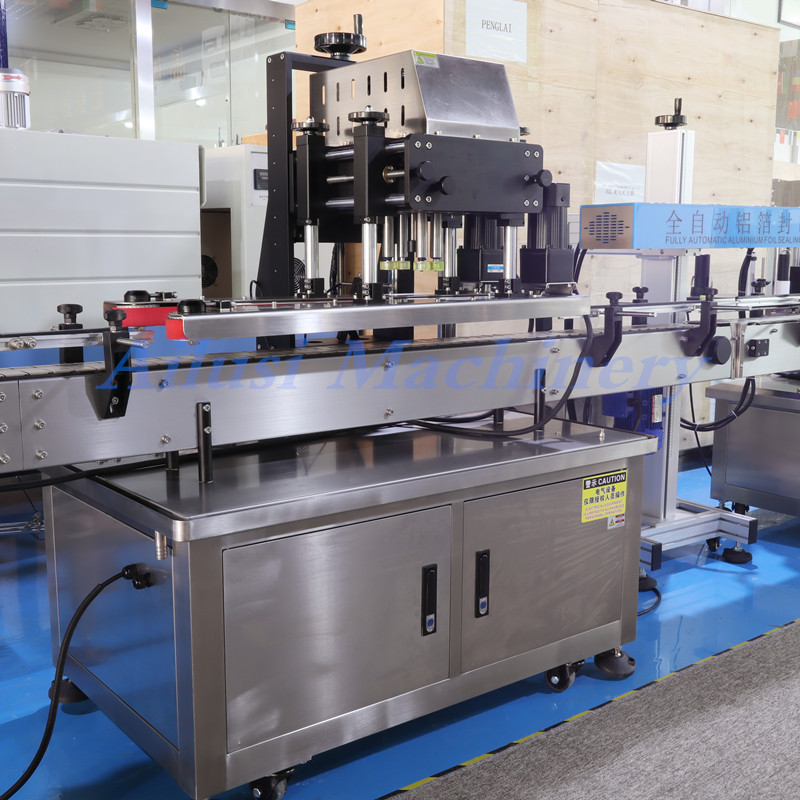

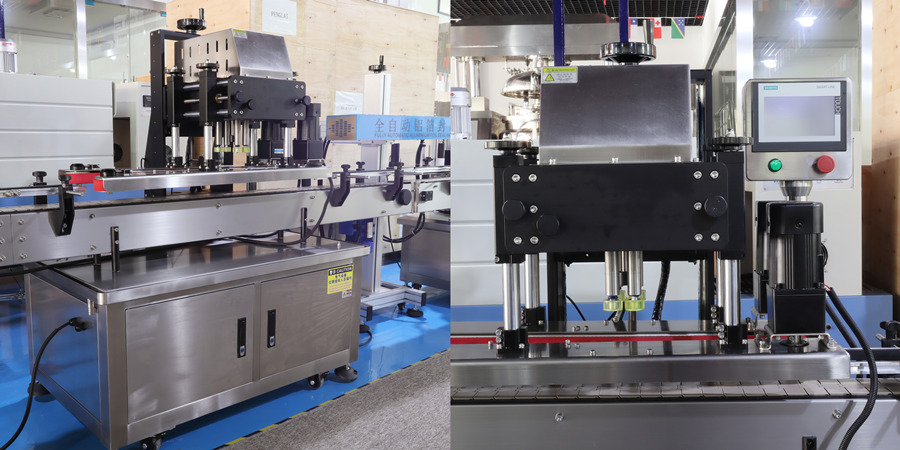

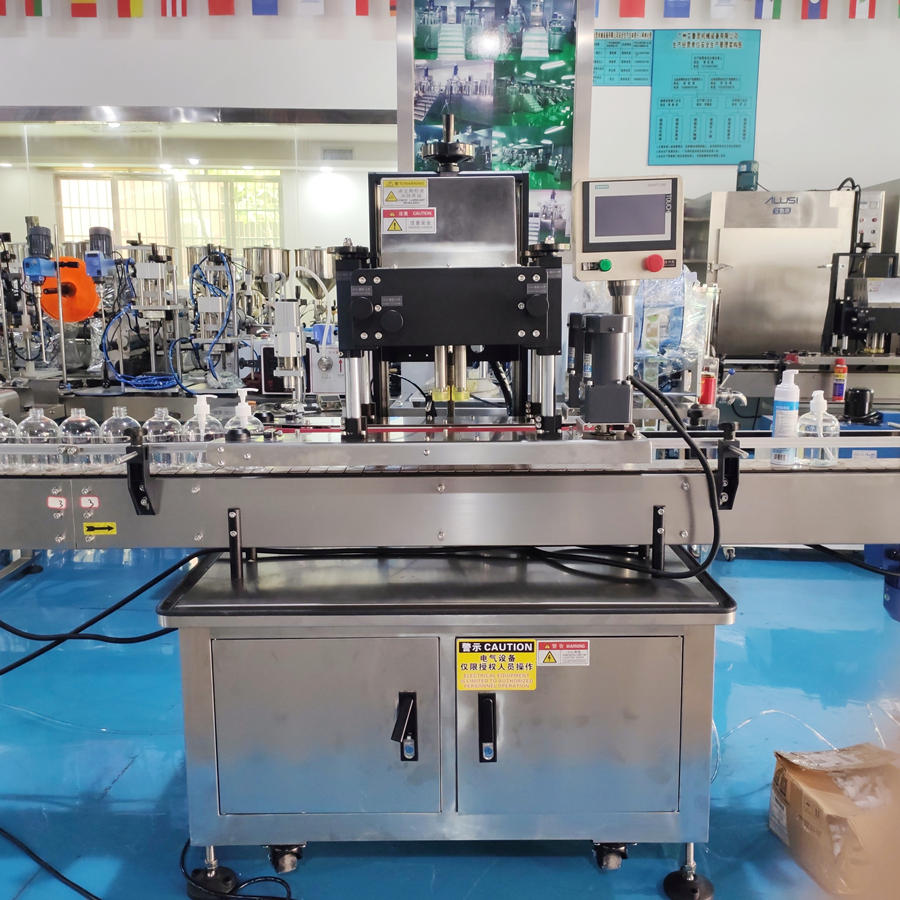

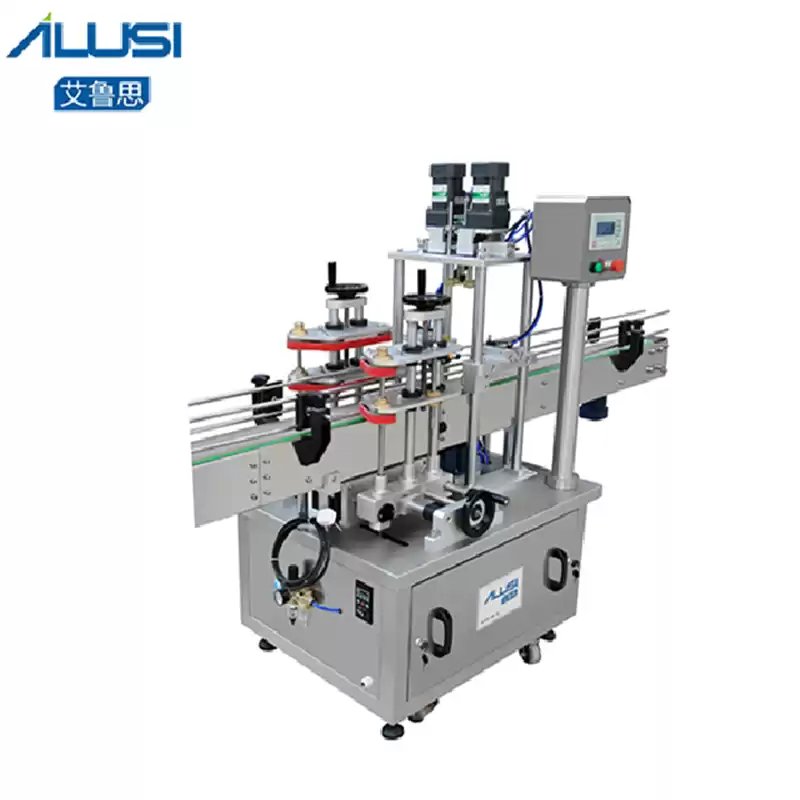

Main Features:

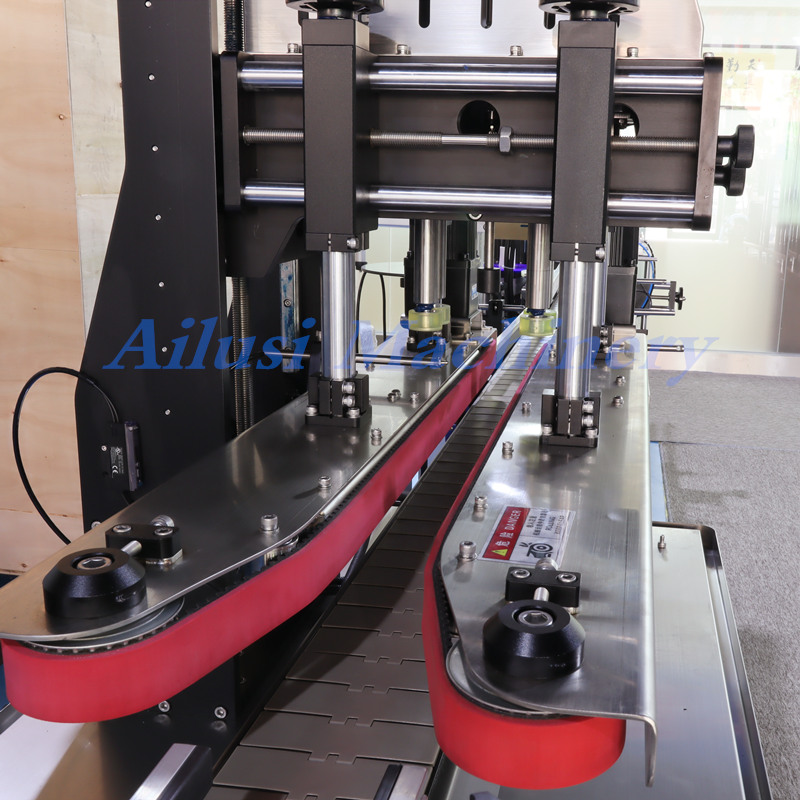

★ Wide range of application, electrical control movement, positioning device, easy operation, all kinds of bottle caps can be used, with the bottle cap guide mechanism, can ensure the consistency of the direction of the pump head.
★ Convenient adjustment, quick conversion bottle.
★ Easy to operate, better screw capping effect.
★ The operator can tighten the cap without damaging the cap by adjusting the torque, rotational speed and time of the cap
according to the material, style and tightness requirements of the bottle cap.
★ Beautiful and decent appearance, which adopts special polishing technology so that it is shining like a mirror, displaying
luxurious character.
★ This machine universal, suitable for bottles, bottle caps of a wide range of manufacturers to use.
★ The parts that contact the materials are all made of imported stainless steel. The interior surfaced of the vessel is subjected
to mirror polishing 300 EMSH, which is in accordance with sanitary requirements.
Components:

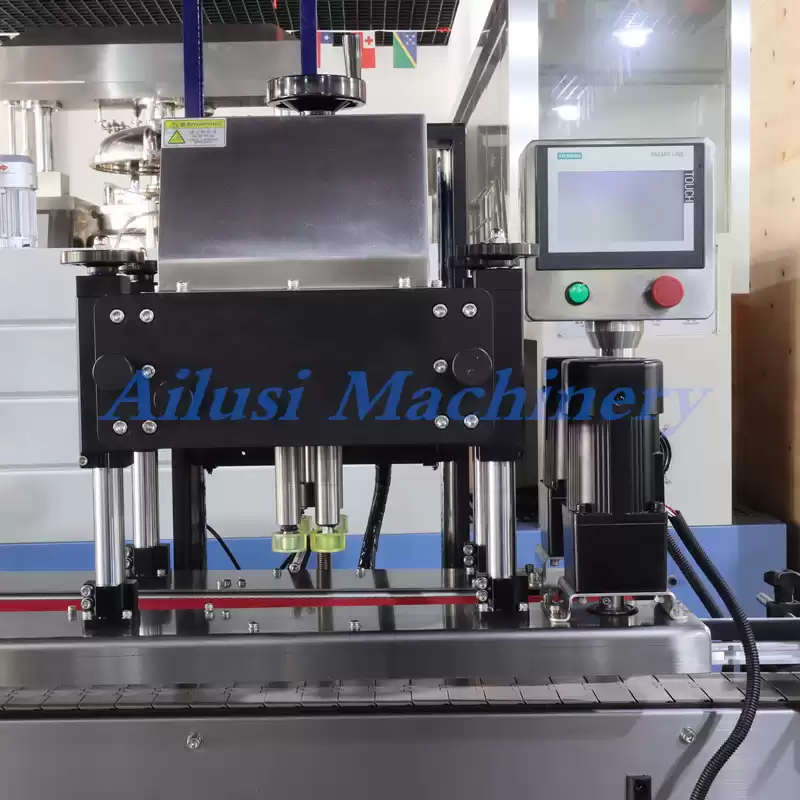

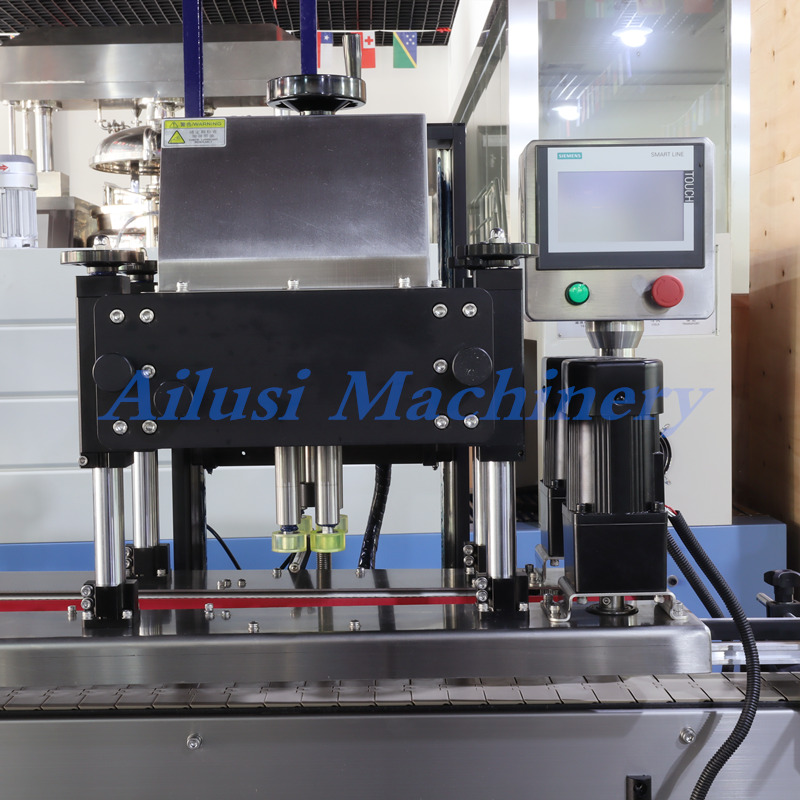

● PLC control system

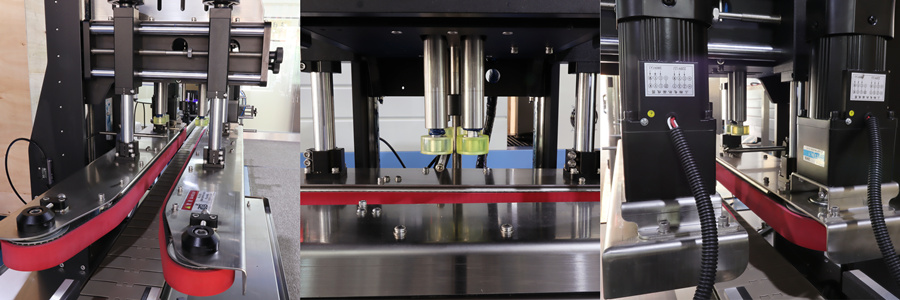

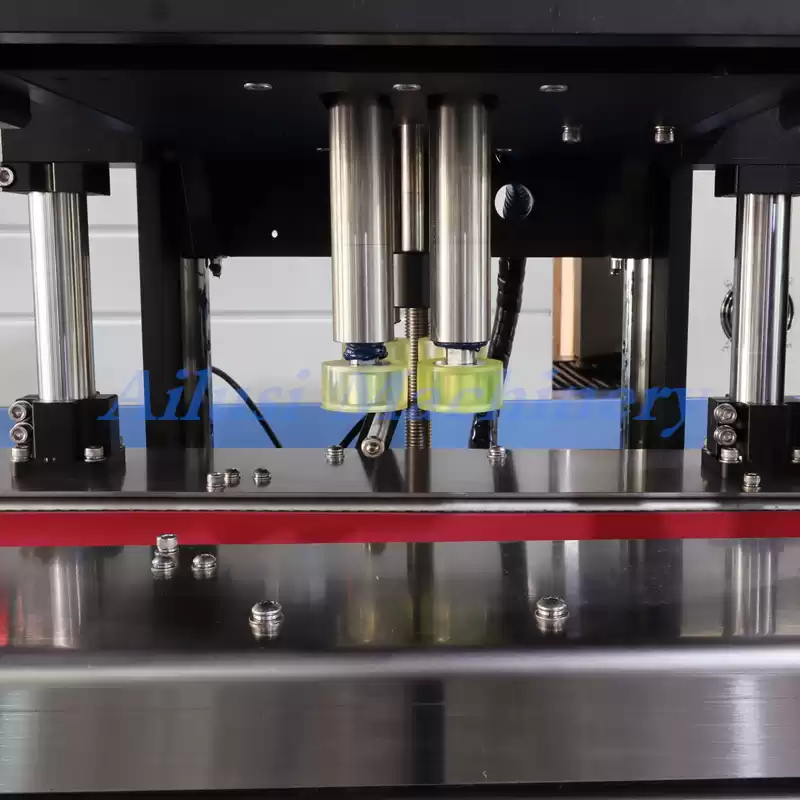

● Four sealing wheels
● Cap sorting part and cap loading part machine frame
● No need to change accessories, suitable for round caps of various sizes
● 2 meter straight conveyor line（can do customized）
● Can be used with filling machine and labeling machine
● Conveyor, capping speed and capping time can be easily debugged
● This machine is made of stainless steel and is GMP-compliant and durable
● Can be made into a single-head capping or double head capping according to user needs
Parameter:
|
No
|
Item
|
Description
|
|
1
|
Applicable
bottle specifications
|
Diameter
40 ~ 115 mm; Height 80-320mm(customized)
|
|
2
|
Bottle’s neck diameter
|
20
~ 55 mm(customized)
|
|
3
|
Production
capacity
|
2000
~ 3500 b/H(adjustable)
|
|
4
|
Power
supply
|
AC380V
50/60 hz
|
|
5
|
Power
|
1.2
KW
|
|
6
|
Air
pressure
|
0.4
Mpa
|
|
7
|
Single
machine noise
|
70
db
|
|
8
|
Material
|
304
SUS&316L SUS
|
|
9
|
Automatic Grade
|
Automatic
|
|
10
|
Driven Type
|
Electric
|
|
11
|
Speed
control
|
inverter
control
|
|
12
|
Bottle Application
|
Round
bottle, flat bottle, square bottle
|
|
13
|
Cap
application
|
Screw
cap, pump head etc
|
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Maintenance service.
