Automatic Cutting Machine for PVC And Nickel Strip Cutting Heat Shrink Tube and Alloy Material Cutter
INTRODUCTION
The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.
Tube: PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, Teflon tube, corrugated tube, etc.
Cable: Flat cable, copper wire, etc
Tape: nickel strip, hook and loop, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc
Sheet: battory separator, Nickel sheet, diffusersheet, plastic/rubber sheet, pvc sheet,etc
Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc
ADVANTAGE
1.High speed: It can cut 100~120 cut per minute. (50mm long)
2.Accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.
3.Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.
4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.

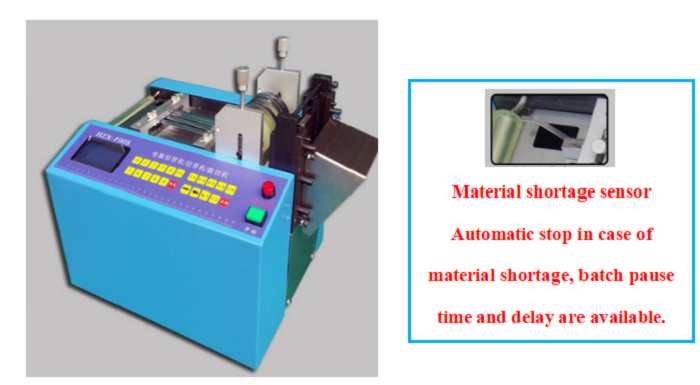

5.Automatic stopper: It stops automatically if materials run out during operation

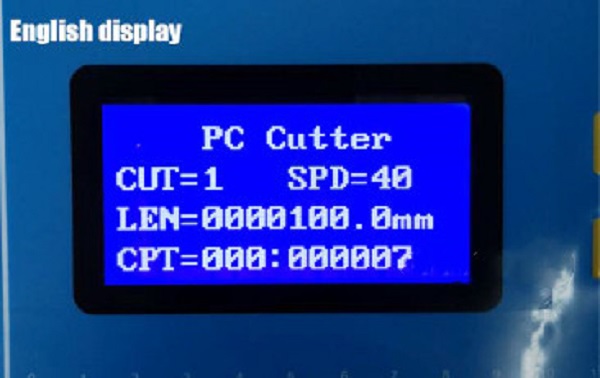

6.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on
7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.
8.High speed, high accuracy, designed for cutting non-adhesive materials.
SPECIFICATION
|
Model
|
Nickel Cutting Machine YS-100
|
|
Source voltage
|
AC 220V/110V, 50/60HZ, Customized
|
|
Power
|
200W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Advantages
|
1 In automatic stop without materials, unattended
2 With a knife or blade adjustment conveniently
3 Automatic grouping and total cumulative count
4 Suitable for all kinds of metal and no-metal strip materials, such as copper foil,
aluminum foil, copper foil tape, batteries nickel belt and so on
|
|
Cutting speed
|
0-130times/min
|
|
Cutting length
|
0.1mm-10m
|
|
Cutting width
|
0.1-100mm, according to model we choose
|
|
Dimension(L*W*H)
|
360*300*350mm
|
|
Weight
|
About 30kg
|
PRODUCT IMAGES
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
