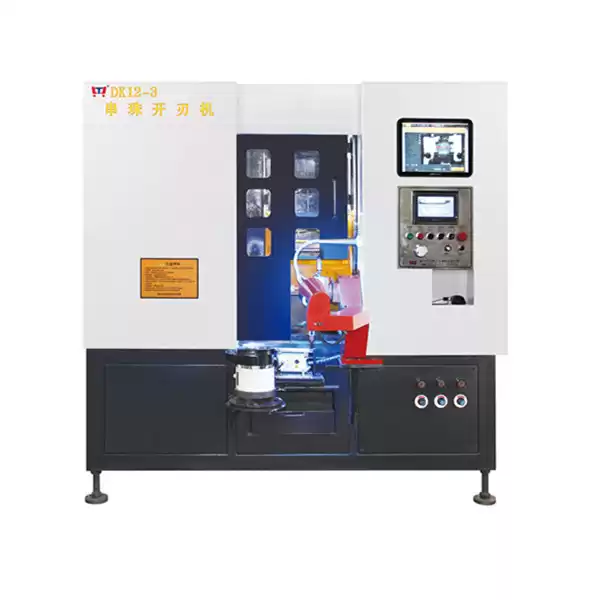

Automatic Diamond Beads Sharpening Machine

DK12-3 diamond beads sharpening machine is a new processing equipment applicable to single bead sharpening from diameter Φ6mm to Φ13mm.



DESCRIPTION:

DK12-3 diamond beads sharpening machine is a new processing equipment applicable to single bead sharpening. Touch screen HMI ensures easy and convenient operation. Advanced vision system and automatic screening technology ensure accurate feeding, keep the bead in the same direction, and avoid processing defects such as ellipse, conicity etc,  beads diameter from Φ6mm to Φ13mm are workable. To compare with traditional human works, this machine helps to increase efficiency improve quality and save more resources.


FEATURES:

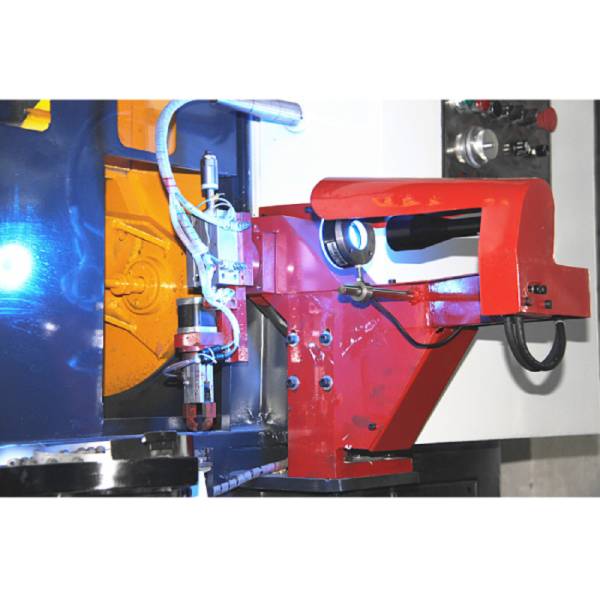

  • Advanced vision technology could auto-screen the bead’s head and tail, ensuring the accuracy of bead loading.

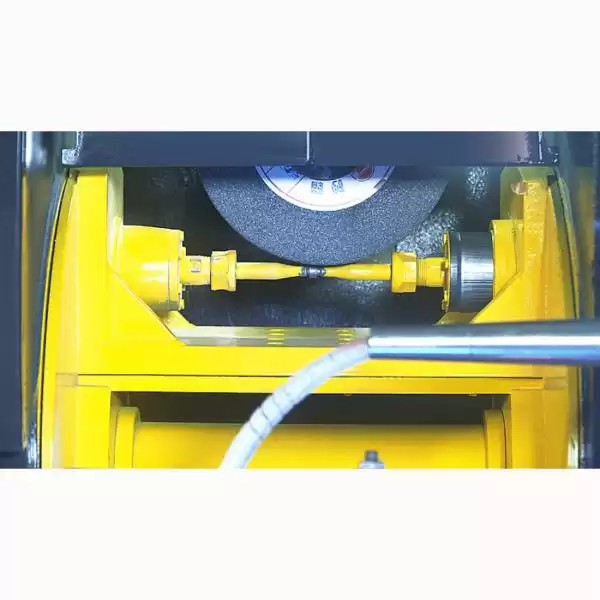

  • Auto complete grinding wheel’s feeding rate and tool setting, along with the wheel’s rotary movement, the machine will auto-control every sharpening parameter to achieve perfect flatness edge.
  • Micro-computer interface is easy operation and enables each index complete parameterization.
  • Automatic dust absorption system and collection device ensure clean environment and working condition.


TECHNICAL PARAMETERS:

  • Power Voltage: AC Three-Phase 380v, 50hz (other voltages and frequencies are upon demand)
  • Bead’s Outer Diameter: φ6-φ13cm
  • Spindle Motor Power: 0.55kw
  • Grinding Wheel Motor Power: 1.1kw
  • Left-right Swing Motor Power: 0.37kw
  • Back-forth Swing Motor Power: 0.37kw
  • Servo Motor Power: 0.75kw
  • First-position Motor Power: 0.12kw
  • Second-position Motor Power: 0.12kw
  • Third-position Motor Power: 0.12kw
  • Overall Dimension(mm): 1850*1800*1900
  • Net Weight:1800kg


GRINDING RESULT:
