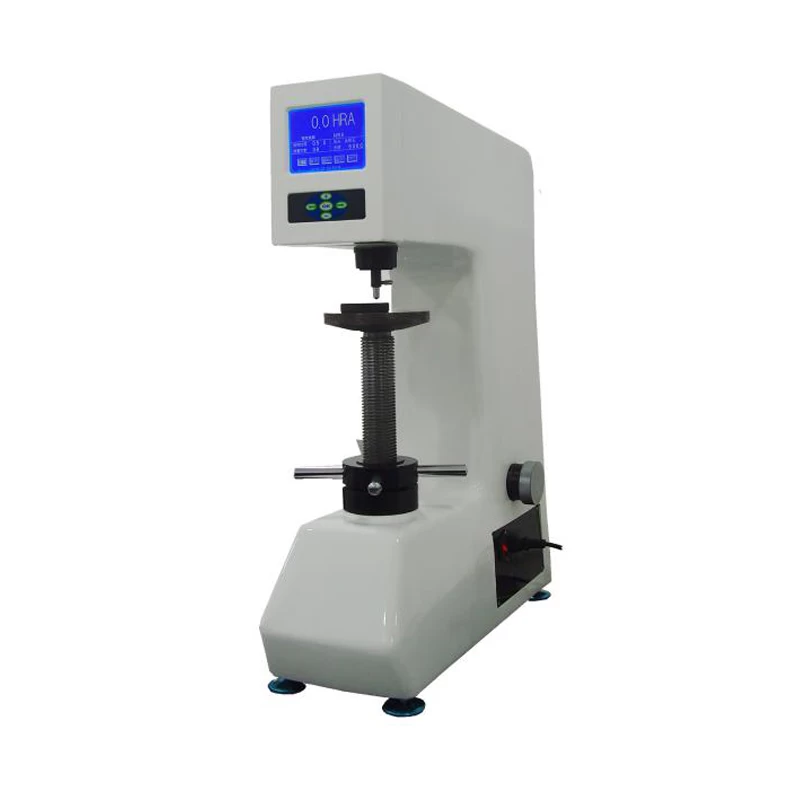

Automatic Digital Rockwell Hardness Tester GT-HRS-150
Product Introduction
|
Rockwell hardness Tester is suitable for the hardness test for ferrous metals, nonferrous metals and non-metallic materials .
Principle: Under certain conditions, the indenter (diamond cone, ball or carbide ball) is pressed into the surface of the sample, which takes two steps. After removing the main test force, measuring the residual indentation depth h at the initial test force. The residual indentation depth h represents the level of hardness.
|
Feature
|
1. Having a variety of Rockwell hardness scale, can be free to choose.
2. The hardness test hold time can be set freely.
3. Hardness test results can be printed
4. RS-232C serial communications, users can extend the functionality
|
Key Specifications
Model
|
GT-HRS-150
|
Initial test force
|
10kgf(98.07N)
|
Test Force
|
60kgf (588N) 100kgf (980N) 150kgf (1471N)
|
Indenter specification
|
Diamond conical Rockwell indenter, φ1.5875mm steel ball indenter, or other diameters (optional)
|
Rockwell scale
|
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK
|
Test Range
|
HRA: 20-88 HRB: 20-100 HRC: 20-70 HRD: 40-77
HRE: 70-100 HRF: 60-100 HRG: 30-94 HRH: 80-100
HRK: 40-100 HRL: 50-115 HRM: 50-115 HRR: 50-115
|
Hardness read
|
LCD digital display screen
|
Data output
|
Built-in printer RS-232 interface
|
Maximum specimen height
|
170mm
|
Head - Ectotheca distance
|
165mm
|
Power
|
AC220V + 5%, 50 ~ 60Hz
|
Dimensions (mm)
|
510X212X730mm
|
Weight
|
About 85Kg
|
Standards
|
GB/T230.1, GB/T230.2, JJG112, ASTM E18, ISO 2039-2
|
