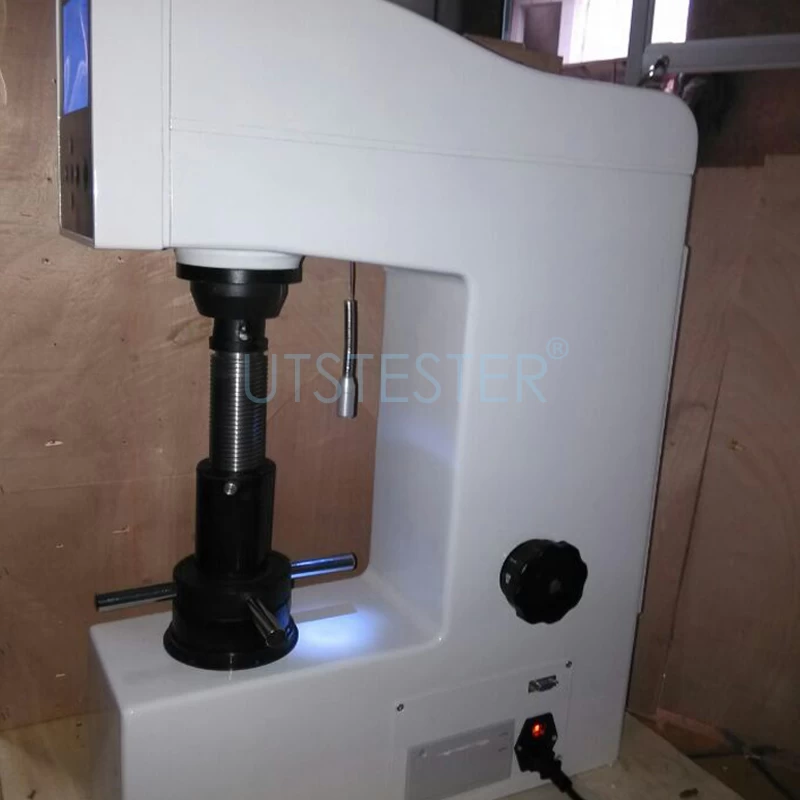

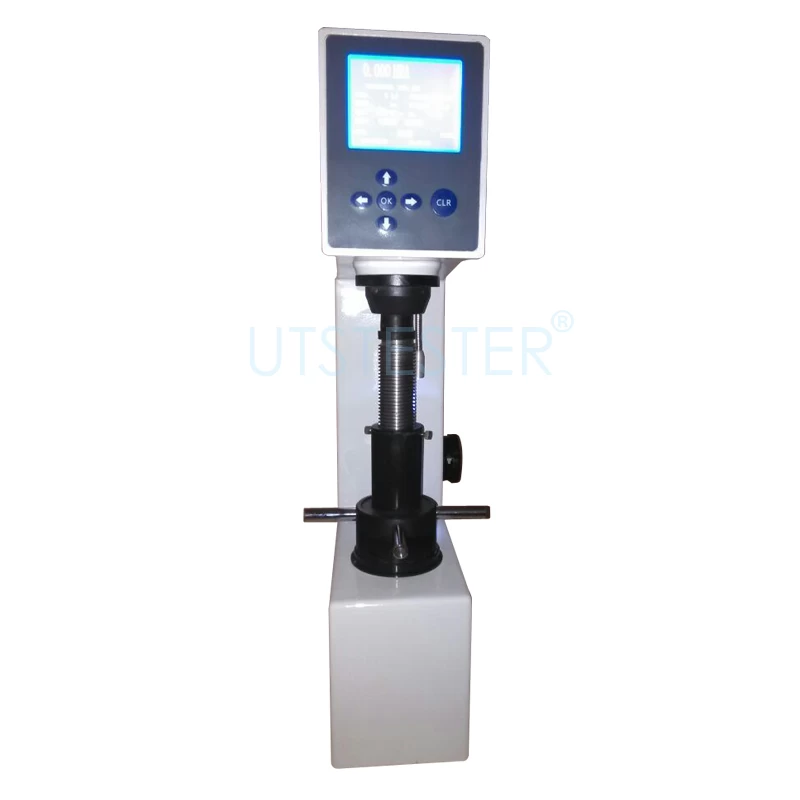

Model HRS-150 Rockwell hardness tester is a high-tech product with
novel appearance and stable performance. The industry-leading
superficial Rockwell hardness tester has real-time display function of

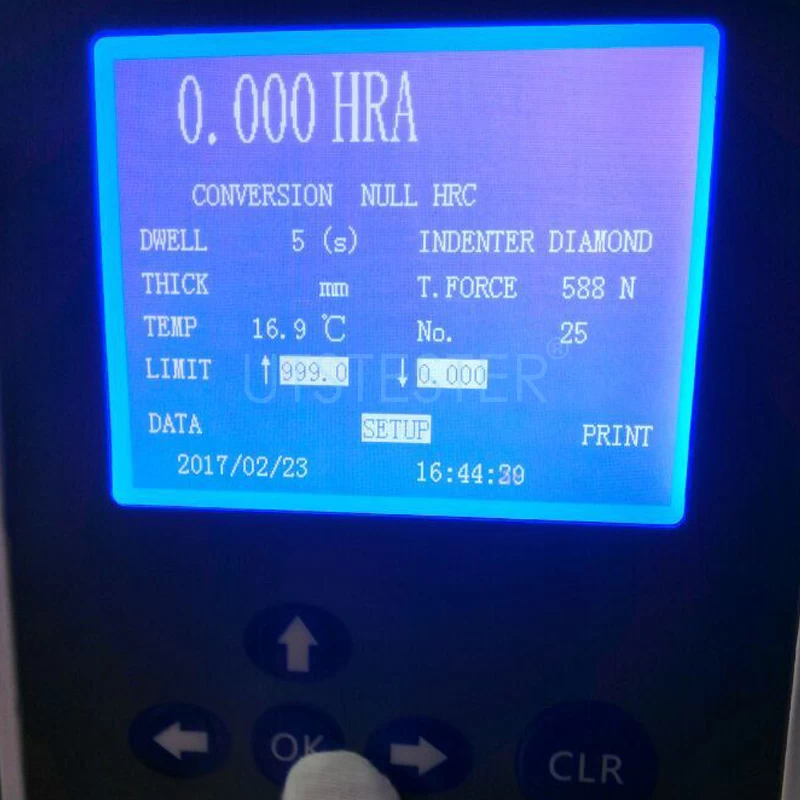

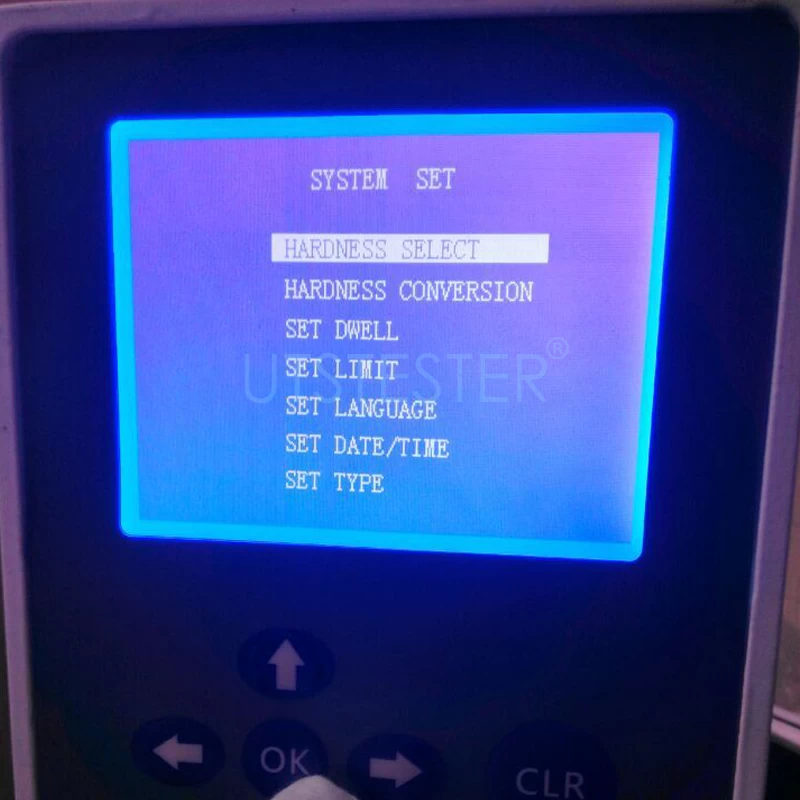

test environment temperature; its touch-screen operation is simple,
intuitive and can take a test on superficial Rockwell hardness scale.
The product is controlled by the MCU equipped with LED cold light
illumination and high-speed thermal printer by which you can rapidly
print out test data. Such product meets requirement of Rockwell GB /
T 230 and International standard ISO 6508 and can be widely applied
to business workshops and laboratories. It is an ideal choice of Rockwell
hardness test.
Initial Test Force: 98.07N, allowable error: ±2.0%.
Total Test Force: 588.4N, 980.7N, 1471N, allowable error: ±1.0%.
Indenter Specifications:
Rockwell diamond cone indenter.
Φ 1.5875mm ball indenter.
Maximum height of the test specimen: 170mm.
Indenter head center to the fuselage: 165mm.
Hardness Dimensions (L × W × H): 550× 220× 730mm.
Instrument Weight Approx: 85kg.
|

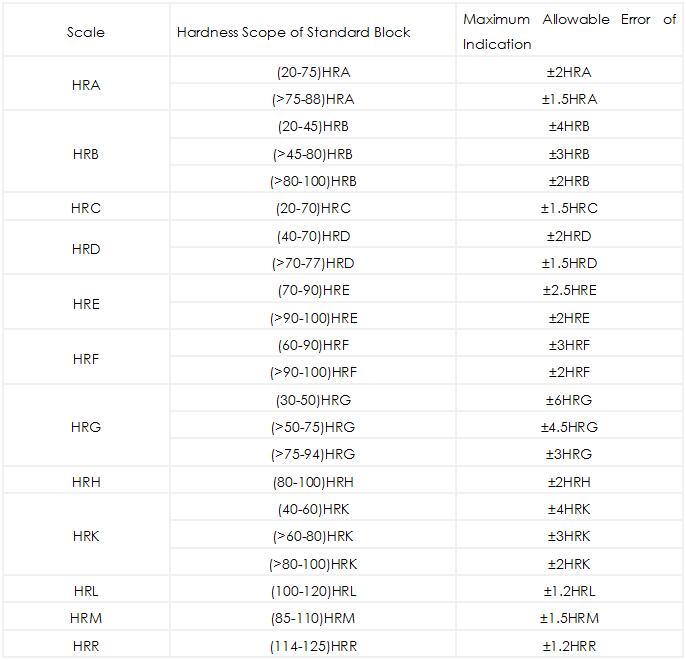

Allowable error of indication
|
|

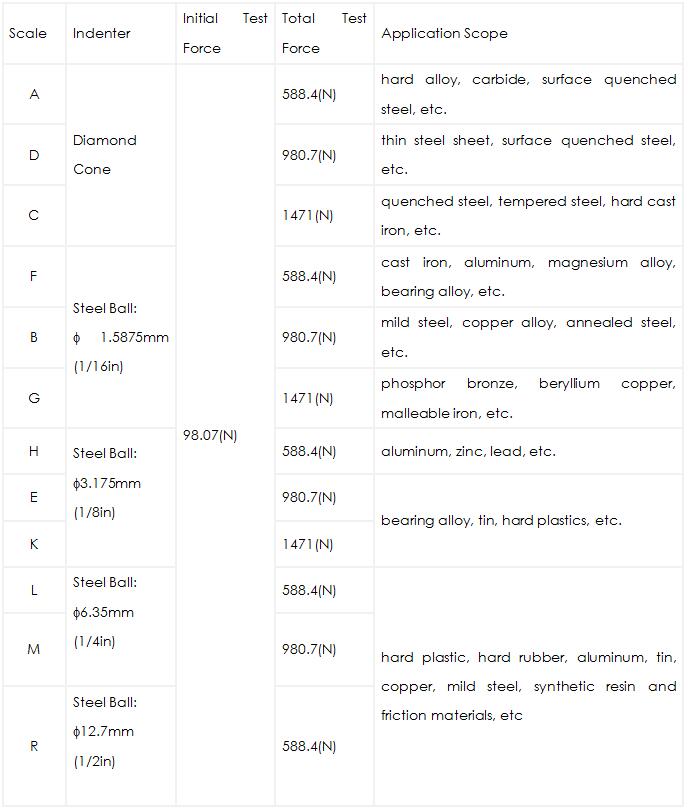

Scale, Indenter, Test Force and Application Scope Hardness
|
