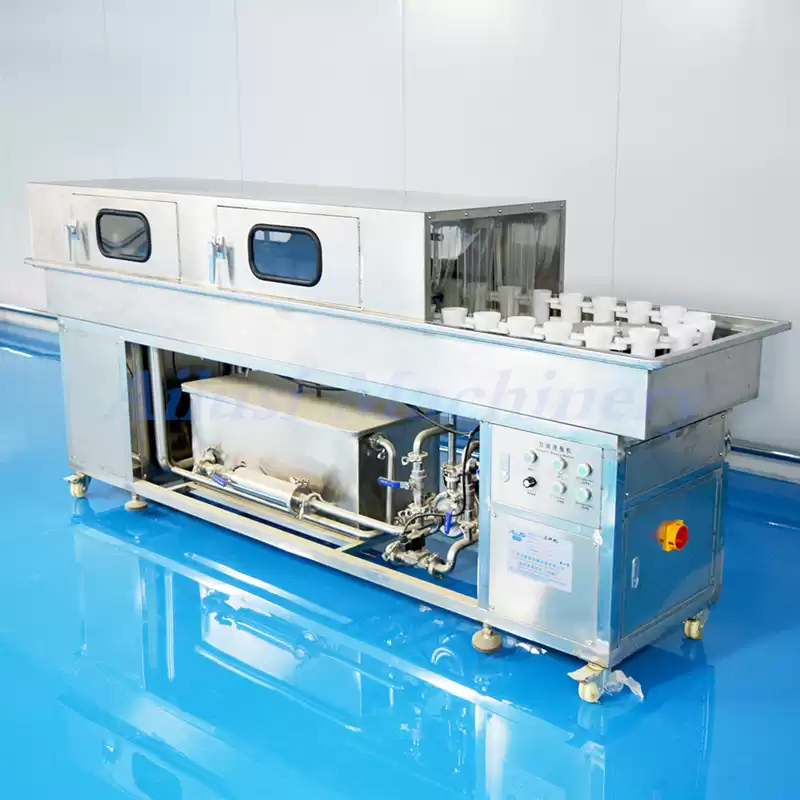

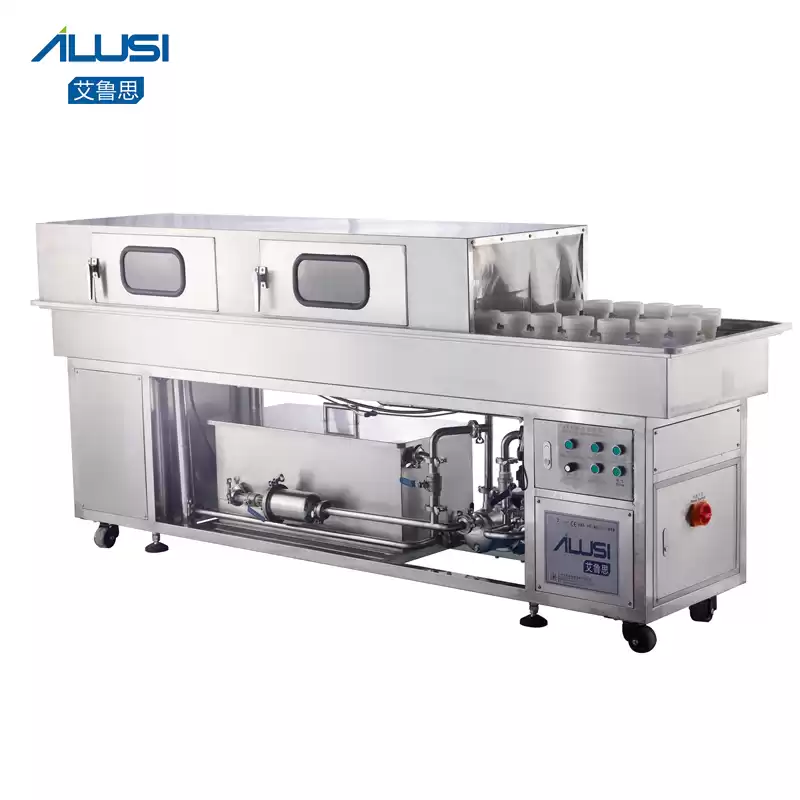

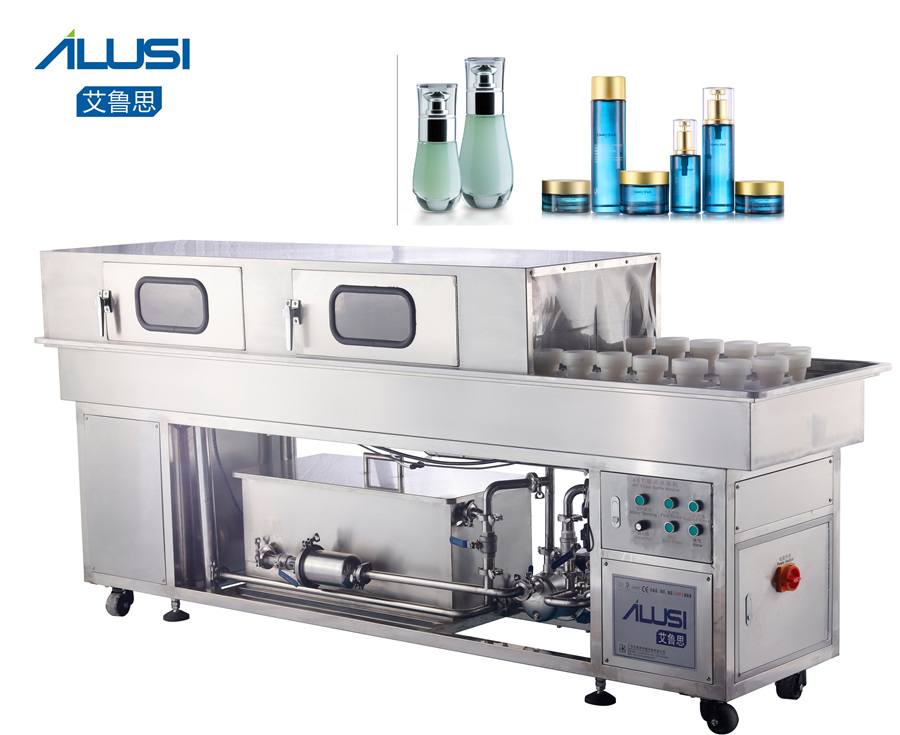

Double Line Bottle Washer mainly used for washing Plastic Bottle, Glass Jar, Metal bottles, Sipper water bottles, Sigg bottles, can
Main Features:
1). This machine is a caterpillar type artificial bottle washing water, tracking rushed and positioning type shower, washing time is about 8 seconds, bottle control time of about 26 seconds.

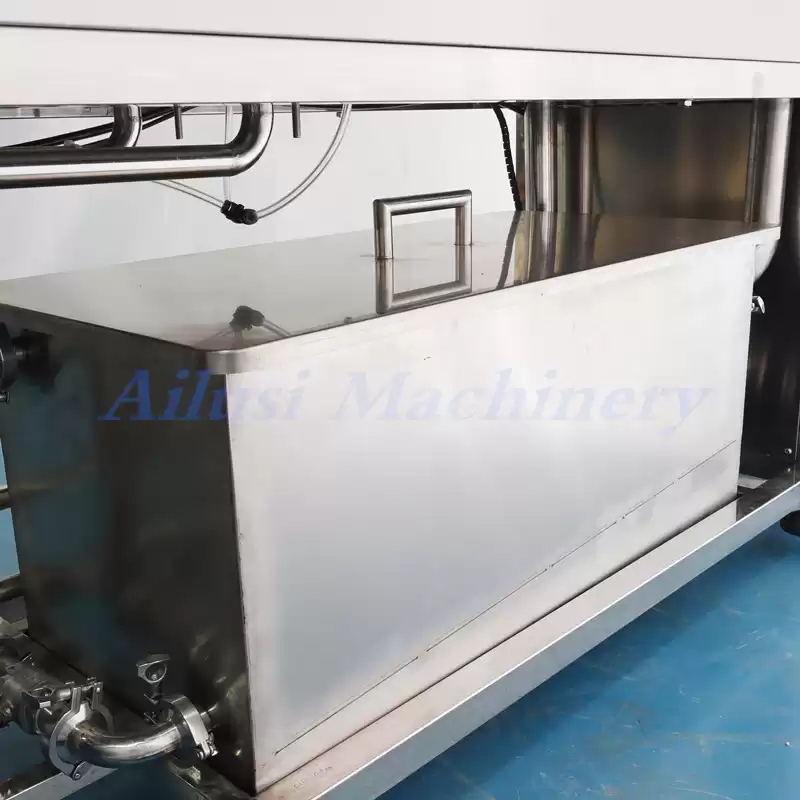

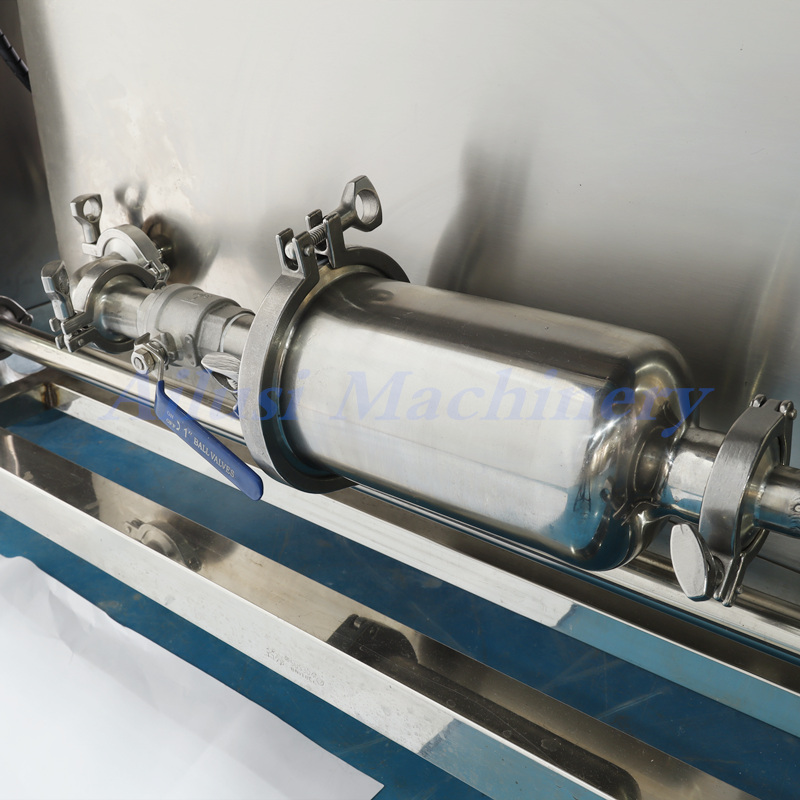

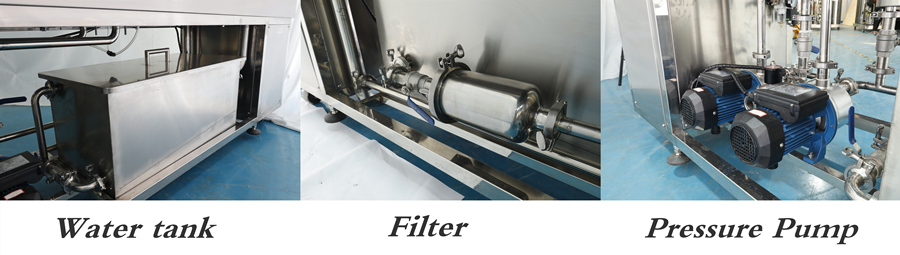

2). With water filtration facilities, can filter water impurities can be recycled.
3). The exposed parts of the part in contact with the liquid, are made of stainless steel, brass and nylon, meet the food sanitation standards.
4). The water diversion valve body is made of reinforced nylon and has low water absorption. The body tray is made of stainless steel, supported by spring and polished on the upper surface, so the friction coefficient is small and long service life.
5). The machine has the advantages of novel design, simple operation, reliable operation and strong adaptability
6). Recommended match to Automatic Filling Line:
Automatic Filling Machine,
Automatic Capping Machine,
Automatic Labeling Machine
*Every machine we build is rigorously tested for optimal performance and incorporates changeable baskets, when you inquiry us, please kiindly let us the bottle's size, when you purchase this machine, please kindly send us the bottles for customized mold size ;)
|
1
|
Washing heads
|
48 heads
one bottle one mold
|
|
2
|
Dimension
|
2700*670*1180mm
|
|
3
|
Production capacity
|
2000~3000 bottles/hour
|
|
4
|
Water consumption
|
1.5m³/h
|
|
5
|
Power
|
1.25KW,220V,frequency control
|
|
6
|
Working pressure
|
0.2~0.4Mpa
|
|
7
|
Applicative bottle height
|
50-150mm
|
|
8
|
Applicative bottle diameter
|
25-80mm
|
|
9
|
Weight
|
330Kg
|
Details:

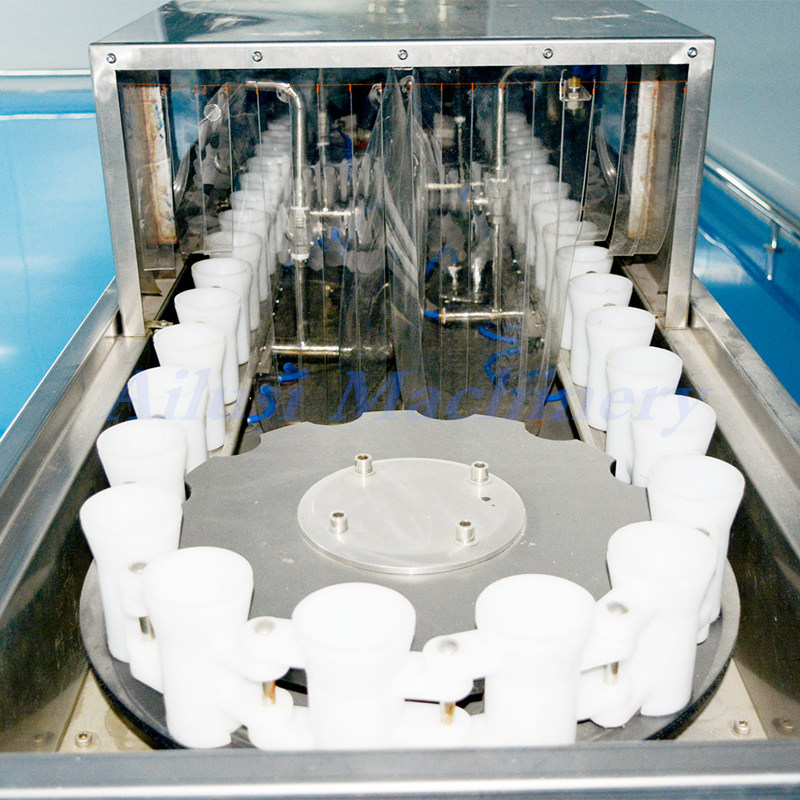

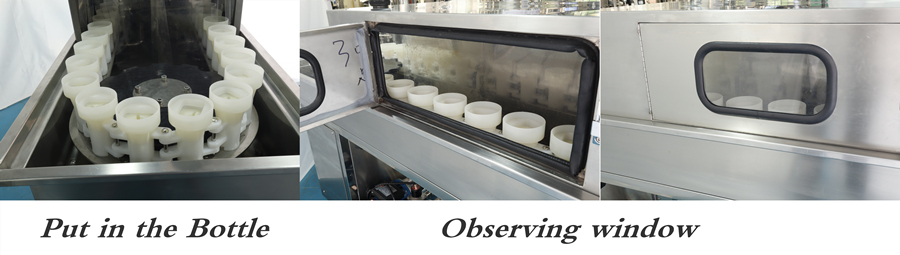

The bottles are manual loaded and unload on rotating platform and are cleaned in series of operations. The bottles are hold in bottle holders that are specially designed to accommodate bottles with varying neck diameter and bottle diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings and sequence of various washing media to suit specific requirement.
Package & Delivery:
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Maintenance service.
