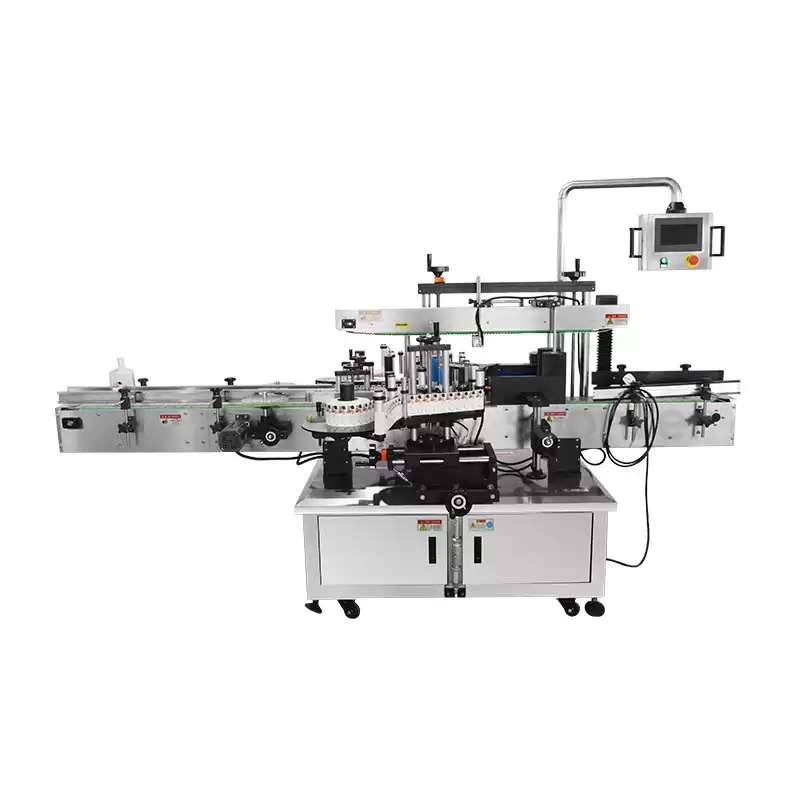

Automatic double side sticker labeling machine
Application of automatic double side labeling machine
Labeling speed
|
10-40meters/min
|
Labeling accuracy
|
±1mm
|
Max label width
|
200mm(can be customized)
|
Applicable product size
|
Height≤400
|

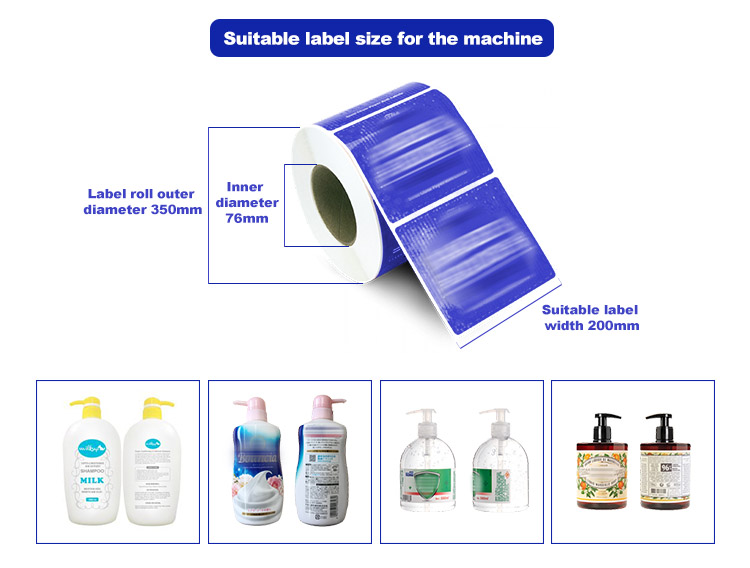

Applicable inner diameter of paper
|
Φ76mm
|
Applicable outer diameter of paper
|
MaxΦ350mm
|
Dimension
|
3050L*1450H*1800Wmm
|
Weight
|
500kg
|
Application of automatic double side labeling machine
1. Multi-dimensional adjustment: Label head can achieve 8-D spatial accurate positioning adjustment.
2. Labeling head lateral translation:Micro-adjustment of labeling position can be realized by lateral translation of the label head.
3. All the regulating mechanisms can realize fast regulation.
4. The design of pressure roller is used to improve the tension of the label, especially for ultra thin label.
5.All structural parts are machined by numerical control, High precision matching of components to ensure accuracy grade of equipment.
6、 Label clutch makes machine running more smoothly.Three-point label head up and down adjustment device make the adjustment more easily.
7、 The special scraper support is easy to adjust.
