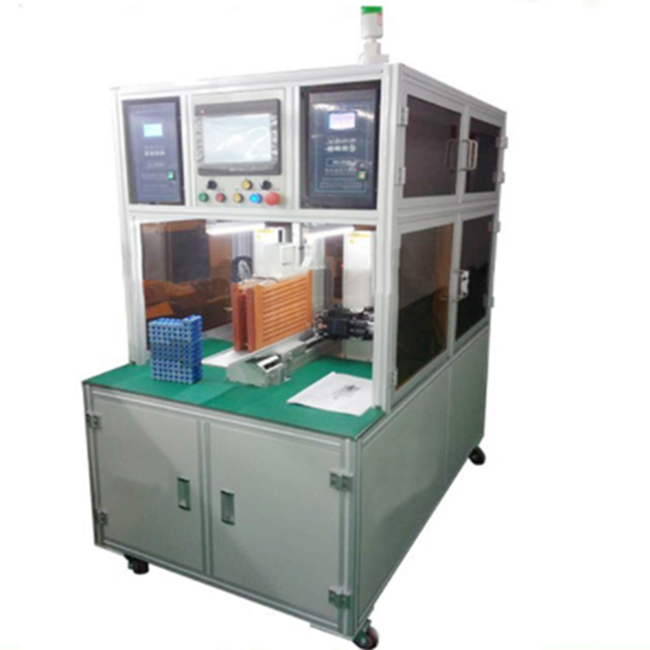

Automatic Double Sides CNC Spot Welding Machine for Cylindrical Battery Pack Assembly
This machine is used for 18650 battery pack automatic spot welding, it can weld both side together with high speed and good effect.
Features :
1. Support breakpoint start, support automatic start and manual start mode conversion.
2. It has a false spot welding and out of spot welding alarm function.
3. Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4. Welding needle replacement forecast reminder.
5. Own welding current monitoring system, real-time monitoring of welding current.
|
Model
|
TMAX-DH-20000
|
|
Y-axis travel
|
500mm
|
|
Z-axis travel
|
350mm
|
|
Spot welding speed
|
0.3s / point; 5000pcs / h
|
|
Maximum speed of motor drive
|
1000mm/s
|
|
The maximum number of batteries loaded
|
300pcs (standard 18650 lithium battery)
|
|
Number of groups for storing files
|
999 groups
|
|
Operating system
|
Embedded system + man-machine screen
|
|
Transmission
|
Stepper + imported precision linear guide (optional servo + screw)
|
|
Power supply
|
Single-phase 220V ± 10% / 50Hz ± 10%
|
|
Air supply
|
0.3 ~ 0.4Mpa
|
|
Weight
|
400KG
|
|
Dimensions
|
900mm*1100mm*1800mm
|
