Product Introduction

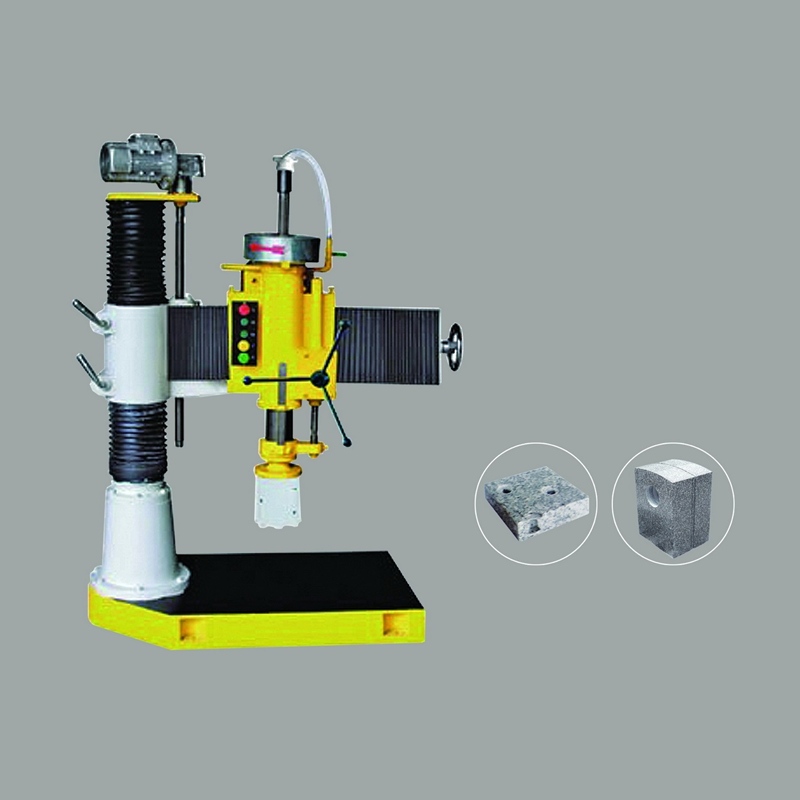

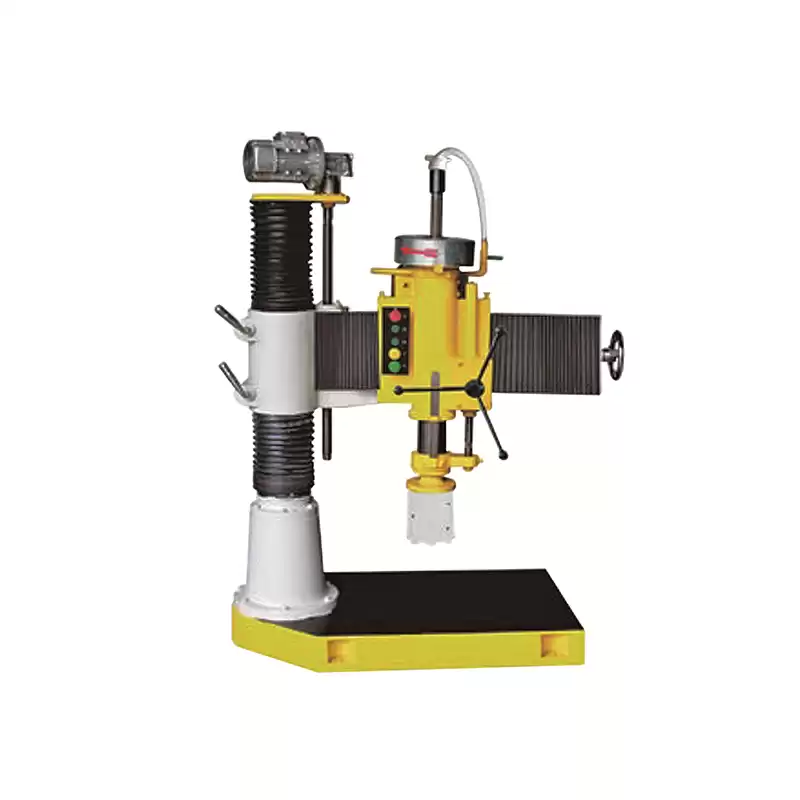

Automatic Drilling Machine has reasonable structure, good rigidity, flexible operation, double speed running of main motor, high production efficiency, and it is mainly used for deep hole processing of stone tablet, stone strip, lantern, handicraft, etc. There are two kinds of large and medium size for users to choose.
Technical Parameters
|
Automatic Drilling Machine
|
|
Type
|
unit
|
ZK-300A
|
ZK-300B
|
|
Main motor power
|
mm
|
200
|
400
|
|
Gyro radius
|
kw
|
7.5
|
15
|
|
Total power
|
kw
|
9
|
17.25
|
|
Lifting stroke of column
|
mm
|
1100
|
1000
|
|
Spindle lift stroke
|
mm
|
400
|
600
|
|
Water consumption
|
m³/h
|
4
|
4
|
|
Dimension(L×W×H)
|
mm
|
1600×1200×2700
|
1950×1500×2700
|
|
Total weight
|
kg
|
1000
|
1500
|

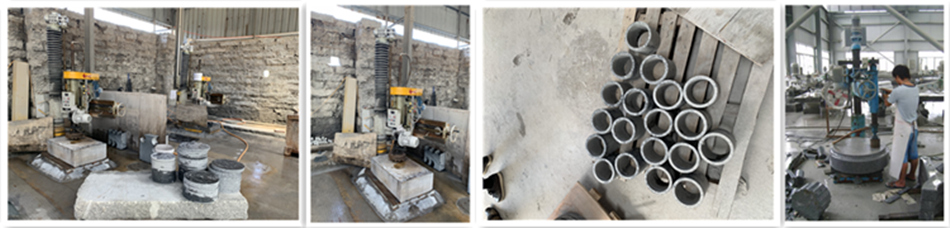

Processing
