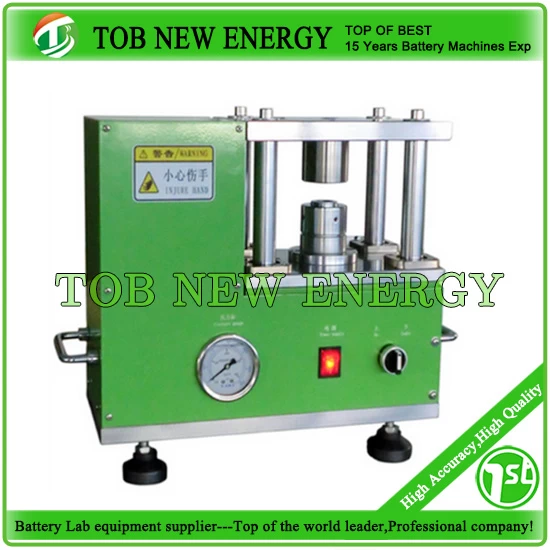

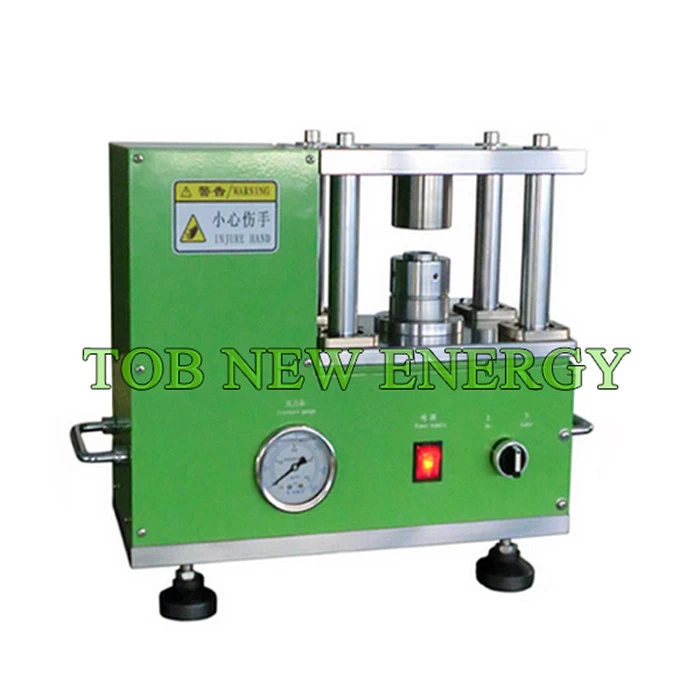

Automatic Electric Crimping Machine for CR20XX Button Cells
SPECIFICATIONS
1 The auto button battery crimper for various types of coin cells, such as CR2016, CR2025 and CR2032. It is an ideal tool to be operated both inside and outside of a glove box.
2 This electric crimping machine pressure applied on coin cells is adjustable in order to meet various sealing requirements.
3 With different die, can also finish work with dry powder/wet powder press sheet for electrode forming.
|
Model
|
Electric crimping machine TOB-DF-150
|
|
Source voltage
|
AC220V-110V, 50HZ
|
|
Power
|
120W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Die Set & Compatibility
|
Assembling dies for CR2016, CR2025 & CR2032 coin cells
Optional: Crimping die for CR2450 coin cell is available upon request
|
|
Assembling Pressure
|
Recommended assembling pressure for CR20XX coin cells is about 100kg/cm2,
Max. pressure can be applied to 200kg/cm2, up to 8T
|
|
Measurement Accuracy
|
±0.5%FS
|
|
Product Dimensions
|
385*160*325mm
|
|
Weight
|
About 40kg
|
|
Application Notes
|
Electrolytes are highly corrosive materials, and therefore
the dies must be cleaned with alcohol after each use to avoid corrosion
and deformation.
|

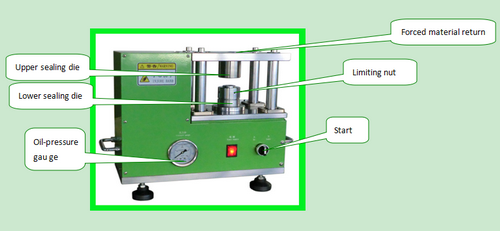

Reference Pictures
