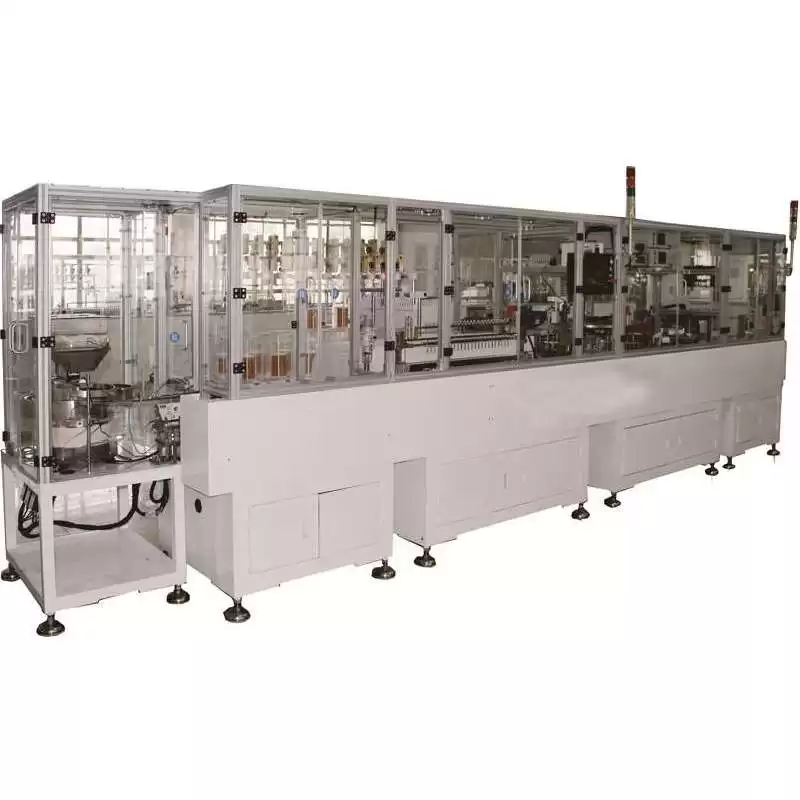

Low Voltage Electrical Apparatus Automatic Winding Machine
Machine Features：
1. Low Voltage Electrical Apparatus Automatic Winding Machine is applicable for small size bobbins such as relay coil, transformer coil ,stepping motor coil, ignition coil, etc. .
2. Multiple processes can be completed on the line including Automatic vibration feeding, winding, Dip soldering, testing, terminal reforming， palletizing and so on.
3. The spindles are synchronously controlled by YASKAWA FCS (Fieldbus Control System) and kinematics accuracy can be controlled within 0.01mm. The state-of –the-art controller of MECHATROLINK-II is employed to equip the winding machine.
4. Liquid level in the solder bath can be tested by the sensor in real time. If the solder surface is lower than the set height, tin will be automatically added.
5. Soldering time can be adjusted between 0 and 5 second and the precision is 0.1 second.
6. A small solder bath which can more upwards and downwards may be added in the large solder batch.
Technical Parameters:
|
Model #
|
STC-1908
|
|
Control System
|
YASKAWA MECHATROLINK-II FCS (Fieldbus Control System)
|
|
Spindle Number
|
6,8,12,16
|
|
Spindle interval
|
30,40,50,60,70,80,100mm
|
|
Spindle speed
|
Standard: 6000RPM, MAX:10,000RPM
|
|
Moving precision
|
±0.01mm
|
|
Wire diameter
|
Ф0.02-Ф0.25mm
|
|
Number of control spindle
|
4 spindles
|
|
Spindle motor power
|
11.8KW/2.9KW
|
|
Total motor power
|
3.0KW/4.5KW
|
|
Revolution angle
|
± 1°
|
|
End processing number
|
Not limited
|
|
Max swing diameter
|
Ф25mm,Ф35mm,Ф45mm,Ф55mm,Ф65mm,Ф75mm,Ф95mm
|
|
Power supply
|
AC 380V 50HZ
|
|
Power consumption
|
7KVA
|
|
Air pressure
|
0.4-0.6Mpa
|
