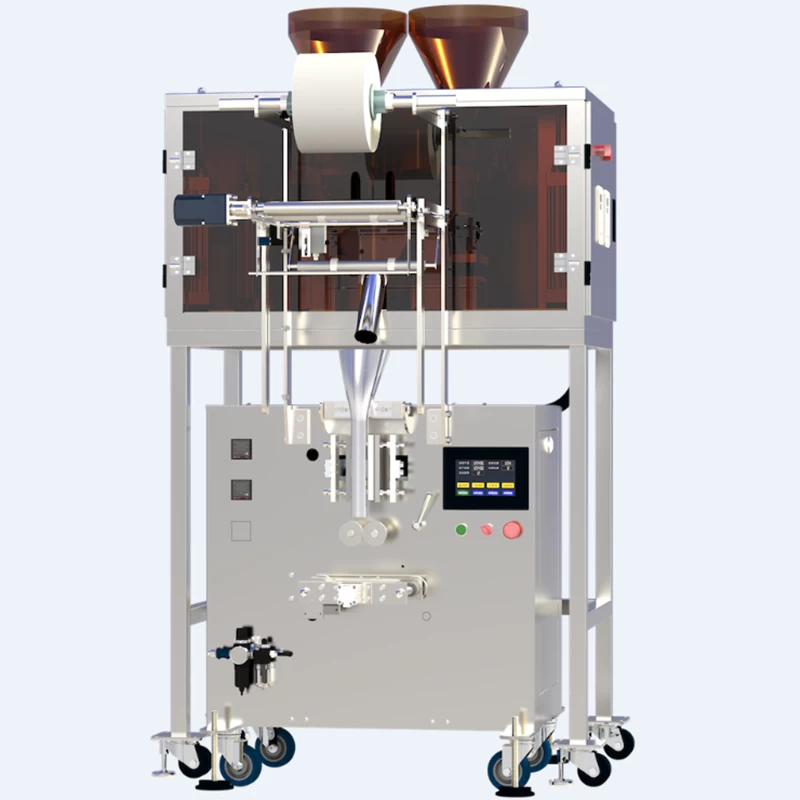

Automatic electronic scale tea packing machine
Customized And OEM Service Available
Detailed introduction
1.This Automatic electronic scale tea packing machine can automatically complete the blanking * bag-making * metering * filling * sealing * cutting * counting, can be configured according to the requirements of the code function
2.Touch screen operation PLC controller, driving stepping motor control bag length, stable performance x detection accurate x adjustment convenient
3.Selects intelligent temperature controller, PID control, can reduce the error range of temperature control within 1 Š
4.Packaging capacity: 1-30 g
5.Packaging speed: 20-35 packages per minute (depending on the characteristics of materials)
6.Sealing method: three-side sealing * back sealing
7.Bag-making size: length :30-170(mm) width :30-130(mm)
8.Power source :220V/ 50z / 1.5kwo gas source: "0.6m3/min
9.Weight: about 250 Kg
10.Dimensions: 1080*1255*1880(mm) (l*w*h)
Electrical configuration
|
NO |
Name of electrical accessories |
Brand |
|
1 |
display |
Yonghong |
|
2 |
PLC |
Yu sheng |
|
3 |
Temperature control table |
Hui bang |
|
4 |
Stepper motor |
Lei sai |
|
5 |
switch |
Chint |
|
6 |
Proximity switch |
Kori |
|
7 |
Solid state relay |
Meigeer |
|
8 |
Main motor |
Zhaoqin |
|
9 |
Power filter |
Anzhou |
|
10 |
Color scale sensor |
Julong |
