Automatic extracter pick-up machine (for die casting machine equipment)

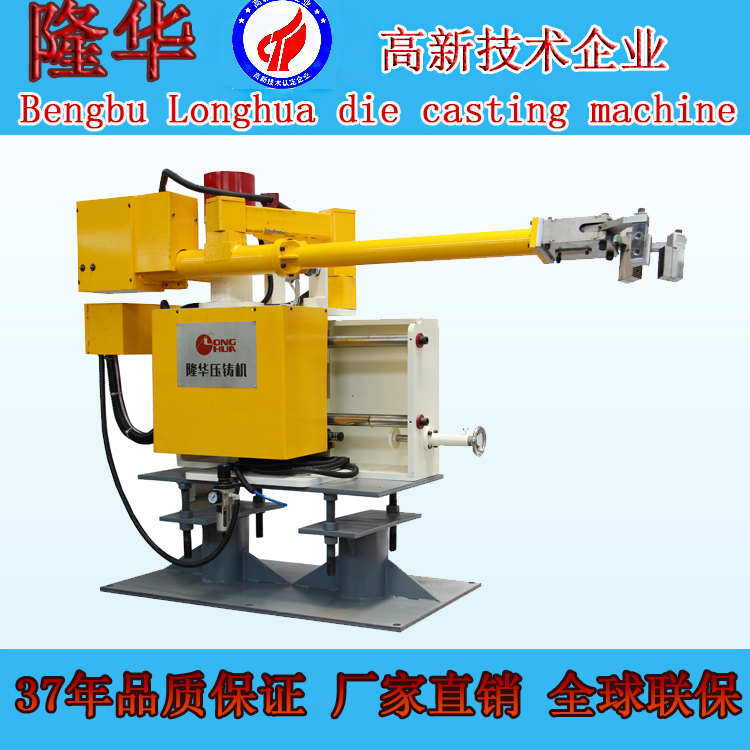

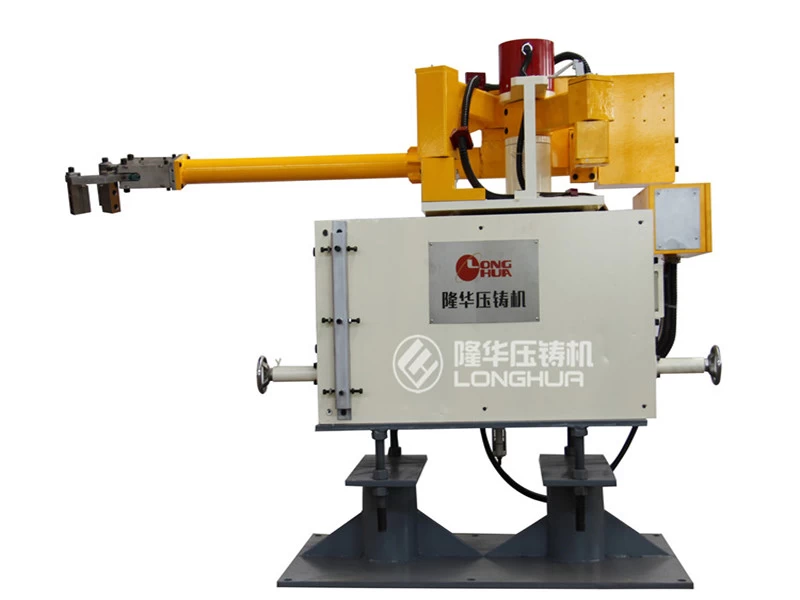

Automatic extracter pick-up machine

Product introduction:

The pick-up machine is a mechanical device that realizes the safe area of the product to be delivered to the product according to the ideal trajectory after the product is taken from the mold by the principle of the mechanical connecting rod.

Technical characteristics:

1. Horizontal multi-link arm is adopted, and the floor-standing installation design is compact and occupying a small area.

2. It adopts Taiwanese Cycloidal Pin Motor and Reducer. The arm is multi-speed control with higher aerodynamic stability, high speed movement and no impact.

3. The time parameter and position setting can be set through the touch screen. It has operation and fault self-diagnosis function, which can monitor the movement position of the pick-up machine.

4. Use Japanese TOYO absolute encoder to digitize the arm position.

5. The horizontal direction is driven by a motor.

6. It can be single-action, or it can be connected with die-casting machine, soup machine and sprayer to become fully automated equipment.

Role of the pick-up machine:

1. It is to reduce manpower and program production.

2. Safe, stable and efficient.

3. The parts are taken gently to prevent collision, which is conducive to maintaining the appearance

of the workpiece and improving the quality.

4. More suitable for long-term, stable work.
