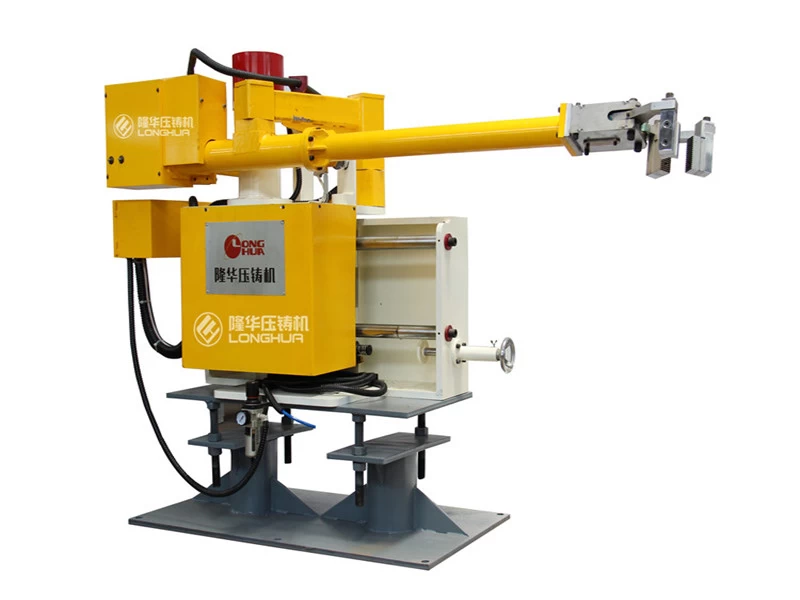

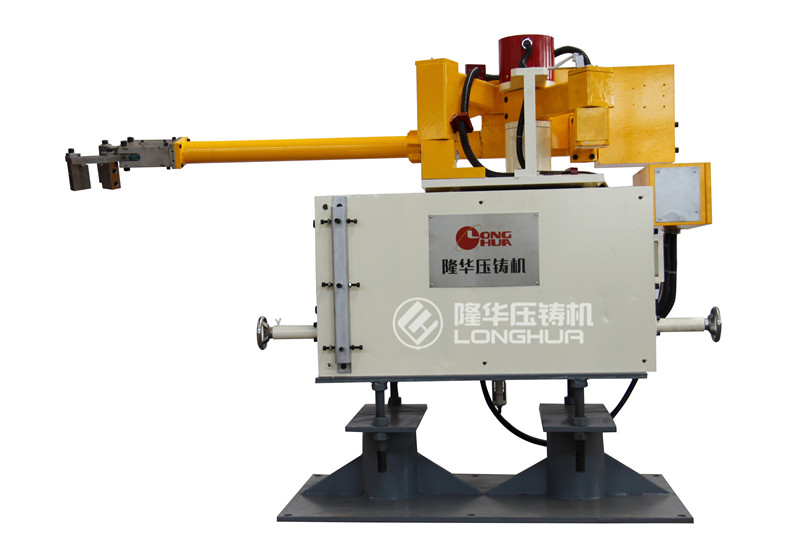

Automatic extractor for die casting machine
Product Description
Product Features
1.Horizontal multi - link arms, floor mounted compact design small footprint
2.Using Taiwan chuanshih cycloidal needle motor and reducer, the arm multi-stage speed control is more stable than pneumatic control, which can move at high speed without impact
3.Time parameters and position setting can be set through the touch screen, with the function of operation and fault self-diagnosis, which can monitor each action position of the device
4.Japanese TOYO absolute value encoder is used to digitize the arm position adjustment
5.Lateral drawing is driven by motor
6.It can be operated alone or connected with die-casting machine, soup feeder and sprayer to become fully automatic equipment.
Product parameters
|
MODEL
|
LH-1
|
LH-2
|
LH-3
|
LH-4
|
|
FOR DIE CASTING MACHINE
|
125T-500T
|
630T-1300T
|
1300-1600T
|
2000-3500T
|
|
REMOVE WEIGHT
|
8KG
|
18KG
|
30KG
|
80KG
|
|
ARM STROKE
|
1900MM
|
2300MM
|
2600MM
|
2600MM
|
|
ARM MOTOR
|
0.75KW
|
1.5KW
|
1.5KW
|
2.2KW
|
|
LEAD TO PULL WAY
|
气动
|
气动
|
气动
|
气动
|
|
POWER SUPPLY CAPACITY
|
380V/1KVA
|
380V/1.2KVA
|
380V/2.5KVA
|
380V/4KVA
|
|
CYCLE TIME
|
10SEC
|
15SEC
|
18SEC
|
22SEC
|
