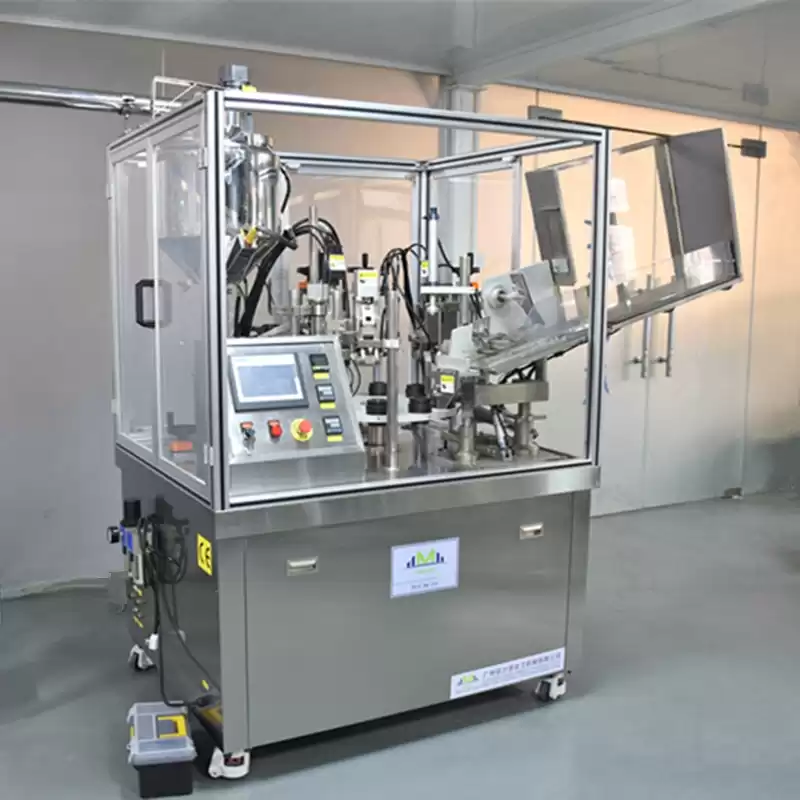

Automatic face cream plastic tube filling and sealing machine
Customized And OEM Service Available
Details introduced
This Filling And Sealing Machine is made of high quality stainless steel and can touch materials and related parts.Adopt quick change device to clean parts, disassemble and clean easily.

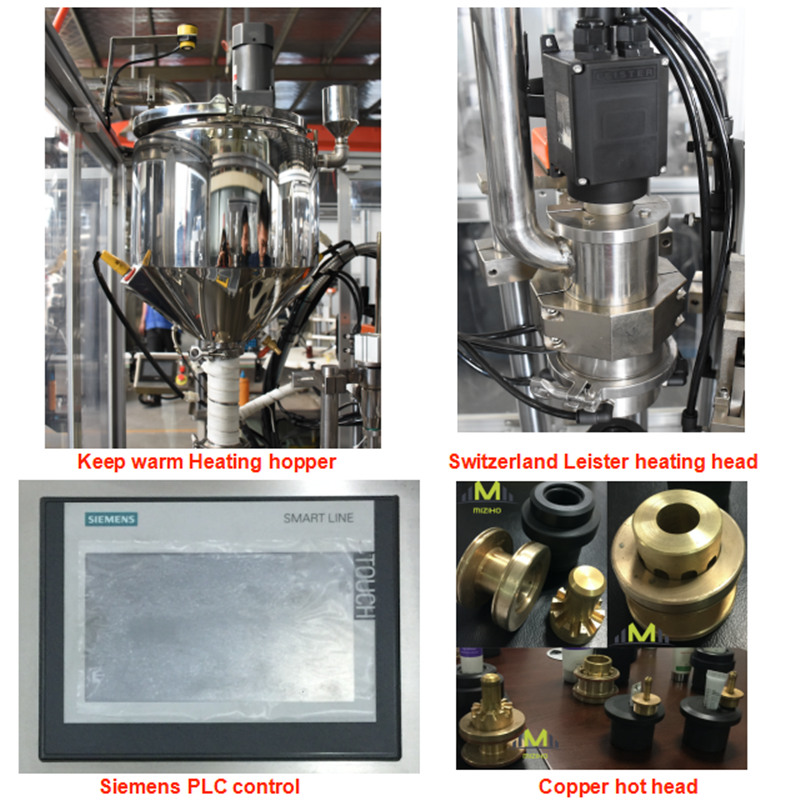

When some materials need to be heated and kept warm, a heating and constant temperature device can be installed outside the tube.
The Tube Sealing Machine Use plastic pipe and composite pipe as the packaging material of any material, you can rest assured to choose.
Tube Filling Machine Applicable to cosmetics industry, pharmaceutical industry, adhesive industry, shoe polish industry and other related industries.
This Filling Sealing Machine is mainly used for primary transmission principle.
The indexing mechanism drives the turntable equipped with fixtures for intermittent movement, and performs a series of functions such as automatic piping, automatic marking, automatic filling, Swiss sealing machine heating, cold water machine cooling, sealing, code pressing, dressing, product taking out and so on.
Filling measurement is accurate, heating time is stable, adjustable, sealing tail appearance is beautiful, neat, firm, sanitary.Cut the edges flat.
The Tube Filling And Sealing Machine has 10 stations, the machine can complete the operation automatically.The machine runs smoothly and reliably.
Technical parameters
|
Filling volume
|
10 - 120ml
|
|
Filling accuracy
|
1%
|
|
Production capacity
|
35 / per minute
(according to the material different)
|
|
Air Pressure
|
>0.8Mpa >0.14M³/MIN
|
|
Voltage
|
50HZ 220V
|
|
Heating power
|
3KW
|
|
Counter numbers
|
0 - 999999PCS
|
|
Over diameters
|
1250 x 1000 x 1800MM
|
|
Gross weight
|
450KG
|
