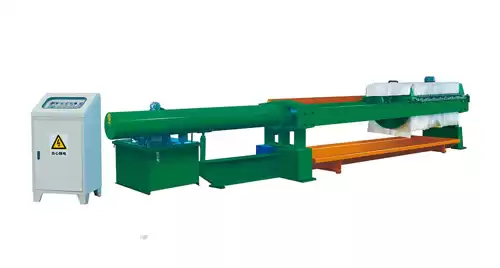

Automatic Fast Open Plate Shifter Hydraulic Chamber Circular Plate Filter Press
Filter Press Characteristic：
1. The main parts of filter press is made of cast steel, High strength, Stable Structure and long usage life.

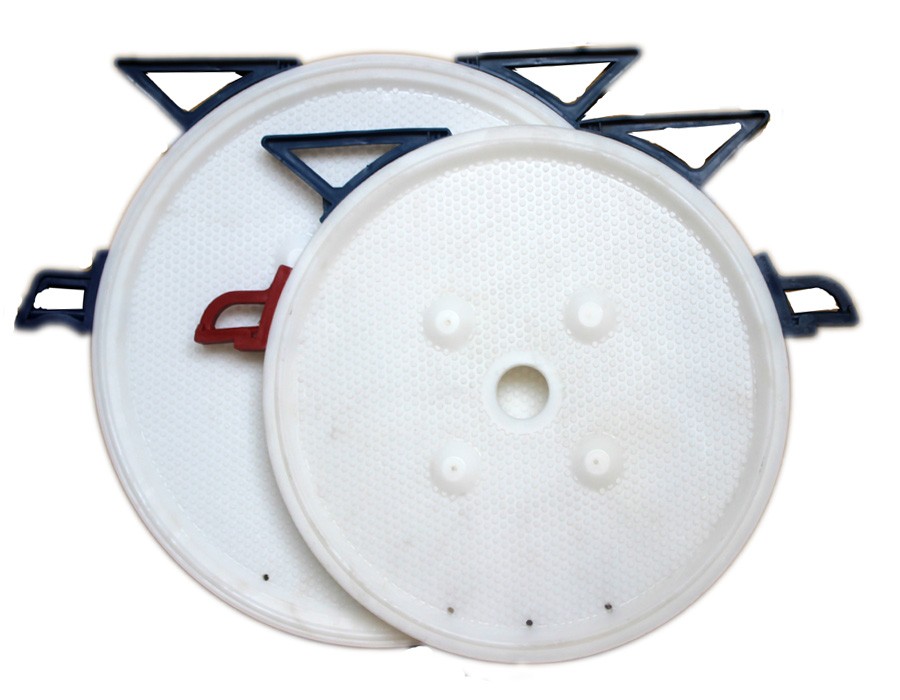

2. The filter plates are made of high intensity HDPE, the highest working pressure could be 2.5Mpa, long life span and acid and alkali resistance.
3. Adopting the contact meter to maintain the pressure automatically, saving the labor cost and improve the working efficiency.

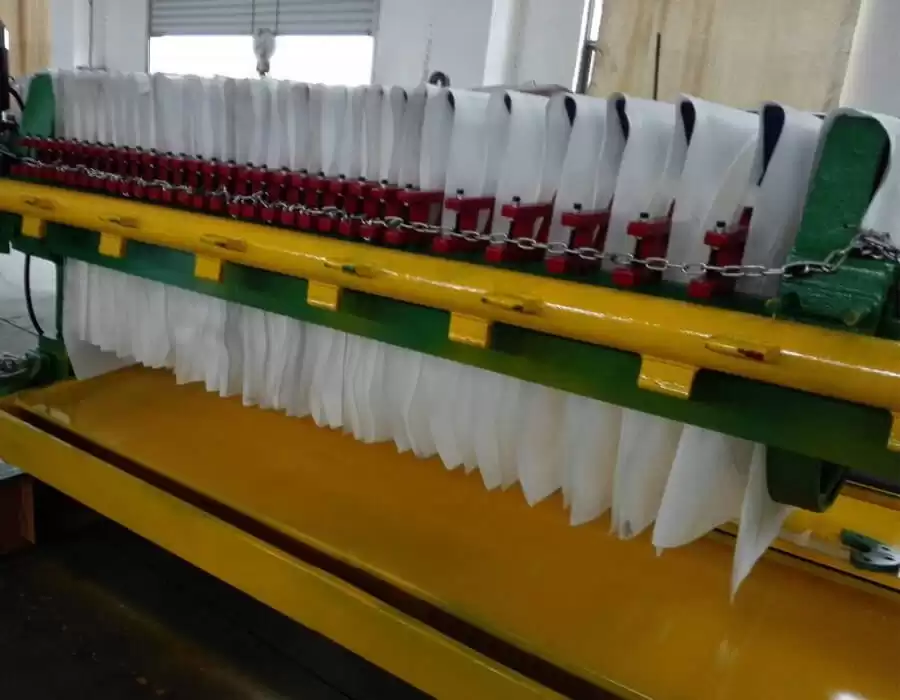

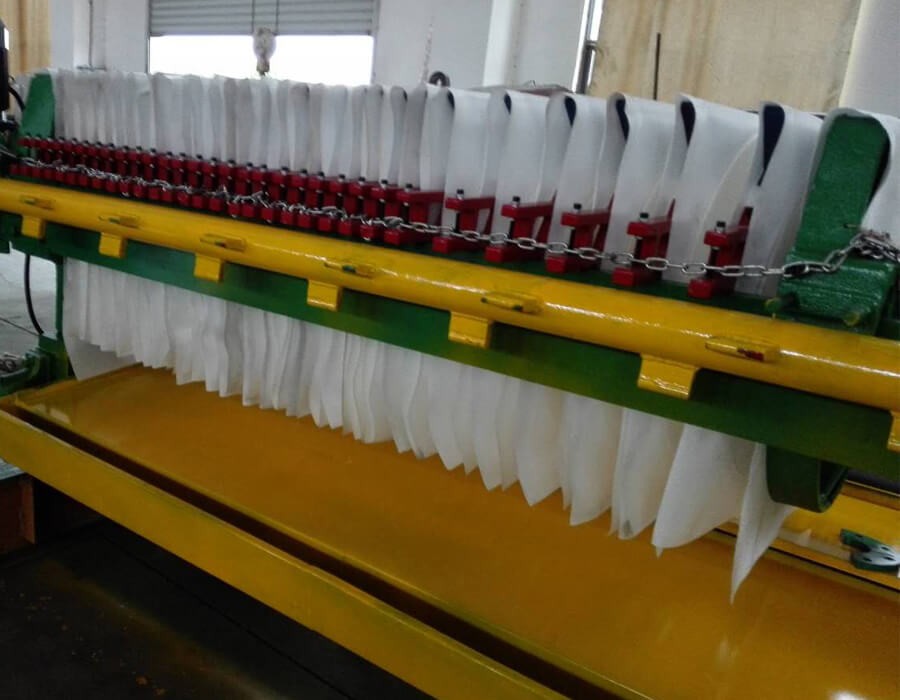

4. It is of automatic plate opening device, opening all the plates by one shift.
5. It is of automatic shaking device, discharging filtered cakes automatically
6. Customer could also choose the automatic water collector
How Filter Press Works:
Ceramic plunger pump transports the slurry into the filter press from the feeding head, the chambers created by the plates are filled up with the slurry, the cloth (specifically developed for each material) and the high pressure dry the cakes, faster and better. The clean water is discharged into water collector, ready to be reused, and the cakes can now be disposed of easily.
Filter Press Application
Mining, Washed Coal, Waste water Treatment(Ceramic, marble, granite, glass and so on) , Kaolin, Clay, Sand Washing and other solid-liquid separation.
Filter Press Technical Parameters：
Model | Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) | Weight (kg) |
L | W | H |
KJWYB650-30 | 20 | 650 | 50 | 7.5 | 30 | 300 | ≤1.5 | 6800 | 1300 | 1200 | 4000 |
KJWYB1000-30 | 40 | 920 | 60 | 7.5 | 30 | 540 | 7700 | 1600 | 1500 | 6000 |
Plates could be added or reduced according to customer’s requirements.
Other Introduction:
Our company could help customer to design wastewater treatment flow.
Our company is the main machineries supplier for clay project of Dalian Insulator Group Co., Ltd., Fujian Guanfu Modern Household Wares Co.,Ltd., Fujian Jinjiang Wanli Ceramics Industry Co., Ltd., Huihuang Plumbing Group Co. ,Ltd. etc. For the stone wastewater treatment, our company is also the tier one suppliers for stone wastewater treatment of Liven Stone, Xishi Group, Kangli Stone Group, Huahui Stone etc.
