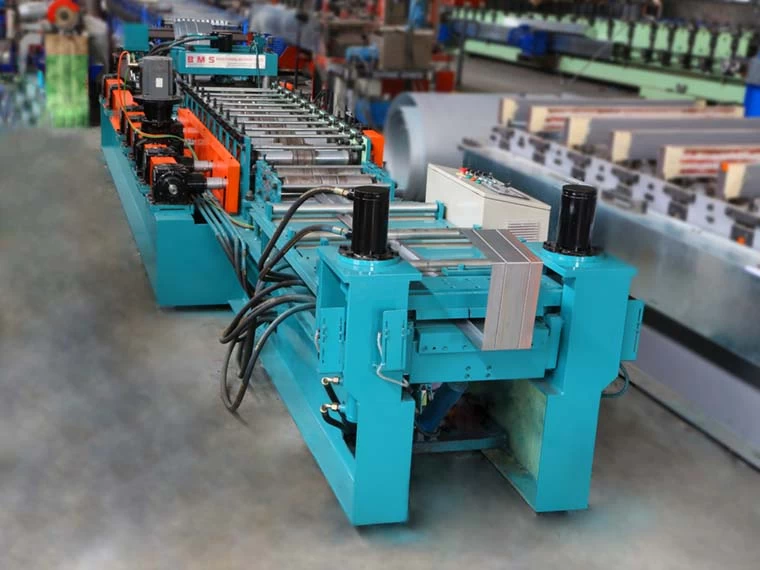

Automatic Fire Damper Frame Roll Forming Machine
Click here to check the machine video: Automatic Fire Damper Frame Roll Forming Machine
1.Main features of automatic fire damper frame roll forming machine
The advantages of automatic fire damper frame roll forming machine are as follows:
1.Gearbox driving,for high accurancy forming and stable long-life working
2.Fully Automatic forming and bending, all steps only need one person. save and lower labor cost.
3.First time in China,Made with Taiwan Technology but China Price.
4.One machine for multi-profiles: any frame within range from 150mm*150mm to 1800mm*1800mm,
with thickness 0.8-1mm for GI(galvanized steel) or SS(stainless steel)
2.Detailed Images of automatic fire damper frame roll forming machine
Machine Parts

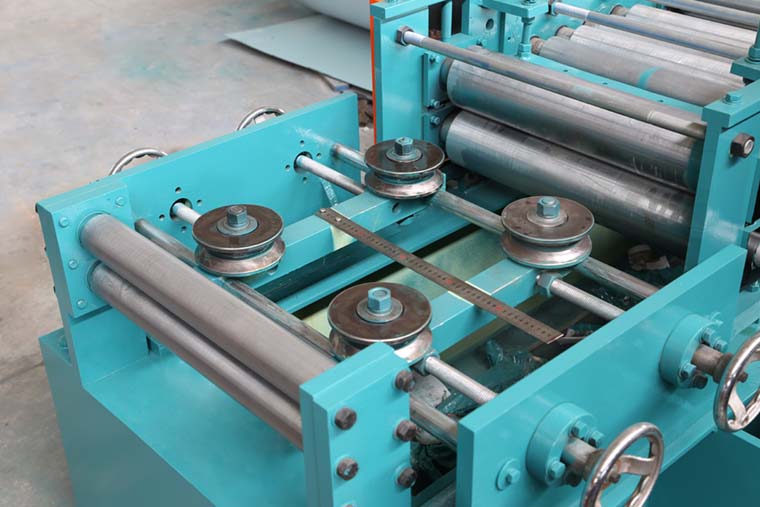

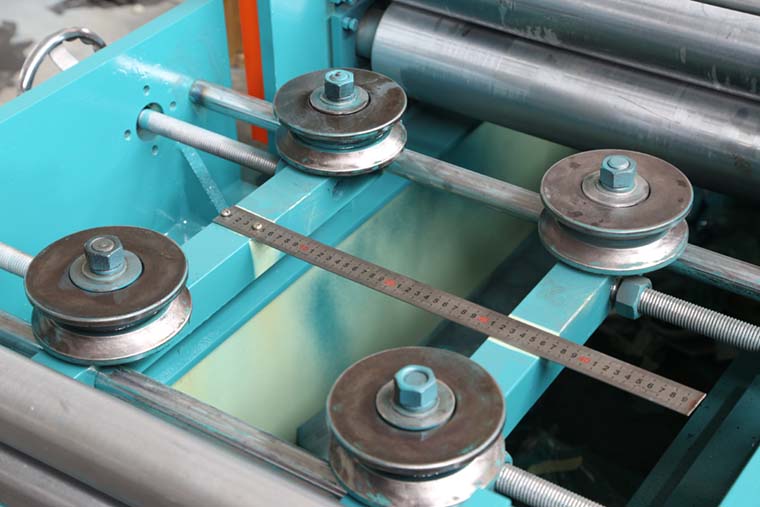

1) Automatic fire damper frame roll forming machine feeding guide
Brand: BMS Original: China
With hand wheels and measuring scale for easy control of the feeding material width finely

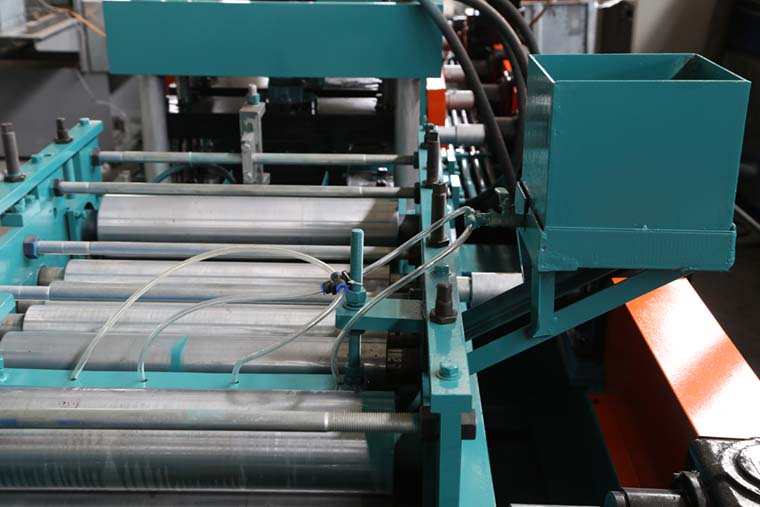

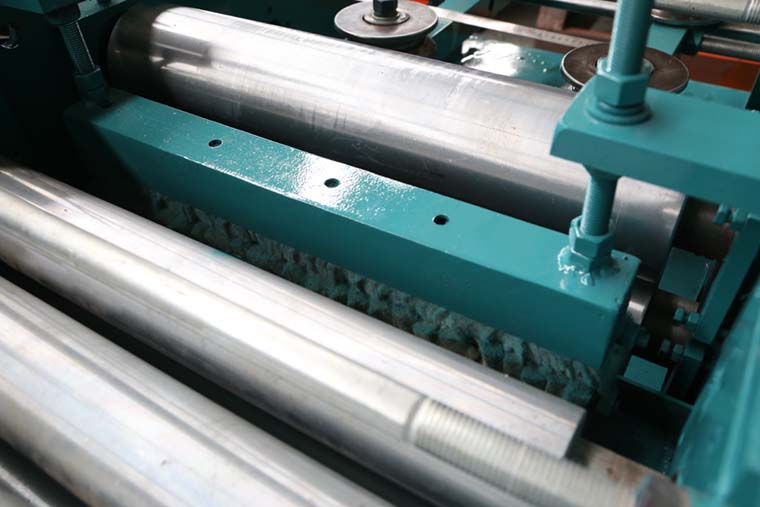

2) Automatic fire damper frame roll forming machine Lubrication device
Make material feeding more smoothly and clean rollers

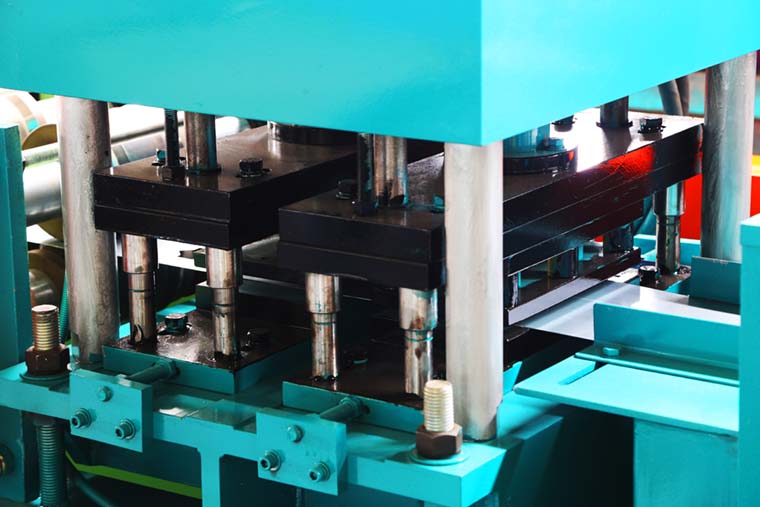

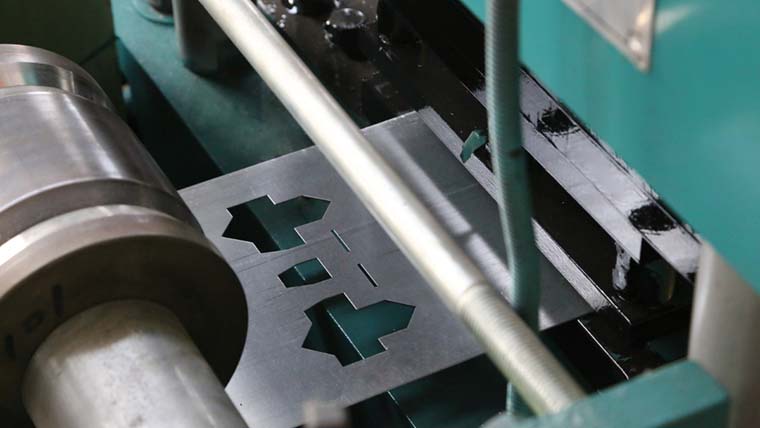

3) Automatic fire damper frame roll forming machine punching device
Three-cylinder punching with four punching molds.

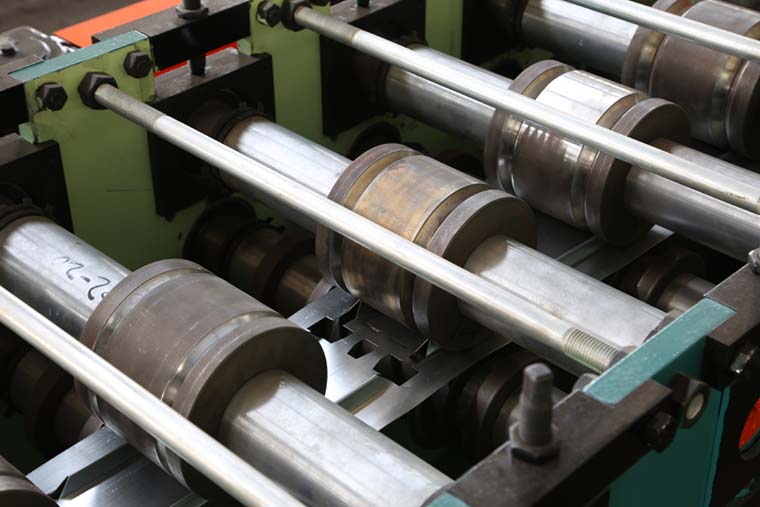

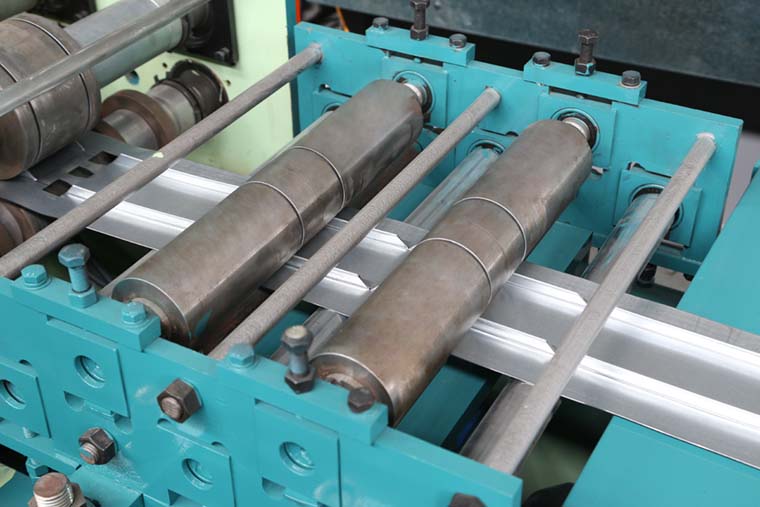

4) Automatic fire damper frame roll forming machine rollers
Rollers manufactured from high quality steel Cr12MOV, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body frame made from 400# H type steel by welding

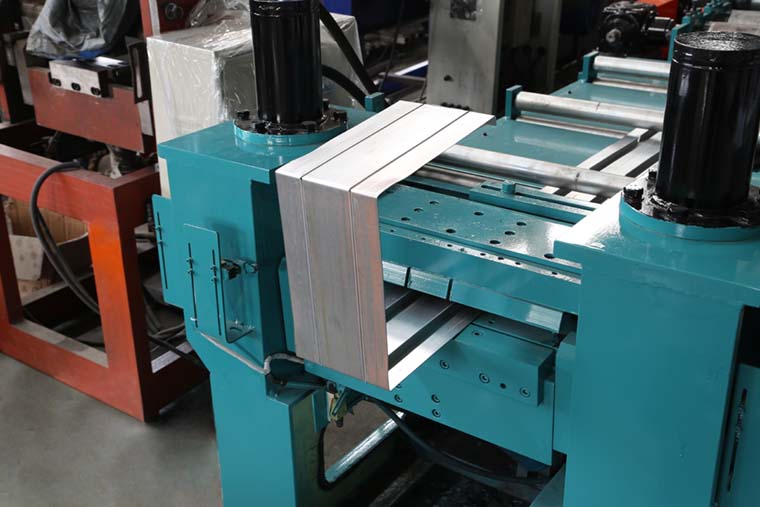

3) Automatic fire damper frame machine hydraulic bending and cutting device
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

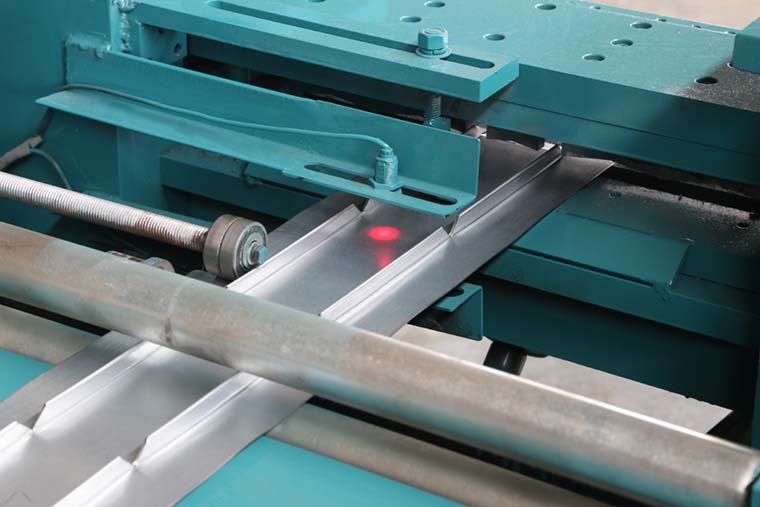

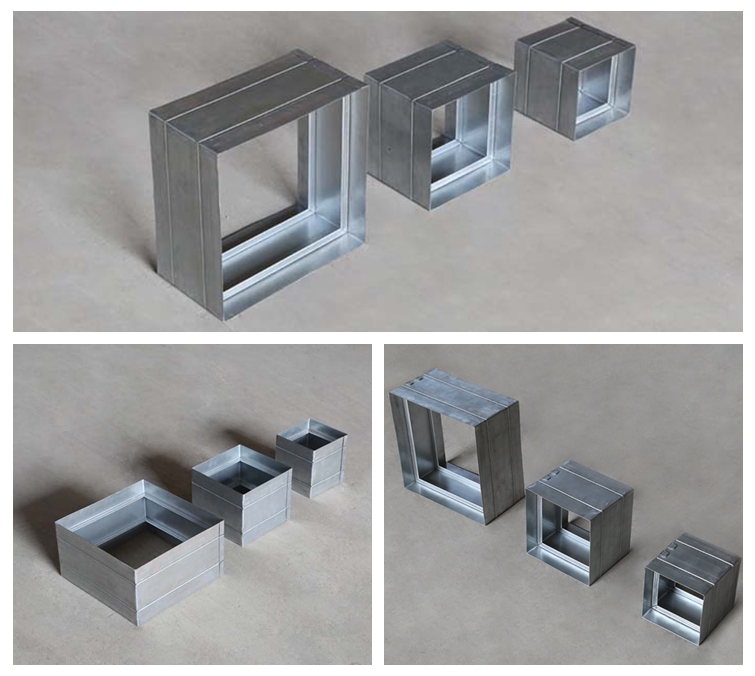

4) Automatic fire damper frame roll forming machine sample display

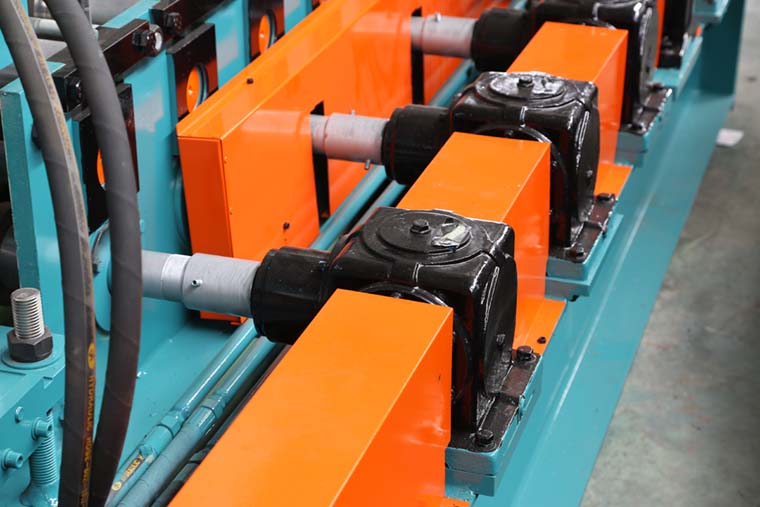

5) Automatic fire damper frame roll forming machine gearbox driving device

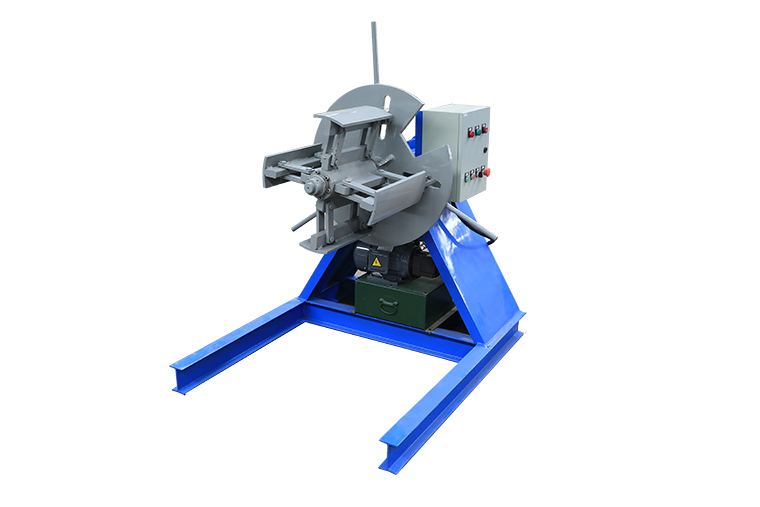

6) Automatic fire damper frame roll forming machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 508mm, coil ID range 470mm±30mm
Capacity: Max. 3 Ton
With 3 tons hydraulic decoiler for option
Other details of Automatic fire damper frame roll forming machine
Suitable for material with thickness 0.8-1.0mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gearbox driving transmission, 10 steps to form

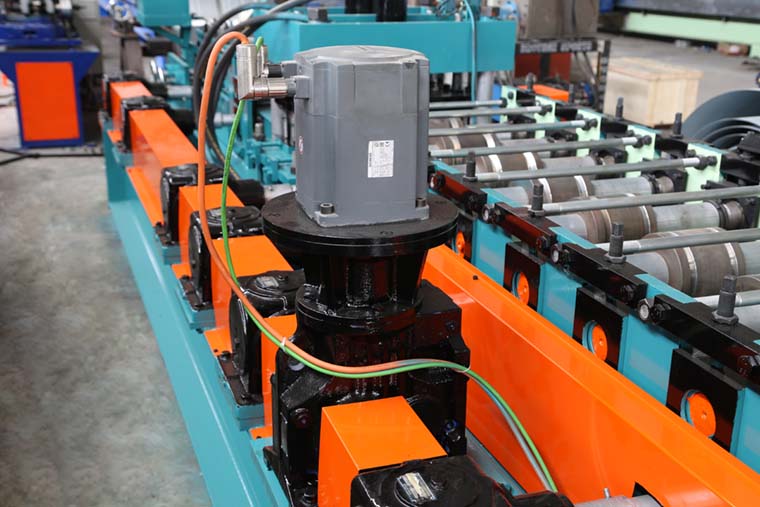

Main Siemens Servo motor=5KW , Frequency speed control. Forming speed approx.12-15m/min

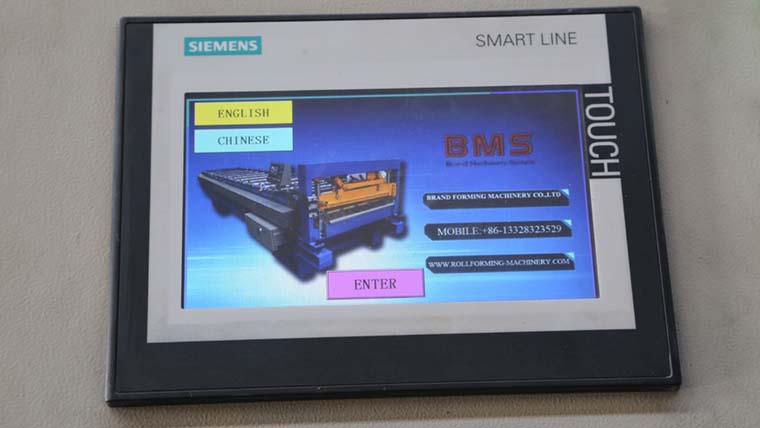

PLC Control System (Touch screen brand:German Siemens ,
Inverter brand:German Siemens, Encoder brand:Japan Koyo/Omron)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of fire damper frame roll forming machine
1. The warranty of fire damper frame roll forming machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
