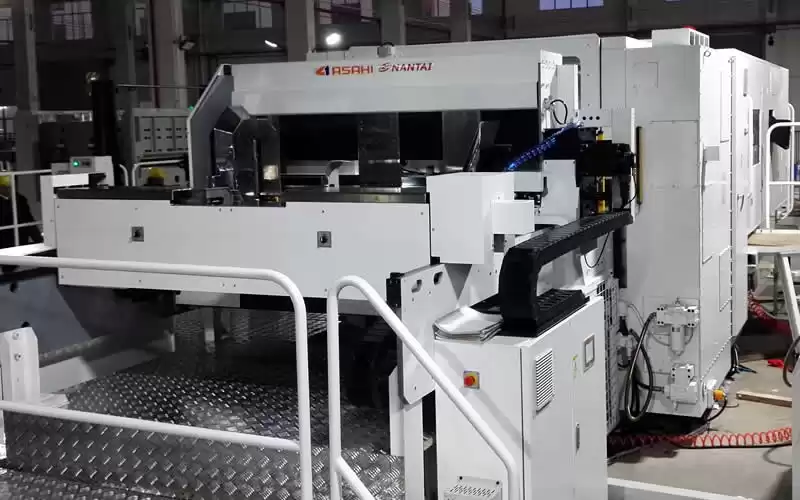

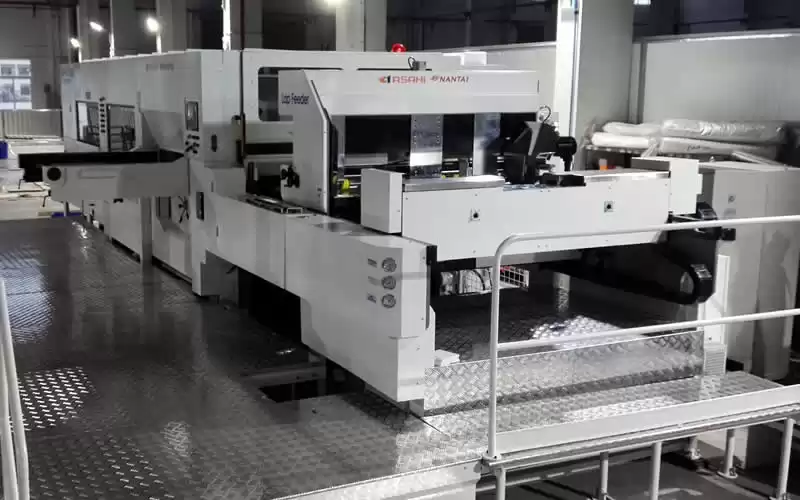

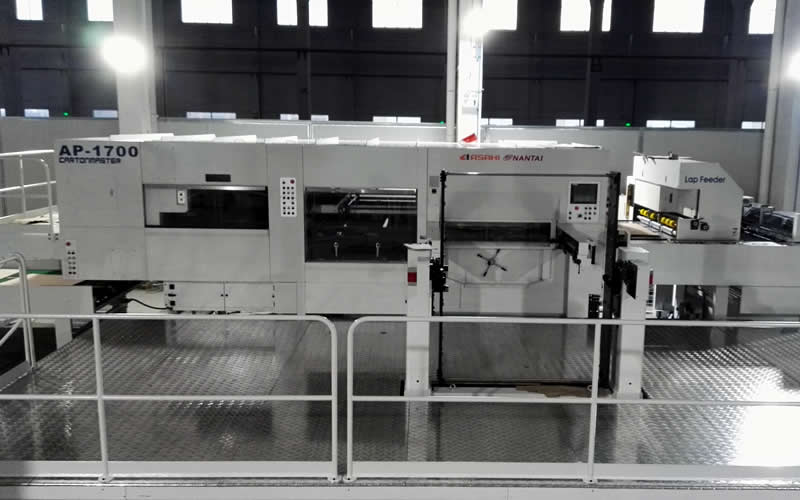

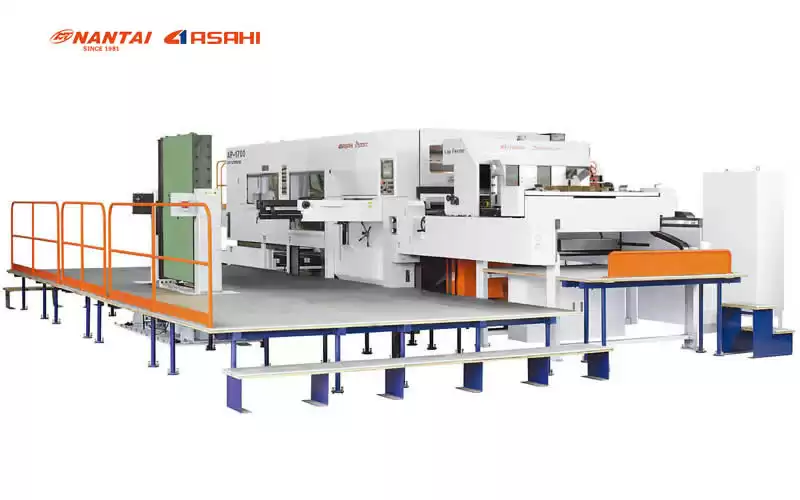

Automatic Flatbed Die-cutter AP-1700LF

Original Japaness Asahi technology and parts, long working life and stable running to produce perfect die cut product for the end user.



Automatic Flatbed Die-cutter AP-1700LF

Model AP-1700LF
Paper size 1300X1700mm
Minimum paper size  500X700mm
Maximum die cutting size 1280X1680mm
Standard bite 15(±5)mm
Frame size 1350X1740mm
Die cutting pressure 350tons
Corrugated paper thickness 1-9mm
Maximum die cutting speed 5750i.p.h
Total power consumption 60KW
Total Weight 50tons

Features in Performance
  • Exclusively for laminated board and corrugated board with the newest servo-drive feeding system.
  • Accurate die-cutting from E flute to AB fute.
  • Completed stripping is by stripping system and grip edge waste removal device.
  • Excellent adaptability for small and big production.
  • Reliable safety performance and dual safety security device designed. (Air brake and power-off shutdown devices.)
  • All operation is on the exterior of the machine.
  • High Productivity, Precise Die-cutting, Precise Creasing, Smooth Stripping and Convenient Operation.

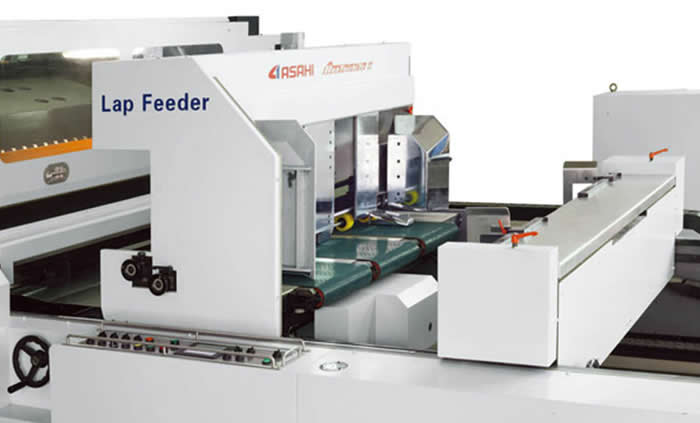

Feeding Section

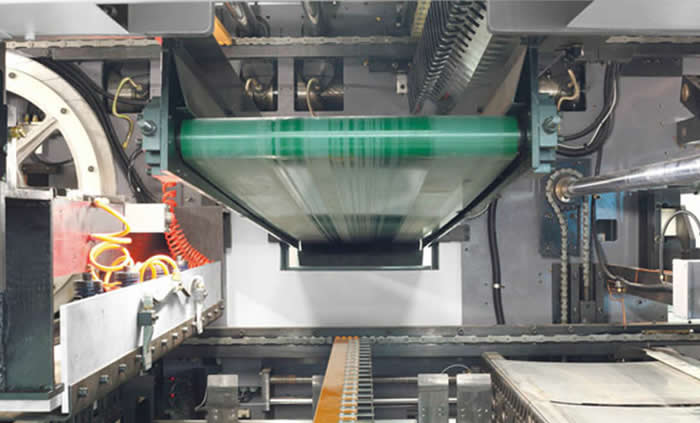

  • The newest servo-drive and vacuum suction belt feeding system (lead edge feeding type) guarantees the smooth feeding of large size cardboard and improves the operation and production ability. Highly precise feeding without damaging the cardboard strength.
  • Suitable for all kinds of paper, and data setting can be adjusted on the touch screen.
  • Big size front and side baffles make cardboard at right position, providing high die-cutting precision.
  • Paper leveling device is specially designed for bent cardboard, stopping cardboard cover the front baffle.

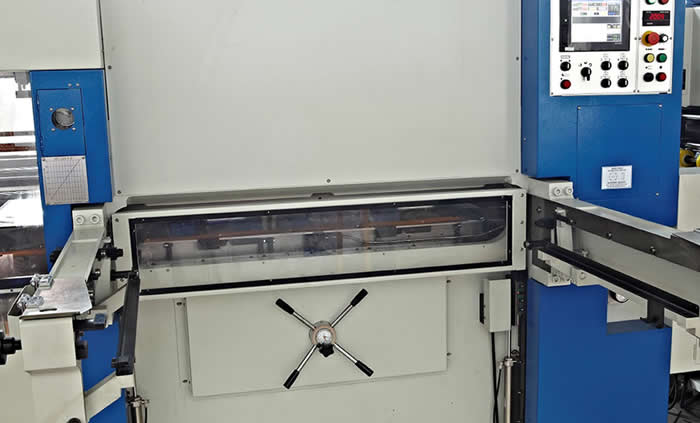

Press Section

  • Steady die-cutting performance guarantees the high precision. Strong and reliable high speed driven guarantees the smooth running of gripper bar.
  • Die-cutting frame locking structure, the die-cutting steel plate is used air reducer to reduce the weight, easy control. With transducer to prevent the plate in wrong position which resulting defects brought by deflected creasing line.
  • Die-cutting positioning device can realize quick locating and higher accuracy of die-cutting.
  • The hardness die-cutting steel plate can be installed easily and quickly.



Tansmission and lubrication system

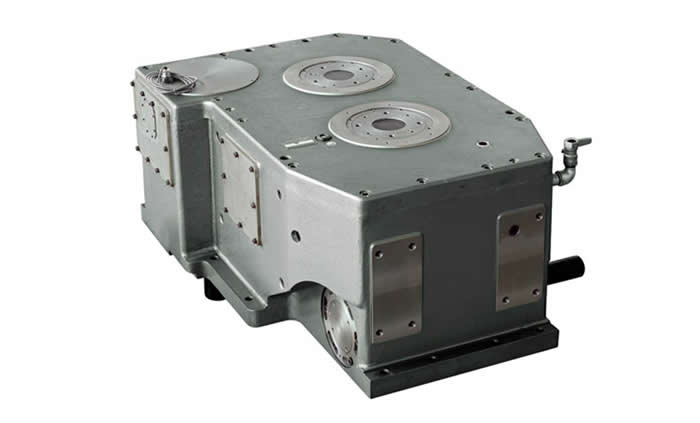

  • Transmission adopts Sankyo cam box (graduator) and safety cluth, can adjust the movement of each part accurately. It has the characteristics of accurate indexing, stable performance and durability.
  • mported oil cooling device from Japan guarantees that machine parts protected by oil film can operate well.
  • The gear of special crank shaft gear transmission device and force lubrication system are form Osaka Japan that made from accurate high quality alloy steel, and processed by hardening abrasive machining, providing higher precision and strength and wear-resistance, making the mavement of machine smoothly.
  • Forced lubrication system can be oiled from inside of the machine, and maintains a long-term high accuracy, and for longer service life.

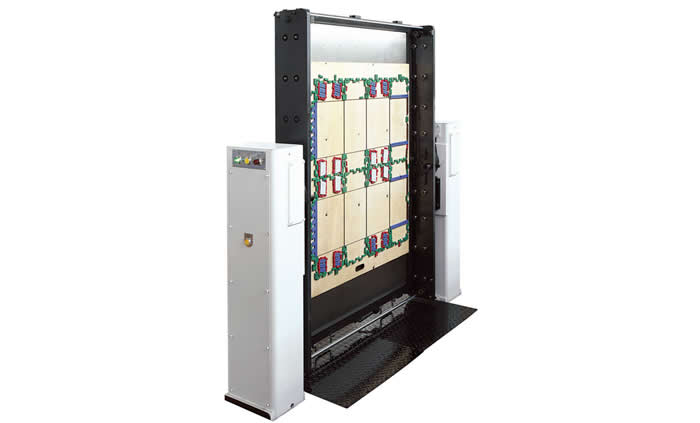

Quick Plate-change (Optional)

  • Alternate replaced plate is optional, realizing non-stoppre-changing plate fuction. Hence, save setting time, improve production efficiency and high safety.

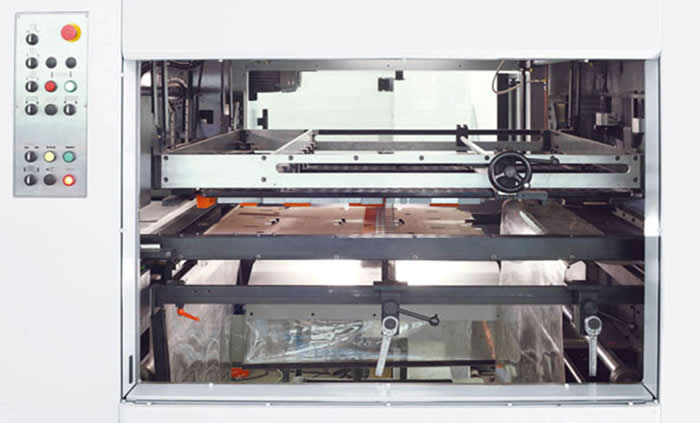

Stripping Section
  • The quick-seeting way of die is adopted; operator can finish the setting from exterior,without entering the machine.

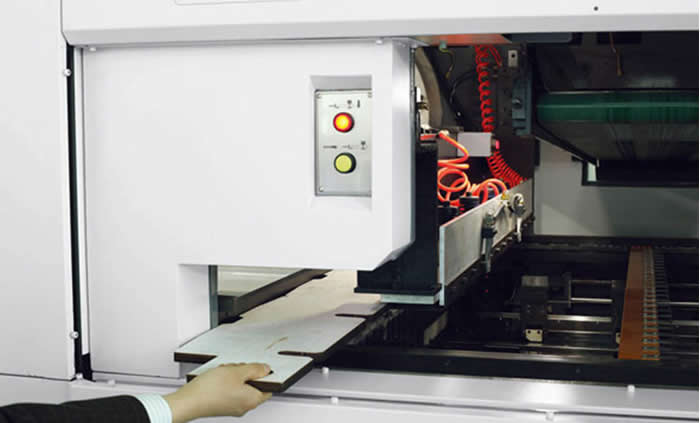

  • Male and female die can be inserted into the machine from operation side to shorten the setup time and for higher safety.
  • Upper and lower frames make the dies succeed in performance. Male and female dies can move up-an-down,making stripping more completely
  • A plastic film is set between die-cutting section and lower frame for stopping paper swerve. It can be adjusted by moving hand crank according to the size on the dies operation direction.



Knock-off Setting

  • Knock-off plate can be set and fixed from operation side, once self-locking by cylinder.



Grip edge waste removal device

  • The grip edge on pin of gripper can be automatically removed and carried out of machine by conveyor belt.

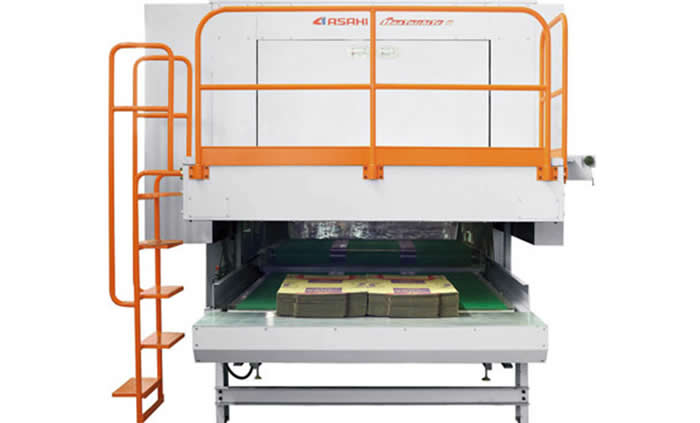

Delively Section
  • Front and back barriers with side aligning device make receiving tidy.
  • Side baffle and back barrier coordinate and can be adjusted by motor based on the size on productiion direction.
  • Delivery platfrom is driven by motor, easy for setting.
  • Temporary receriving device controlled by servo-actuator makes delivery more simple and easy.
