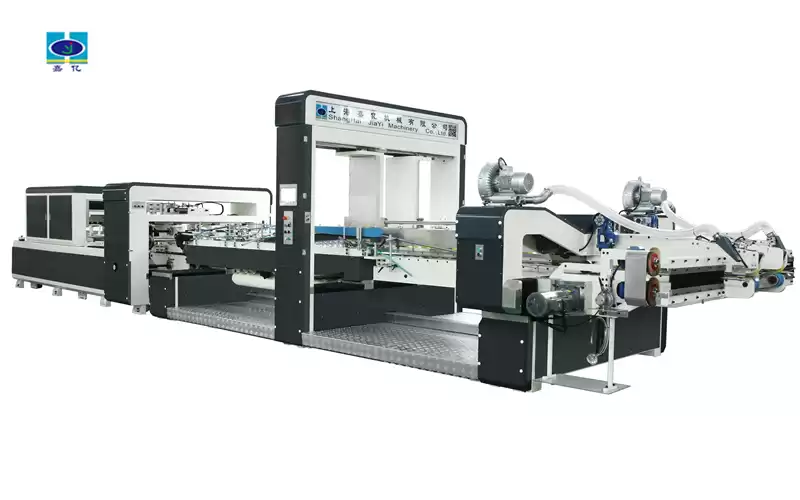

Automatic folder gluer JW B-Type

Main features:

• The feeding unit adopts suction belt feeder. Side baffle can pat the corrugated paperboard.
• The gluing wheel is made of the stainless steel. Gluing pump supply the glue automatically. Glue less alarming and automatic cycle when the machine stops. Easy to be cleaned.
• Upper and down carrier moved by liner guide rail and motorized controlling.
• The pre-creasing wheels are install for the second creasing line.
• The final folding unit adopts the servo motor driving for the precision folding.
• The all belts can be easy to be changed.

Feeding unit

• Side baffle can pat the corrugated paperboard and ensure the feeding precision.
• Automatic belt feeder with many belts to ensure the feeding the cardboard.including the hard cardboard..
• Feeding part adopts high pressure suction system,feeding accurate.

Automatic pump gluing system

• Automatic pump gluing system.glue wheel is made of stainless steel.GLUE pump supply the glue automatically.auto alarm when glue finished.
• Automatic cycle when machine stops and easy to be clean.
• Motorized movement for the glue tank.

Folding unit

• All down carrier are motorized movement.used many motors including servo motor to make sure the cardboard folding.
• Upper creasing wheels to ensure the second creasing. It is 4 pieces and driving by motor.make sure the cardboard inner creasing and outside creasing.especially for the hard cardboard.
• Upper and down carrier moved by liner guide rail.
• Servo motor driving for the outer belts to ensure the folding precision.there are four servo motors.
• Independent frequency inverter motor driving for the final folding unit
• Under guide plate adopts integrated design,with four groups pressing line which drive separately in the guide plate.

Ejector & Counter

• According to PLC touch screen programmer and control by touch screen.
• Input data advance the machine working. Auto detector can output the exact numb
• Counter and the push regulator using pneumatic mode.
• Piling height:stacking number can be set freely from 10-30 pieces.

Technical Data

Line guide rail

• Down and upper carriers are line guide rail with motorized adjusted.
