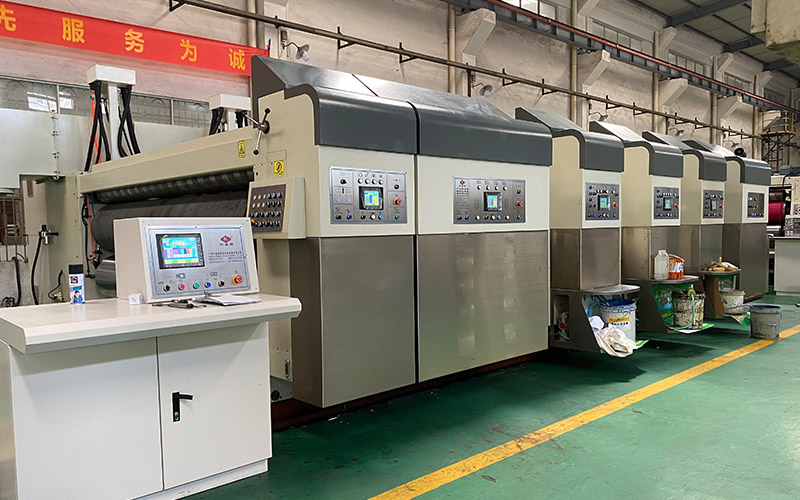

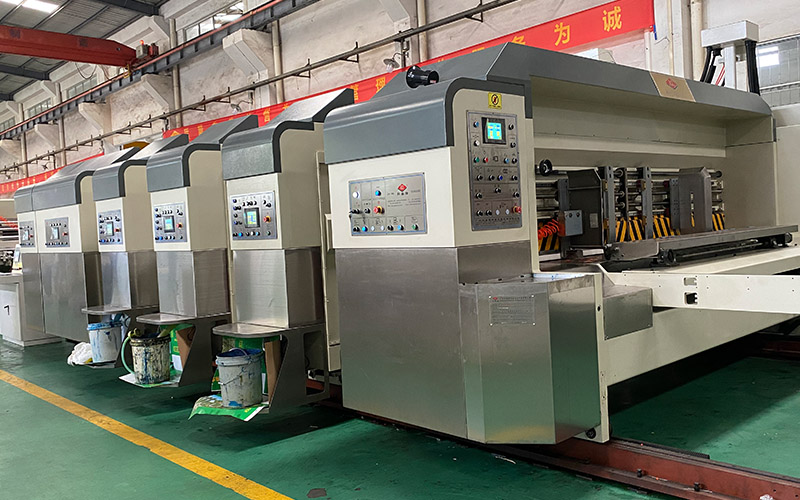

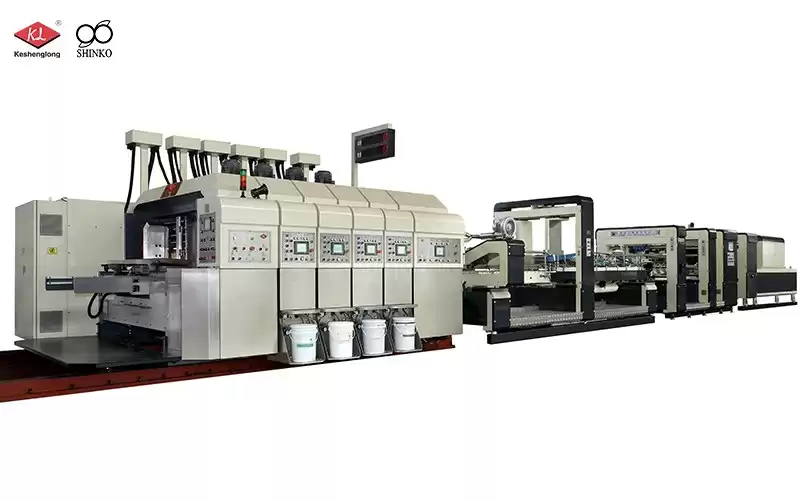

Carton 4 Colours Flexo Printing Machine Features:
1. One-button operation function(test printing with one sheet, regular production can be done.)
2. Equipped with remote diagnosis and maintenance function.
3. This machine is designed and made to high quality and safety standard, with the advantages of high speed, auto control and quick shift.
4. Adopt high quality material and parts. All electronic components conform to CE standard, and safety standard can equal European.
5. Well hardened and ground transmission gear, hardness＞60 HRC.
6. Auto zero return and auto reset.
7. All gaps between cylinders and rollers are computerized and or motorized control.
8. Vacuum transfer system used in printing units.
9. Use expansion sets tight link to reduce abrasion of the shaft, keep precision of the machine for longer time.
10.All cylinders and rollers are chromed plated for ideal hardness.
11.PLC control system with touch screen control.
12.Able to save orders, speed up the order shift.
13.Able to complete both sides printing in one pass.
14.Able to connect to the ERP production management system(optional).
Stitching unit
1. Swing mode of the stitching head. The speed is fast, qualified precision and longer working life.
2. The stitching head is driving by servo motor. It ensures the stitching precision and stable.
3. It can be single stitching, double stitching, double-single double stitching to be setting.
4. The stitching head is with automatic lubrication system. The lubrication time and oil volume can be setting.
5. The stitching heard can move up and down.
6. The stitching unit installed paperboard patching device is controlled by servo motor. It ensures the qualified rectify precision after paperboard folding before stitching. It ensures the stitching precision.
Carton Flexo Printing Machine Model size:
900x2000, 900x2400, 1200x2400, 1200x2800, 1400x2400, 1400x2800, 1600x2800, 1600x3200, 1600x3600.
China Automatic Flexo Printing Machine Max machine speed: 120~300 pcs/min.
