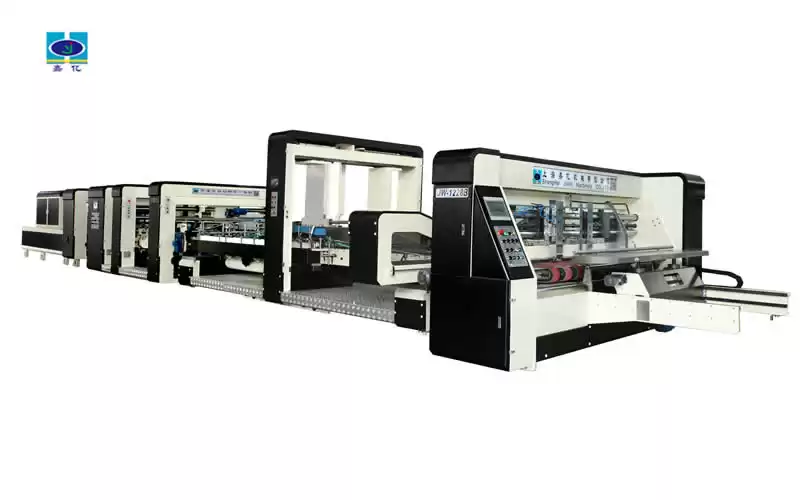

Automatic folder inline gluer and stitcher

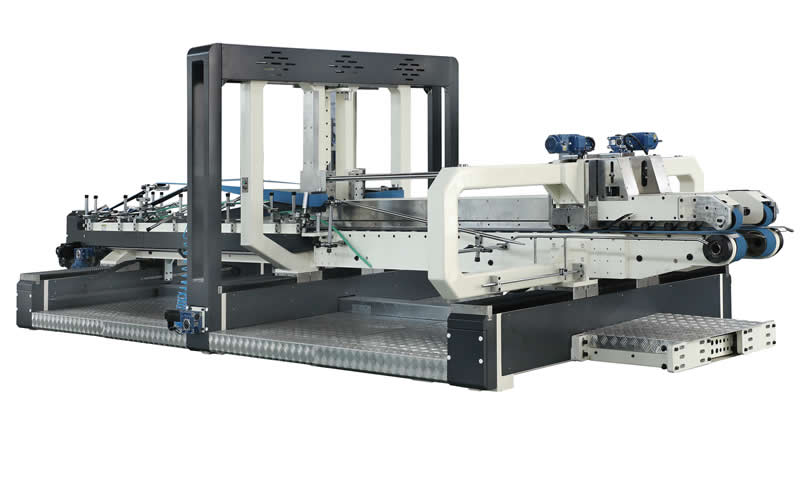

Folding unit

• All down carrier are motorized movement.
• Upper creasing wheels to ensure the second creasing. It is 4 pieces and driving by motor.
• Upper and down carrier moved by liner guide rail.
• Servo motor driving for the outer belts to ensure the folding precision.
• Independent frequency inverter motor driving for the final folding unit
• There are two big vacuum suction pipe for giving the power to the cardboard,when cardboard too heavy or too thin, it can be controlled by the fan power.make sure the cardboard transfer faster and steady.

Automatic pump gluing system

• Automatic pump gluing system.
• Automatic cycle when machine stops and easy to be clean.
• Motorized movement for the glue tank.

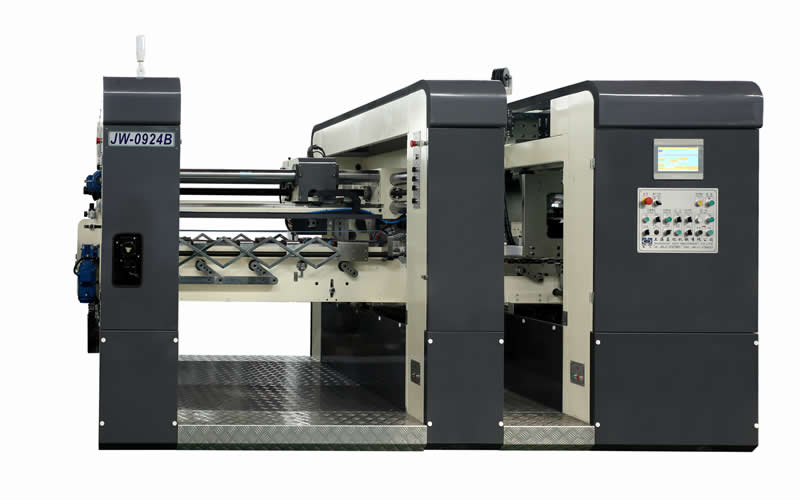

Stitching unit

• Swing mode of the stitching head. The speed is fast, qualified precision and longer working life.
• It can be single stitching, double stitching, to be setting.
• The stitching head is with automatic lubrication system. The lubrication time and oil volume can be setting.
• The stitching heard can move up and down.
• The stitching unit installed paperboard patching device is controlled by servo motor. It ensures the qualified rectify  precision after paperboard folding before stitching. It ensures the stitching precision.

Counter&Ejector

• According to PLC touch screen programmer and control by touch screen.
• Input data advance the machine working. Auto detector can output the exact number.
• Counter and the push regulator using pneumatic mode.
• Piling height: stacking number can be set freely.

Technical Data

Computer Control System

Driving gear

• Made of 20CrMnTi alloy steel, quenched and grinded.
• Six level accuracy（same with the driving gear on saloon car）, running fluently, little noisy,hardness HRC60-63. Hard to wearing within decade, which can keep accurate printing register for long time.
