STC-P60-FT Automatic Food Box Packaging Machine

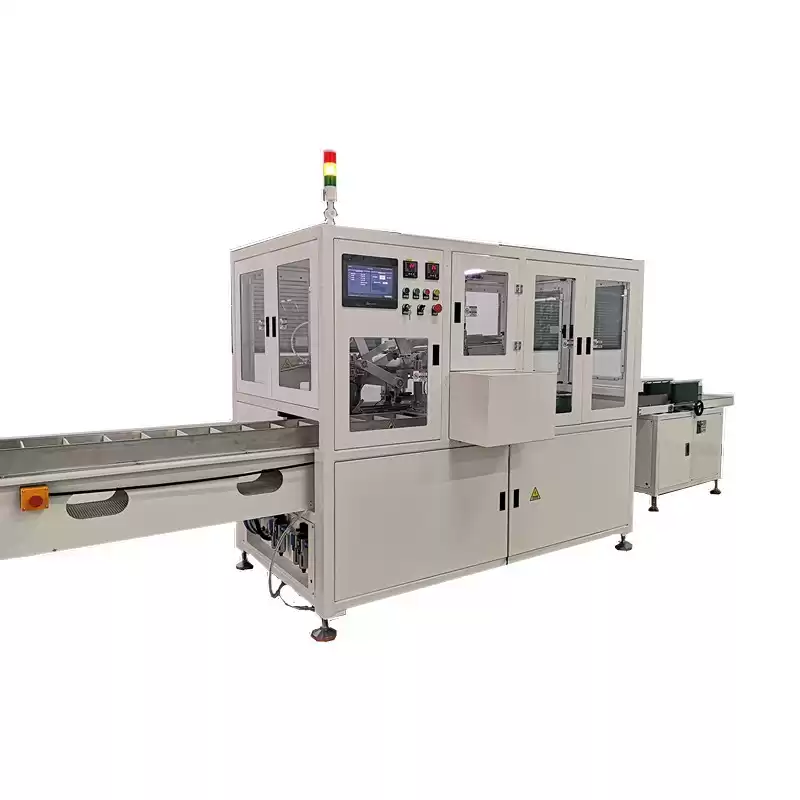

STC-P60-FT Fully Automatic Food Box Packaging Machine is a new type of Fully Automatic Packaging Machine (gluing type, also can be equipped with gluing machine), which is independently developed. It is mainly applicable to the automatic packaging process of food, cosmetics, daily necessities, medicines, stationery, electronics and auto parts. The equipment mainly includes the functions of automatic feeding, automatic opening of boxes, packing of goods, printing code of boxes and so on. The main machine can be used alone, or can form a complete automatic production line, the machine is easy to operate.
Feature
1.The use of 10 - inch touch screen, man-machine interface display operation more clear and simple.
2. PLC automatic control system, frequency conversion speed regulation; Simple structure and easy operation.
3. Using photoelectric automatic detection system, no material no box, to prevent empty box.
4. It can prevent the abnormal condition of material pushing without box by detecting the material without box.
5. Function of fault display, fault alarm, finished product count, etc.
Technical Parameter
|
Packing speed
|
30-60PCS/min（according to product）
|
|
Weight of box
|
250g/m2--450 g/m2
|
|
Product packaging specification
|
L110-230mm；W90-150mm；H30-90mm
|
|
Power
|
12.5Kw
|
|
Package qualification rate
|
≥98%
|
|
DIM
|
3000mm×1250mm×1800mm
|
|
Supply power
|
220V 50HZ
|
|
Air pressure
|
6kg/cm2，120-180L/ min
|
|
Net weight
|
1600Kg
|
Application
